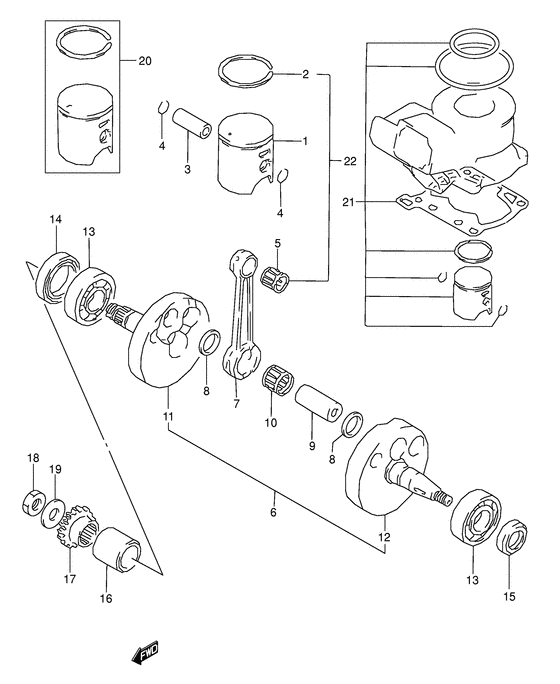

Crankshaft Diagram Suzuki RM80
- Year
- 1997
- Model code
- RM80V(E3/E28) V
- Engine Capacity
- 80
- Model
- RM80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12110-03B00-0F0
PISTON
|
12110-03B00-0F0 |
— | ||
|
2
|
2
12141-02B70-000 RING,PISTONRing, piston |
12141-02B70-000 |
from US $25.58 |
||
|
3
|
3
12151-20910-000 PIN,PISTON |
12151-20910-000 |
from US $7.84 |
||
|
4
|
4
09381-14001-000 PISTON PIN CIRC |
09381-14001-000 |
from US $1.06 |
||
|
5
|
5
09263-14016-000 BEARING(14X18X16)Bearing, piston pin Bearing, piston pin; |
09263-14016-000 |
from US $9.64 |
||
|
6
|
6
12200-03B00-000
CRANKSHAFT ASSY
|
12200-03B00-000 |
— | ||
|
7
|
7
12161-02B52-000
ROD,CONNECTING
|
12161-02B52-000 |
— | ||
|
8
|
8
08211-20252-000 WASHERWasher |
08211-20252-000 |
from US $6.14 |
||
|
9
|
9
12211-02B50-000 PIN,CRANKPin, crank |
12211-02B50-000 |
from US $17.66 |
||
|
10
|
10
09263-20079-000
BEARING(20X26X13.7)
Bearing (20x26x13.7); |
09263-20079-000 |
— | ||
|
11
|
11
12221-03B00-000
Crankshaft, rh
|
12221-03B00-000 |
— | ||
| replacement | |||||
|
11
|
11
12221-03B01-000 CRANKSHAFT,R |
12221-03B01-000 |
from US $113.71 |
||
|
12
|
12
12261-03B00-000
Crankshaft, lh
|
12261-03B00-000 |
— | ||
| replacement | |||||
|
12
|
12
12261-03B01-000 CRANKSHAFT,L |
12261-03B01-000 |
from US $113.71 |
||
|
13
|
13
09262-20082-000 BEARING(20X52X15)Bearing (20x52x15); |
09262-20082-000 |
from US $14.45 |
||
|
14
|
14
09283-30061-000
SEAL,OIL(30X40X7)
Oil seal, rh (30x40x7); |
09283-30061-000 |
— | ||
| replacement | |||||
|
14
|
14
09283-30076-000 Seal,oil(30X40X7)Oil seal, rh (30x40x7); |
09283-30076-000 |
from US $8.64 |
||
|
15
|
15
09283-18006-000 SEAL,OIL(18X30X6)Oil seal, lh (18x30x6) Oil seal, lh (18x30x6); Model t/v/w |
09283-18006-000 |
from US $11.36 |
||
|
15
|
15
09283-18007-000
SEAL,OIL(18X30X7)
Oil seal, lh (18x30x6); Model x |
09283-18007-000 |
— | ||
| replacement | |||||
|
15
|
15
09283-18010-000 Seal,oil(18X30X7)Oil seal, lh (18x30x6); Model x |
09283-18010-000 |
from US $6.72 |
||
|
16
|
16
12359-27C30-000 SPACER,PRIMARY DRIVE GEARSpacer, pri drive gear; |
12359-27C30-000 |
from US $9.64 |
||
|
17
|
17
21111-02B40-000
Gear, primary drive (nt:18)
~e.no.112115 |
21111-02B40-000 |
— | ||
| replacement | |||||
|
17
|
17
21111-02B41-000 GEAR,PRIMARY DRIVE(NT:18)Gear, primary drive (nt:18) ~e.no.112115 |
21111-02B41-000 |
from US $30.73 |
||
|
17
|
17
21111-02B41-000 GEAR,PRIMARY DRIVE(NT:18)Gear, primary drive (nt:18) Gear, primary drive (nt:18); E.no.112116~ |
21111-02B41-000 |
from US $30.73 |
||
|
18
|
18
09140-16019-000 NUT |
09140-16019-000 |
from US $5.92 |
||
|
19
|
19
09164-16002-000 WASHERPr dvn gear washer Washer; |
09164-16002-000 |
from US $5.07 |
||
|
20
|
20
12100-03B00-050 PISTON SET(OS:0.5)Piston set (os:0.5) Piston set (os:0.5); Opt e3,e33 |
12100-03B00-050 |
from US $94.22 |
||
|
20
|
20
12100-03B00-100
PISTON SET(OS:1.0)
Piston set (os:1.0); Opt e3,e33 |
12100-03B00-100 |
— | ||
|
21
|
21
12100-03830-000
TOP END KIT,ENGINE
Top end kit, engine (std); Opt e3,e33 |
12100-03830-000 |
— | ||
|
21
|
21
12100-03830-050
Top end kit, engine (os:0.5)
Top end kit, engine (os:0.5); Opt e3,e33 |
12100-03830-050 |
— | ||
|
22
|
22
12100-03810-000
PISTON KIT
Piston kit (std); Opt e28 |
12100-03810-000 |
— | ||
|
22
|
22
12100-03810-050
PISTON KIT(OS:0.5)
Piston kit (os:0.5); Opt e28 |
12100-03810-050 |
— | ||
|
22
|
22
12100-03810-100
PISTON KIT(OS:1.0)
Piston kit (os:1.0); Opt e28 |
12100-03810-100 |
— | ||
