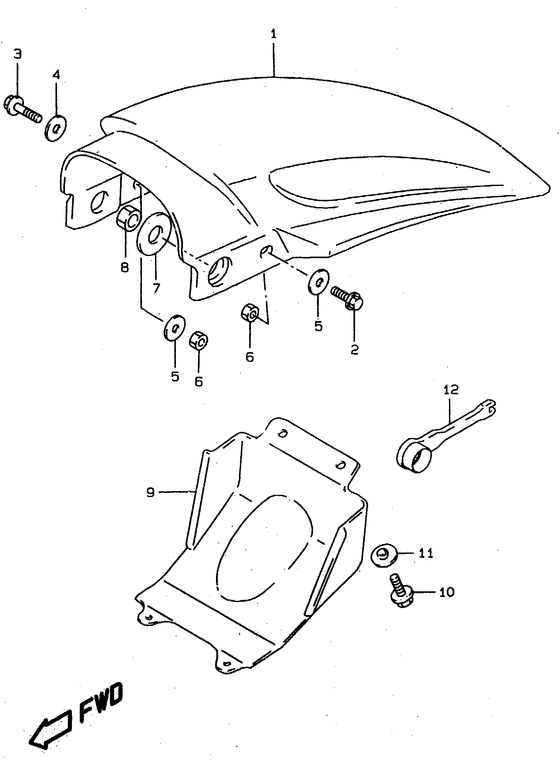

Rear fender Diagram Suzuki RM80
- Year
- 1997
- Model code
- RM80XV(T/V/W) V
- Engine Capacity
- 80
- Model
- RM80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-03B00-25Y
FENDER,RR
Fender, rear (yellow); |
63111-03B00-25Y |
— | ||
|
2
|
2
01547-06163-000
Bolt (green)
Bolt, lh; |
01547-06163-000 |
— | ||
| replacement | |||||
|
2
|
2
01547-0616B-000 BOLTBolt, lh; |
01547-0616B-000 |
from US $0.76 |
||
|
3
|
3
01547-06303-000
Bolt
Bolt, rh; |
01547-06303-000 |
— | ||
| replacement | |||||
|
3
|
3
01547-0630B-000 BOLTBolt Bolt, rh; |
01547-0630B-000 |
from US $0.96 |
||
|
4
|
4
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
5
|
5
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
6
|
6
09160-10006-000 WasherModel t/v |
09160-10006-000 |
US $2.10 |
||
| replacement | |||||
|
6
|
6
09160-10501-000 WASHER(10.5X30X2.3)Washer, upper, outer Model t/v |
09160-10501-000 |
from US $1.08 |
||
|
6
|
6
09160-10501-000 WASHER(10.5X30X2.3)Washer, upper, outer Washer, inner; Model w |
09160-10501-000 |
from US $1.08 |
||
|
7
|
7
09159-10027-000 NUT |
09159-10027-000 |
from US $1.98 |
||
|
8
|
8
63351-03B00-000 MUDGUARD,RR FENDER FRMud guard, rear fender front |
63351-03B00-000 |
from US $16.08 |
||
|
9
|
9
01547-06103-000
Bolt
|
01547-06103-000 |
— | ||
| replacement | |||||
|
9
|
9
01547-0610B-000 BOLTBolt, cover |
01547-0610B-000 |
from US $0.77 |
||
|
10
|
10
09169-06010-000 WASHERWasher, inner Washer; |
09169-06010-000 |
from US $1.98 |
||
