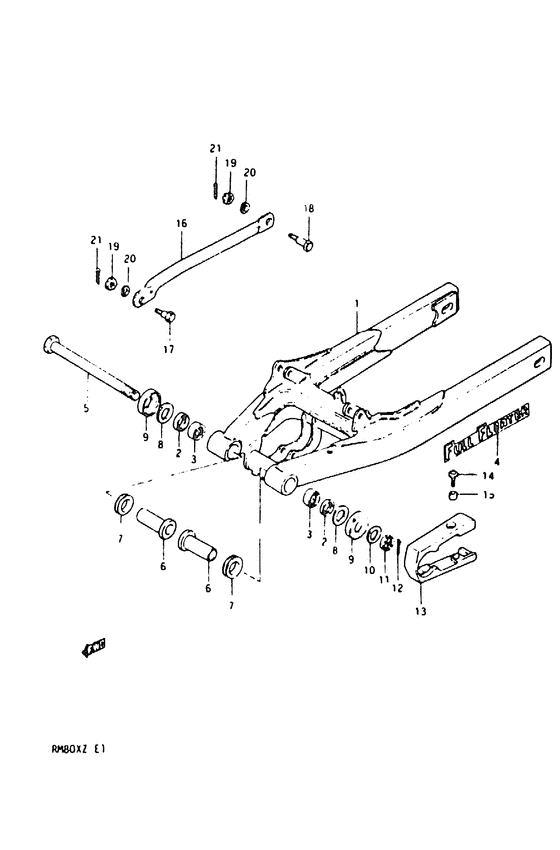

Rear swinging arm Diagram Suzuki RM80
- Year
- 1982
- Model code
- RM80XZ Z
- Engine Capacity
- 80
- Model
- RM80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-20400-08C
Rear swinging arm set
|
61000-20400-08C |
— | ||
|
2
|
2
09285-17001-000
SEAL,OIL(17X24X3)
Oil seal; |
09285-17001-000 |
— | ||
| replacement | |||||
|
2
|
2
09285-17007-000 Seal,oilOil seal; |
09285-17007-000 |
from US $1.68 |
||
|
3
|
3
09263-17011-000
Bearing
|
09263-17011-000 |
— | ||
| replacement | |||||
|
3
|
3
09263-17027-000 BEARING(17X24X20)Bearing, center (17x24x20) |
09263-17027-000 |
from US $10.80 |
||
|
4
|
4
68381-20400-000
Emblem
|
68381-20400-000 |
— | ||
|
5
|
5
61211-20400-000
Shaft rr swing
|
61211-20400-000 |
— | ||
|
6
|
6
61251-20400-000
SPACER,RR SWGARM PIVOT
|
61251-20400-000 |
— | ||
|
7
|
7
09286-17001-000 SEAL,OIL(17X24X5) |
09286-17001-000 |
from US $2.80 |
||
|
8
|
8
08211-12281-000 WASHER |
08211-12281-000 |
from US $3.47 |
||
|
9
|
9
61262-41500-000
COVER,RR SWGARM DUST SEAL
|
61262-41500-000 |
— | ||
| replacement | |||||
|
9
|
9
61262-41501-000
Cover
|
61262-41501-000 |
— | ||
|
10
|
10
08322-11128-000
Washer
|
08322-11128-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01127-000 WASHERWasher, neutral sw |
08322-01127-000 |
from US $0.80 |
||
|
11
|
11
08314-41128-000
Nut
|
08314-41128-000 |
— | ||
| replacement | |||||
|
11
|
11
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
04111-20308-000
20 x 30 cotter
Cotter pin; |
04111-20308-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-2030A-000 PINCotter pin; |
04111-2030A-000 |
from US $2.04 |
||
|
13
|
13
61273-20400-000
Buffer, chain difence
|
61273-20400-000 |
— | ||
|
14
|
14
61275-40200-000
Screw
|
61275-40200-000 |
— | ||
|
15
|
15
09180-05015-000
Spacer
5.5*8*4 |
09180-05015-000 |
— | ||
| replacement | |||||
|
15
|
15
09180-05046-000 SPACER(5.5X8X4)5.5*8*4 |
09180-05046-000 |
from US $3.42 |
||
|
16
|
16
64311-20300-08C
Torque link rea
Torquc rink, rear; |
64311-20300-08C |
— | ||
|
17
|
17
09111-08015-000 BOLT(8X22)Bolt, front (8x22) Bolt, front; |
09111-08015-000 |
from US $1.61 |
||
|
18
|
18
09111-08048-000 BOLT(8X21)Bolt, rear |
09111-08048-000 |
from US $3.43 |
||
|
19
|
19
09140-08008-000 NUTNut |
09140-08008-000 |
from US $0.91 |
||
|
20
|
20
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
21
|
21
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
21
|
21
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
