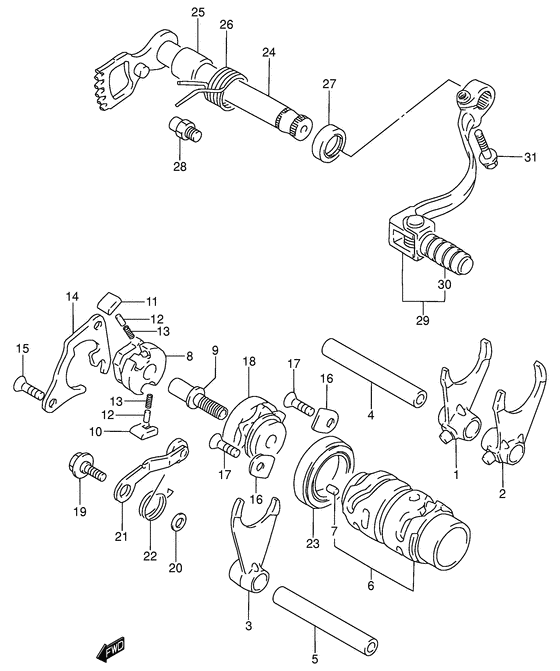

Gear shifting Diagram Suzuki RM80
- Year
- 2000
- Model code
- RM80Y(P3/P28) Y
- Engine Capacity
- 80
- Model
- RM80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-02B41-000 FORK,GEAR SHIFT NO.1Fork, no.1 Fork, no.1; |
25211-02B41-000 |
from US $28.89 |
||
|
2
|
2
25221-02B41-000 FORK,GEAR SHIFT NO.2Fork, no.2 Fork, no.2; |
25221-02B41-000 |
from US $28.89 |
||
|
3
|
3
25231-02B40-000 FORK,GEAR SHIFT NO.3Fork, no.3 |
25231-02B40-000 |
from US $33.60 |
||
|
4
|
4
25411-02B41-000 SHAFT,GEAR SHIFT FORK NO.1Shaft, no.1 (l:90) Shaft, no.1 (l:90); |
25411-02B41-000 |
US $10.82 |
||
|
5
|
5
25421-27C01-000 SHAFT,GEAR SHIFT FORK(L:60)Shaft, gear fork no.2 Shaft, no.2 (l:60); |
25421-27C01-000 |
from US $11.84 |
||
|
6
|
6
25310-03B00-000
CAM,GEAR SHIFT
|
25310-03B00-000 |
— | ||
|
7
|
7
04221-04089-000 PINPin, bal sprocket driven Ï¿½in, shift cam stopper plate; |
04221-04089-000 |
from US $0.76 |
||
|
8
|
8
25322-31310-000 GEAR,GEAR SHIFT CAM DRIVENGear, driven; |
25322-31310-000 |
from US $15.96 |
||
|
9
|
9
25313-27C02-000 PIN,SHIFT CAM DRIVEN GEARPin, shift cam driven gear; |
25313-27C02-000 |
from US $6.40 |
||
|
10
|
10
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 Pawl, no.1; |
25323-34201-000 |
from US $6.56 |
||
|
11
|
11
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 Pawl, no.2; |
25324-34201-000 |
from US $6.56 |
||
|
12
|
12
09261-05003-000 PIN(5X8)Pin Pin (5x8); |
09261-05003-000 |
from US $1.28 |
||
|
13
|
13
09440-04003-000 SPRINGSpring; |
09440-04003-000 |
from US $1.07 |
||
|
14
|
14
25331-27C00-000 LIFTER,GEAR SHIFT POLELifter, pawl Lifter, pawl; |
25331-27C00-000 |
from US $11.37 |
||
|
15
|
15
02122-06123-000
Screw
|
02122-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02122-0612B-000 SCREW |
02122-0612B-000 |
from US $0.77 |
||
|
15
|
15
02122-0612A-000 SCREW |
02122-0612A-000 |
from US $0.77 |
||
|
16
|
16
24741-20A00-000 RETAINER,COUNTER BEARING,RRetainer, cl hsg brg Retainer, shift cam bearing; |
24741-20A00-000 |
from US $1.60 |
||
|
17
|
17
02122-06123-000
Screw
|
02122-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02122-0612B-000 SCREW |
02122-0612B-000 |
from US $0.77 |
||
|
17
|
17
02122-0612A-000 SCREW |
02122-0612A-000 |
from US $0.77 |
||
|
18
|
18
25381-28C20-000
PLATE,SHIFT CAM STOPPER
Plate, stopper; |
25381-28C20-000 |
— | ||
|
19
|
19
09111-06041-000 BOLT(6X14.3)Bolt, sub t/m shift cam Bolt, shift cam stopper; |
09111-06041-000 |
from US $2.38 |
||
|
20
|
20
08211-06121-000 WASHERWasher, shift cam stopper |
08211-06121-000 |
from US $1.47 |
||
|
21
|
21
25350-27C30-000 STOPPER,SHIFT CAMStopper, cam |
25350-27C30-000 |
from US $7.51 |
||
|
22
|
22
09448-18020-000
SPRING
|
09448-18020-000 |
— | ||
|
23
|
23
08140-69050-000 BEARINGBearing, gear shift cam, r Bearing, rh; |
08140-69050-000 |
from US $25.58 |
||
|
24
|
24
25510-28C30-000 SHAFT,GEAR SHIFTShaft, gear shifting Shaft, gear shifting; |
25510-28C30-000 |
from US $45.63 |
||
|
25
|
25
09180-14016-000 SPACER(14X20X17.5)Spacer (14x20x17.5) Spacer (14x20x17.5); |
09180-14016-000 |
from US $3.83 |
||
|
26
|
26
09444-26013-000 SPRINGSpring Spring; |
09444-26013-000 |
from US $1.68 |
||
|
27
|
27
09283-14006-000 SEAL,OIL(14X22X6)Oil seal (14x22x6); |
09283-14006-000 |
from US $2.88 |
||
|
28
|
28
25671-01000-000
Change arm stop
Stopper, arm; Model y |
25671-01000-000 |
— | ||
| replacement | |||||
|
28
|
28
25671-01011-000 STOPPER,GEAR SHIFT ARMStopper, arm; Model y |
25671-01011-000 |
from US $1.92 |
||
|
28
|
28
25671-01011-000 STOPPER,GEAR SHIFT ARMStopper, arm; Model k1 |
25671-01011-000 |
from US $1.92 |
||
|
29
|
29
25600-02B43-000
Lever, gear shifting
|
25600-02B43-000 |
— | ||
| replacement | |||||
|
29
|
29
25600-02B44-000 LEVER ASSY,GEAR SHIFT |
25600-02B44-000 |
from US $56.30 |
||
|
30
|
30
25652-27C00-000
RUBBER,GEAR SHIFT PEDAL
Ï¿½ubber, gear shift pedal; |
25652-27C00-000 |
— | ||
| replacement | |||||
|
30
|
30
25652-27C01-000 Rubber,gear Shift PedalÏ¿½ubber, gear shift pedal; |
25652-27C01-000 |
US $47.20 |
||
|
31
|
31
01547-06303-000
Bolt
|
01547-06303-000 |
— | ||
| replacement | |||||
|
31
|
31
01547-0630B-000 BOLTBolt |
01547-0630B-000 |
from US $0.91 |
||
