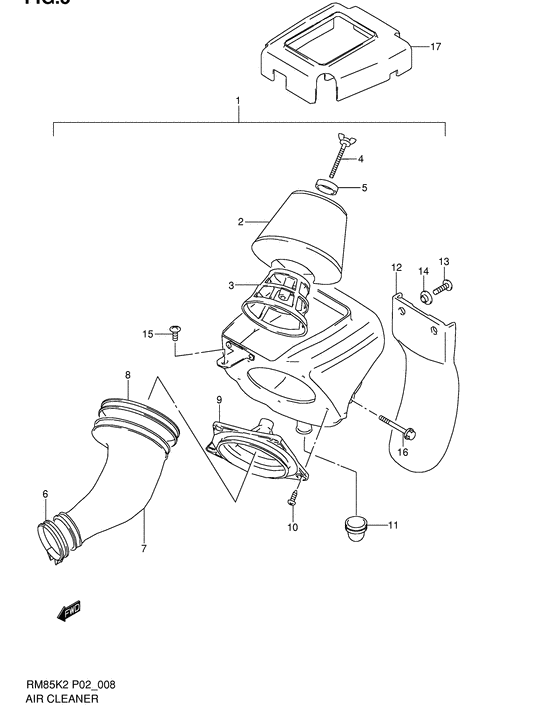

Air cleaner Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-03B00-000
CLEANER ASSY,AIR
|
13700-03B00-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-03B01-000 Cleaner Assy,air |
13700-03B01-000 |
from US $176.64 |
||
|
2
|
2
13780-02B00-000 FILTER ASSYFilter |
13780-02B00-000 |
from US $32.80 |
||
|
3
|
3
13791-02B00-000 HOLDERHolder, filter |
13791-02B00-000 |
from US $10.82 |
||
|
4
|
4
13831-02B00-000 BOLT,WING |
13831-02B00-000 |
from US $2.72 |
||
|
5
|
5
13792-13A01-000 WASHER,AIR CLEANERWasher |
13792-13A01-000 |
from US $1.92 |
||
|
6
|
6
09402-56208-000
Clamp
Clamp; |
09402-56208-000 |
— | ||
| replacement | |||||
|
6
|
6
09402-56901-000 CLAMPClamp; |
09402-56901-000 |
from US $2.28 |
||
|
7
|
7
13881-03B00-000
TUBE,OUTLET
|
13881-03B00-000 |
— | ||
| replacement | |||||
|
7
|
7
13881-03B01-000 Tube,outlet |
13881-03B01-000 |
from US $24.29 |
||
|
8
|
8
09402-00303-000 CLAMP |
09402-00303-000 |
from US $4.99 |
||
|
9
|
9
13790-02B10-000 BASE,FILTER |
13790-02B10-000 |
from US $11.92 |
||
|
10
|
10
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
13873-18900-000
HOSE,AIR CLEANER DRAIN
Tube, drain; |
13873-18900-000 |
— | ||
|
12
|
12
13738-02B00-000 GUARD,MUDGuard, mud Mud guard; |
13738-02B00-000 |
from US $11.37 |
||
|
13
|
13
02142-06167-000 SCREWScrew Screw; |
02142-06167-000 |
from US $0.76 |
||
|
14
|
14
13838-02B00-000 COLLARSpacer Washer; |
13838-02B00-000 |
from US $1.60 |
||
|
15
|
15
02142-06123-000
Screw
Screw; |
02142-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
15
|
15
02142-0612A-000 SCREWScrew; |
02142-0612A-000 |
from US $0.80 |
||
|
16
|
16
09103-06242-000 BOLT(6X45)Bolt, upper |
09103-06242-000 |
from US $4.18 |
||
|
17
|
17
13739-02B14-000 MUDGUARD,B |
13739-02B14-000 |
from US $23.55 |
||
