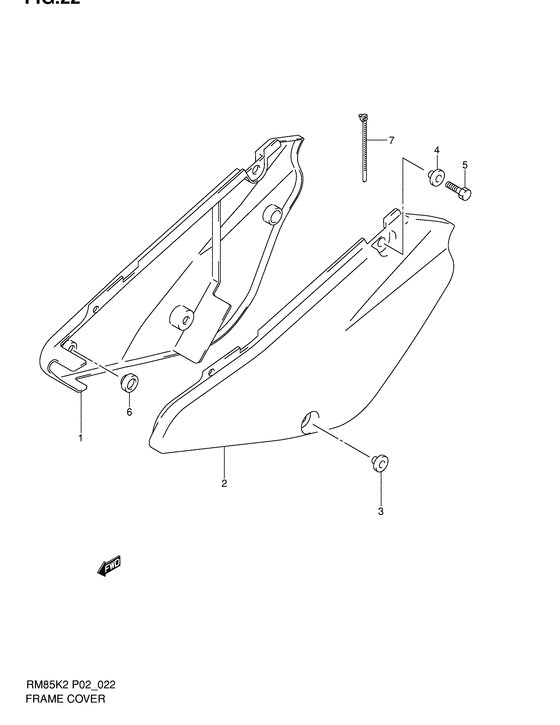

Frame cover Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-03B70-YU1 COVER,SIDE,R(YELLOW)Cover, frame rh (yellow); |
47111-03B70-YU1 |
from US $48.21 |
||
|
2
|
2
47211-03B70-YU1 COVER,SIDE,L(YELLOW)Cover, frame lh (yellow); |
47211-03B70-YU1 |
from US $48.21 |
||
|
3
|
3
09169-06010-000 WASHERWasher, inner Washer, lower; |
09169-06010-000 |
from US $1.98 |
||
|
4
|
4
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) Washer, rear; |
09160-06066-000 |
from US $0.96 |
||
|
5
|
5
09103-06234-000 BOLT(6X16)Bolt, chain guide |
09103-06234-000 |
from US $0.81 |
||
|
6
|
6
09321-10024-000 CUSHIONCushion, front; |
09321-10024-000 |
from US $2.65 |
||
|
7
|
7
09407-15401-000 CLAMP(L:150) |
09407-15401-000 |
from US $3.55 |
