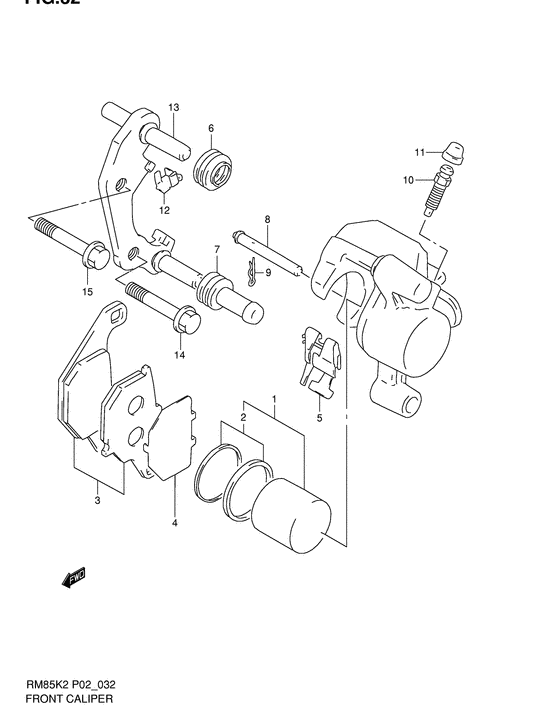

Front caliper Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
59300-03B01-000 Caliper assy, front lh |
59300-03B01-000 |
US $221.85 |
||
| replacements | |||||
|
|
59300-03891-000 PAD & SHIM SET |
59300-03891-000 |
from US $35.60 |
||
|
|
59300-03B11-999 CALIPER ASSY,FR,L |
59300-03B11-999 |
from US $259.47 |
||
|
|
59300-03B10-999 CALIPER ASSY,FR,L |
59300-03B10-999 |
from US $197.51 |
||
|
1
|
1
59300-20810-000
Piston set
|
59300-20810-000 |
— | ||
| replacement | |||||
|
1
|
1
59301-20830-000 PISTON SET |
59301-20830-000 |
from US $41.16 |
||
|
2
|
2
59300-20820-000
Seal set, pisto
Seal set, piston; |
59300-20820-000 |
— | ||
| replacement | |||||
|
2
|
2
59300-35830-000 SEAL SET,PISTONSeal set, piston; |
59300-35830-000 |
from US $8.57 |
||
|
3
|
3
59300-03880-000 Pad set |
59300-03880-000 |
from US $45.26 |
||
|
4
|
4
59371-20E00-000 SHIM,PAD |
59371-20E00-000 |
from US $5.23 |
||
|
5
|
5
59315-20E00-000 SPRING,PAD |
59315-20E00-000 |
from US $6.08 |
||
|
6
|
6
59312-36500-000 BOOT,AXLE |
59312-36500-000 |
from US $4.10 |
||
|
7
|
7
59313-36500-000 INSULATOR,AXLE |
59313-36500-000 |
from US $4.10 |
||
|
8
|
8
69141-44B02-000 PIN,PAD |
69141-44B02-000 |
from US $6.11 |
||
|
9
|
9
69142-45000-000 CLIP,PAD PINClip Clip; |
69142-45000-000 |
from US $2.58 |
||
|
10
|
10
59121-18410-000 BLEEDERBleeder; |
59121-18410-000 |
from US $7.14 |
||
|
11
|
11
59122-02B40-000 CAP,BLEEDER |
59122-02B40-000 |
from US $3.57 |
||
| replacement | |||||
|
11
|
11
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
12
|
12
59116-20E00-000 GUIDE,PAD |
59116-20E00-000 |
from US $2.53 |
||
|
13
|
13
59350-20E00-000 CARRIER,CALIPER,L |
59350-20E00-000 |
from US $37.90 |
||
| replacement | |||||
|
13
|
13
59350-03B00-000 CARRIER,CALIPER,L |
59350-03B00-000 |
from US $42.69 |
||
|
14
|
14
09103-08376-000 BOLT(8X48)Lower |
09103-08376-000 |
from US $1.53 |
||
|
15
|
15
09103-08377-000 BOLT(8X32)Upper |
09103-08377-000 |
from US $3.20 |
||
