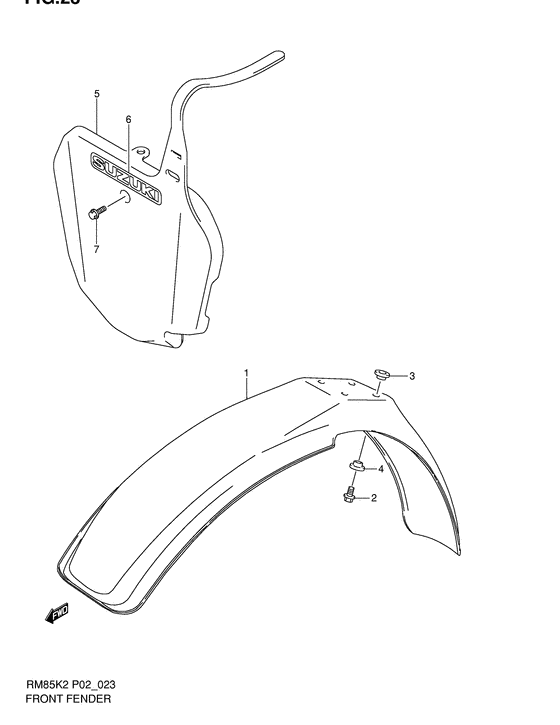

Front fender Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-03B00-YU1 Fender, front (yellow)Fender, front (yellow); |
53111-03B00-YU1 |
US $52.10 |
||
| replacements | |||||
|
1
|
1
09169-06080-000 WASHERFender, front (yellow); |
09169-06080-000 |
from US $5.68 |
||
|
1
|
1
53111-03B01-YU1 FENDER,FRFender, front (yellow); |
53111-03B01-YU1 |
from US $55.42 |
||
|
1
|
1
01547-06207-000 BoltBolt, lower Fender, front (yellow); |
01547-06207-000 |
from US $0.80 |
||
|
1
|
1
09103-06235-000
Bolt, lh
Fender, front (yellow); |
09103-06235-000 |
— | ||
|
2
|
2
09103-06234-000 BOLT(6X16)Bolt, chain guide |
09103-06234-000 |
from US $0.81 |
||
|
3
|
3
09169-06073-000 WASHERWasher, upper; |
09169-06073-000 |
from US $1.67 |
||
|
4
|
4
09169-06054-000
Washer
Washer, lower; |
09169-06054-000 |
— | ||
| replacement | |||||
|
4
|
4
09169-06053-000 WASHERWasher, lower; |
09169-06053-000 |
from US $0.91 |
||
|
5
|
5
94911-03B00-YU1 PLATE,NUMBER FRPlate, front number (yellow); |
94911-03B00-YU1 |
from US $44.16 |
||
|
6
|
6
68721-09A00-GY8 EMBLEM,SUZUKIEmblem, "suzuki" |
68721-09A00-GY8 |
from US $6 |
||
|
7
|
7
09103-06233-000 BOLT(6X12)Bolt, rear |
09103-06233-000 |
from US $0.91 |
||
