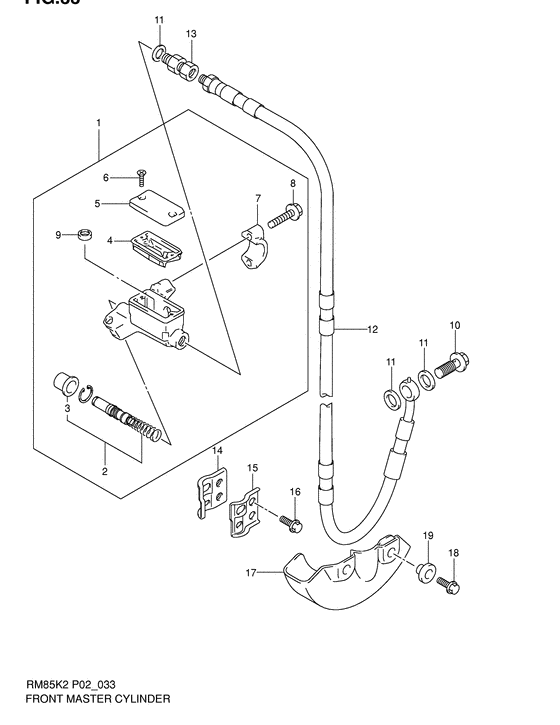

Front Master Cylinder Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-27C01-000 CYLINDER ASSY,FR MASTER |
59600-27C01-000 |
from US $191.36 |
||
|
2
|
2
59600-27820-000 PISTON & CUP SETPiston/cup set Piston/cut set; |
59600-27820-000 |
from US $29.81 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59667-14500-000 DIAPHRAGM |
59667-14500-000 |
from US $8.27 |
||
|
5
|
5
59669-27C01-000 CAP |
59669-27C01-000 |
from US $11.37 |
||
|
6
|
6
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.51 |
||
|
7
|
7
59671-27C00-000 HOLDER |
59671-27C00-000 |
from US $7.45 |
||
|
8
|
8
59675-27C00-000 Bolt |
59675-27C00-000 |
from US $2.02 |
||
|
9
|
9
59748-14500-000 SEPARATOR |
59748-14500-000 |
from US $5.78 |
||
|
10
|
10
09360-10040-000
Bolt
Union bolt (10x1.25x22); |
09360-10040-000 |
— | ||
| replacement | |||||
|
10
|
10
09360-10062-000 UNIONBolt, upper Union bolt (10x1.25x22); |
09360-10062-000 |
from US $4.64 |
||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer (10x15x1.5); |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
59480-03B60-000
HOSE,FR BRAKE
|
59480-03B60-000 |
— | ||
|
13
|
13
59290-14501-000 ADAPTOR,BRAKE HOSE |
59290-14501-000 |
from US $17.66 |
||
|
14
|
14
59260-03B00-000 CLAMP,FR BRAKE HOSE INNERInner |
59260-03B00-000 |
from US $6.29 |
||
|
15
|
15
59271-03B00-000 CLAMP,FR BRAKE OUTEROuter |
59271-03B00-000 |
from US $5.34 |
||
|
16
|
16
09103-06234-000 BOLT(6X16)Bolt, chain guide |
09103-06234-000 |
from US $0.81 |
||
|
17
|
17
59233-03B00-000 COVER,FR BRAKE HOSE |
59233-03B00-000 |
from US $17 |
||
|
18
|
18
09103-06233-000 BOLT(6X12)Bolt, rear Bolt, cover; |
09103-06233-000 |
from US $0.91 |
||
|
19
|
19
09169-06054-000
Washer
Washer, cover; |
09169-06054-000 |
— | ||
| replacement | |||||
|
19
|
19
09169-06053-000 WASHERWasher, cover; |
09169-06053-000 |
from US $0.91 |
||
