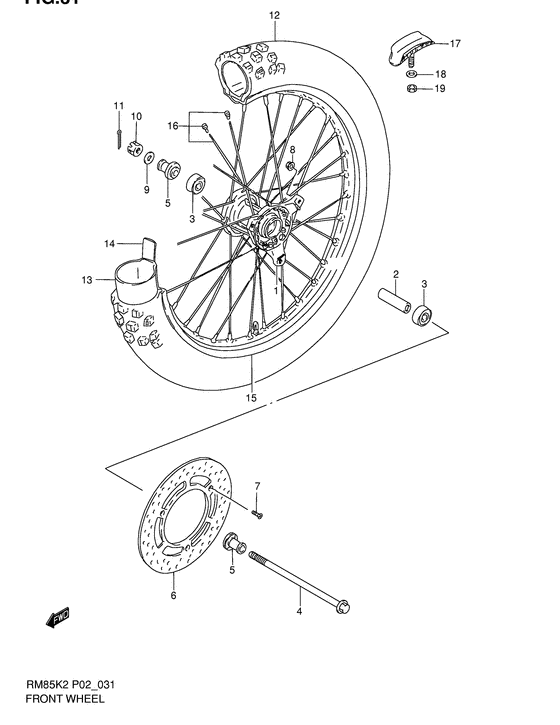

Front wheel Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54111-02B42-000 HUB,FR WHEEL |
54111-02B42-000 |
from US $153.46 |
||
|
2
|
2
54731-02B40-000 SPACER,FR HUB BEARINGSpacer, bearing Spacer, front hub (12.7x17.3x50); |
54731-02B40-000 |
from US $6.66 |
||
|
3
|
3
08133-62017-000 BEARINGBearing (12x32x10) |
08133-62017-000 |
from US $10.72 |
||
|
4
|
4
54711-03B00-000 AXLE,FR |
54711-03B00-000 |
from US $21.53 |
||
|
5
|
5
54740-02B40-000 SPACER,FR AXLESpacer, axle lh |
54740-02B40-000 |
from US $8.98 |
||
|
6
|
6
59221-02B20-000
Disc, front brake
Disk, front brake; |
59221-02B20-000 |
— | ||
| replacement | |||||
|
6
|
6
59221-02B21-000 DISC,FR BRAKEDisk, front brake; |
59221-02B21-000 |
from US $207.92 |
||
|
7
|
7
09126-06009-000 SCREW(6X22)Screw, disc Screw (6x22); |
09126-06009-000 |
from US $3.69 |
||
|
8
|
8
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
9
|
9
08211-12204-000 WASHERWasher |
08211-12204-000 |
from US $5.88 |
||
|
10
|
10
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
10
|
10
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
11
|
11
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
11
|
11
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
|
12
|
12
55110-02B70-000 TIRE,FR(70/100 17)Tire, front (70/100-17 40m d737f)(dunlop) Tire, front (70/100-17 40m d737f)(dunlop); |
55110-02B70-000 |
US $105.62 |
||
|
13
|
13
55200-02B70-000 TUBE ASSY,WHEEL INNER |
55200-02B70-000 |
from US $21.34 |
||
|
14
|
14
55261-02B40-000 PROTECTOR,WHL INR TUBEProtector, inner tube Protector, inner tube; |
55261-02B40-000 |
from US $3.28 |
||
|
15
|
15
55311-02B00-000
RIM,FR WHEEL(1.40X17)
Rim, front wheel (1.40x17); |
55311-02B00-000 |
— | ||
|
16
|
16
55320-02B00-000 SPOKE SET,FR WHEELSpoke set, front wheel |
55320-02B00-000 |
from US $30.91 |
||
|
17
|
17
65270-28600-000 STOPPER,BEADStopper, beed Stopper, bead; |
65270-28600-000 |
from US $25.94 |
||
|
18
|
18
08322-01083-000
WASHER
Washer; |
08322-01083-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHERWasher; |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHERWasher; |
08322-0108A-000 |
from US $0.80 |
||
|
19
|
19
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
19
|
19
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
19
|
19
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
