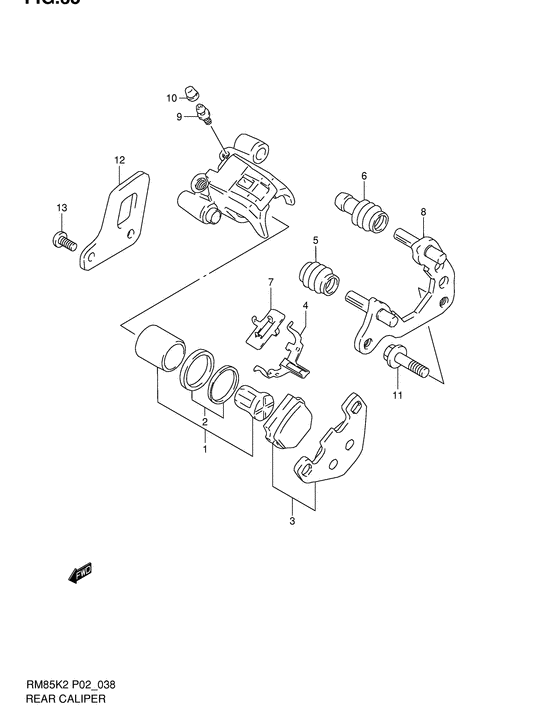

Rear caliper Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
69100-02B43-000
Caliper assy, rear
|
69100-02B43-000 |
— | ||
| replacement | |||||
|
|
69100-02B44-999 CALIPER ASSY,RR |
69100-02B44-999 |
from US $261.95 |
||
|
1
|
1
69100-02810-000
Piston set
|
69100-02810-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-02811-000 PISTON SET |
69100-02811-000 |
from US $40.10 |
||
|
2
|
2
59100-04840-000
Seal, piston
Seal, piston; |
59100-04840-000 |
— | ||
| replacement | |||||
|
2
|
2
59100-04841-000 SEAL SET,PISTONSeal, piston; |
59100-04841-000 |
from US $5.47 |
||
|
3
|
3
69100-02821-000
Pad set
|
69100-02821-000 |
— | ||
| replacement | |||||
|
3
|
3
69100-02822-000 Pad set |
69100-02822-000 |
from US $58.11 |
||
|
4
|
4
59315-36500-000 SPRING,PADSpring, pad |
59315-36500-000 |
US $12.65 |
||
|
5
|
5
59312-36500-000 BOOT,AXLE |
59312-36500-000 |
from US $4.10 |
||
|
6
|
6
59313-36500-000 INSULATOR,AXLE |
59313-36500-000 |
from US $4.10 |
||
|
7
|
7
69133-02B40-000 SHIM |
69133-02B40-000 |
from US $7.80 |
||
|
8
|
8
69150-02B40-000
Bracket
|
69150-02B40-000 |
— | ||
| replacement | |||||
|
8
|
8
69150-02B41-000 CARRIER |
69150-02B41-000 |
from US $104.80 |
||
|
9
|
9
59121-18410-000 BLEEDERBleeder; |
59121-18410-000 |
from US $7.14 |
||
|
10
|
10
59122-02B40-000 CAP,BLEEDER |
59122-02B40-000 |
from US $3.57 |
||
| replacement | |||||
|
10
|
10
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
11
|
11
09103-08171-000 BOLT(8X18)Bolt (8x18); |
09103-08171-000 |
from US $5 |
||
|
12
|
12
69725-02B40-000 GUARD,RR CALIPERGuard, caliper |
69725-02B40-000 |
from US $20.42 |
||
|
13
|
13
09139-06027-000 SCREW(6X12)Screw (6x12); |
09139-06027-000 |
from US $1.82 |
||
