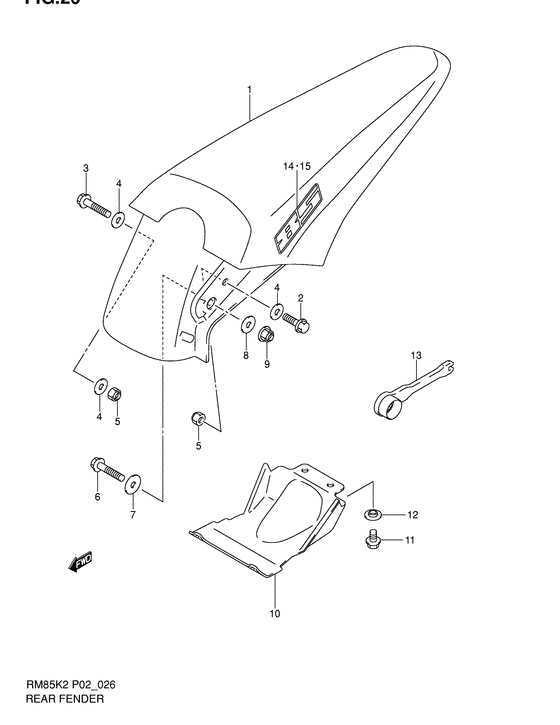

Rear fender Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-03B60-YU1 FENDER,RRFender, rear (yellow); |
63111-03B60-YU1 |
from US $44.80 |
||
|
2
|
2
09103-06235-000
Bolt, lh
Bolt, lh; |
09103-06235-000 |
— | ||
| replacement | |||||
|
2
|
2
01547-06207-000 BoltBolt, lower Bolt, lh; |
01547-06207-000 |
from US $0.80 |
||
|
3
|
3
09103-06251-000 BOLT(6X30)Bolt, rh; |
09103-06251-000 |
from US $3.21 |
||
|
4
|
4
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
5
|
5
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
6
|
6
09103-06251-000 BOLT(6X30) |
09103-06251-000 |
from US $3.21 |
||
|
7
|
7
09160-06135-000 WASHER(6.5X26X2.3)Washer, inner; |
09160-06135-000 |
from US $3.15 |
||
|
8
|
8
09160-06084-000 WASHER(6.5X18X1.6)Washer, outer; |
09160-06084-000 |
from US $0.76 |
||
|
9
|
9
08319-31063-000
Nut
|
08319-31063-000 |
— | ||
| replacement | |||||
|
9
|
9
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
10
|
10
63351-03B00-000 MUDGUARD,RR FENDER FRMud guard, rear fender front |
63351-03B00-000 |
from US $16.08 |
||
|
11
|
11
01547-06103-000
Bolt
|
01547-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0610B-000 BOLTBolt, cover |
01547-0610B-000 |
from US $0.77 |
||
|
12
|
12
09169-06010-000 WASHERWasher, inner Washer; |
09169-06010-000 |
from US $1.98 |
||
|
13
|
13
09816-00126-000
BOX SPANNER 21 & SPANNER 5.1
Box spanner; |
09816-00126-000 |
— | ||
|
14
|
14
68175-03B10-GY8
EMBLEM,RR FENDER,R
|
68175-03B10-GY8 |
— | ||
|
15
|
15
68176-03B10-GY8 EMBLEM,RR FENDER,LEmblem, rh Emblem, rh; |
68176-03B10-GY8 |
from US $9.68 |
||
