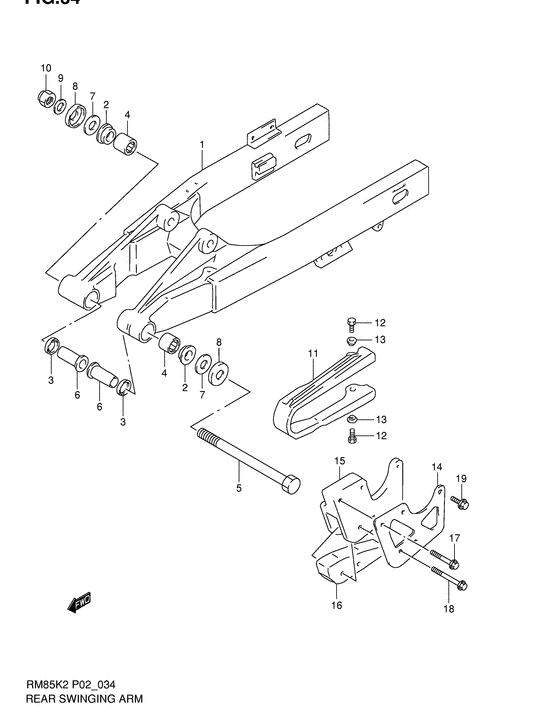

Rear swinging arm Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-03B21-000
SWINGINGARM ASSY,RR
Swinging arm assy, rear; |
61000-03B21-000 |
— | ||
|
2
|
2
61261-02B00-000 BUSHING,SWGARM PIVOTBushing |
61261-02B00-000 |
from US $10.82 |
||
|
3
|
3
09285-17001-000
SEAL,OIL(17X24X3)
Oil seal, inner (17x24x3); |
09285-17001-000 |
— | ||
| replacement | |||||
|
3
|
3
09285-17007-000 Seal,oilOil seal, inner (17x24x3); |
09285-17007-000 |
from US $1.68 |
||
|
4
|
4
09263-17038-000 BEARING(17X24X30)Bearing (17x24x30); |
09263-17038-000 |
from US $19.87 |
||
|
5
|
5
61211-02B40-000 SHAFT,RR SWINGINGARM PIVOTShaft, pivot |
61211-02B40-000 |
from US $11.37 |
||
|
6
|
6
61251-02B40-000 SPACER,RR SWGARM PIVOTSpacer, pivot; |
61251-02B40-000 |
from US $16.04 |
||
|
7
|
7
08211-12282-000 WASHERWasher, speed rotor |
08211-12282-000 |
from US $3.62 |
||
|
8
|
8
61262-03B00-000
COVER,SWGARM PIVOT
Cover, pivot; |
61262-03B00-000 |
— | ||
| replacement | |||||
|
8
|
8
61262-03B01-000 Cover Swgarm PivotCover, pivot; |
61262-03B01-000 |
from US $5.59 |
||
|
9
|
9
08322-01123-000
Washer
|
08322-01123-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0112B-000 WASHER |
08322-0112B-000 |
from US $0.80 |
||
|
10
|
10
08319-21128-000
Swingarm pivot
|
08319-21128-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-2112A-000 NUT |
08319-2112A-000 |
from US $1.98 |
||
|
11
|
11
61273-02B20-000 BUFFER,CHAIN TOUCH DEFENSEBuffer, chain defense Buffer, chain touch defense; |
61273-02B20-000 |
from US $20 |
||
|
12
|
12
09103-06234-000 BOLT(6X16)Bolt, chain guide |
09103-06234-000 |
from US $0.81 |
||
|
13
|
13
09169-06057-000 WASHER |
09169-06057-000 |
from US $1.76 |
||
|
14
|
14
61342-02B40-000 PLATE,GUIDE CHAIN OUTERPlate, guide chain outer Plate, guide outer; |
61342-02B40-000 |
from US $16.56 |
||
|
15
|
15
61343-02B40-000 GUIDE,CHAIN |
61343-02B40-000 |
US $47.84 |
||
|
16
|
16
61348-02B20-000 DEFENSE,CHAIN GUIDEDefense, chain guide |
61348-02B20-000 |
US $21.11 |
||
|
17
|
17
09103-06251-000 BOLT(6X30)Bolt, upper (6x30); |
09103-06251-000 |
from US $3.21 |
||
|
18
|
18
09103-06241-000 BOLT(6X40)Bolt, lower (6x40); |
09103-06241-000 |
from US $4.20 |
||
|
19
|
19
09103-06234-000 BOLT(6X16)Bolt, chain guide Bolt, rear (6x16); |
09103-06234-000 |
from US $0.81 |
||
