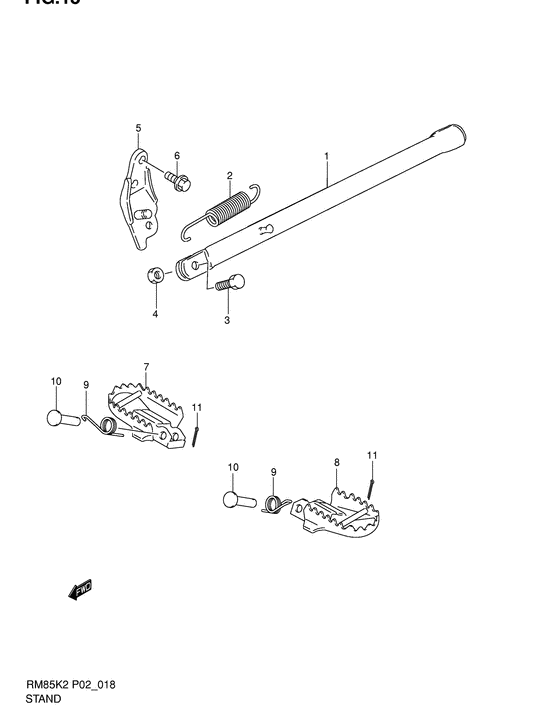

Stand Diagram Suzuki RM85
- Year
- 2002
- Model code
- RM85K2(P2) K2
- Engine Capacity
- 85
- Model
- RM85
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-02B00-019 STAND,PROP(BLACK)Stand, prop (black) Stand, prop (black); |
42310-02B00-019 |
from US $62.78 |
||
|
2
|
2
09443-17007-000 SPRING |
09443-17007-000 |
from US $2.74 |
||
|
3
|
3
09100-08140-000 BOLT(8X25)Bolt (8x28) |
09100-08140-000 |
from US $3.04 |
||
|
4
|
4
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
42330-02B01-019
BRACKET,PROP STAND(BLACK)
Bracket, prop stand (black); |
42330-02B01-019 |
— | ||
|
6
|
6
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
6
|
6
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
7
|
7
43550-03B00-019 FOOTREST,FR,RFootrest, front rh (black); |
43550-03B00-019 |
from US $20.61 |
||
|
8
|
8
43560-03B00-019 FOOTREST,FR,LFootrest, front lh (black); |
43560-03B00-019 |
from US $20.61 |
||
|
9
|
9
09448-15004-000 SPRING |
09448-15004-000 |
from US $3.57 |
||
|
10
|
10
09200-10013-000 PIN |
09200-10013-000 |
from US $4.06 |
||
|
11
|
11
09204-01002-000 PINCotter pin |
09204-01002-000 |
from US $0.96 |
||
