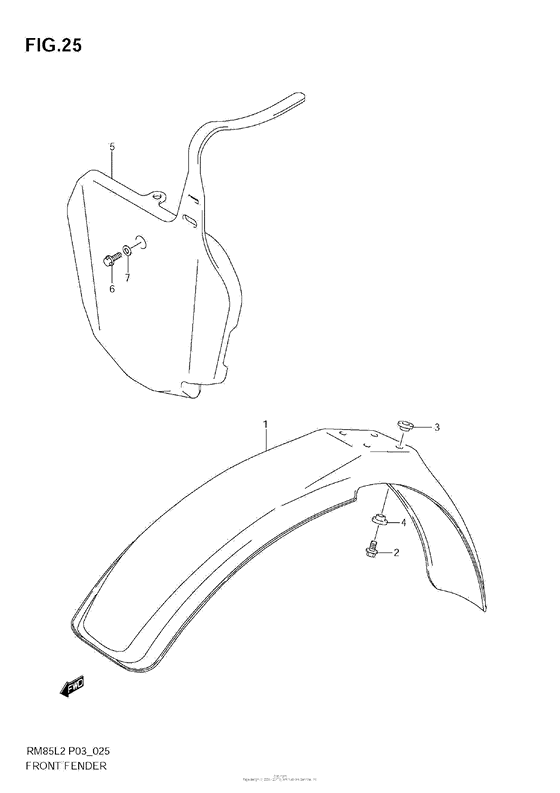

Front Fender Diagram Suzuki RM85
- Year
- 2012
- Model code
- RM85LL2
- Sales region
- USA/ Canada
- Engine Capacity
- 85
- Model
- RM85L
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-03B01-YU1 FENDER,FR |
53111-03B01-YU1 |
from US $55.42 |
||
|
2
|
2
01547-06207-000 BoltBolt, lower |
01547-06207-000 |
from US $0.80 |
||
|
3
|
3
09169-06080-000 WASHER |
09169-06080-000 |
from US $5.68 |
||
|
4
|
4
09169-06053-000 WASHER |
09169-06053-000 |
from US $0.91 |
||
|
5
|
5
94911-03B00-30H PLATE,NUMBER FR |
94911-03B00-30H |
from US $33.30 |
||
|
6
|
6
01547-06207-000 BoltBolt, lower |
01547-06207-000 |
from US $0.80 |
||
|
7
|
7
09160-06125-000 WASHER(6.5X14X1.6)Washer (6.5x14x1.6) |
09160-06125-000 |
from US $0.76 |
