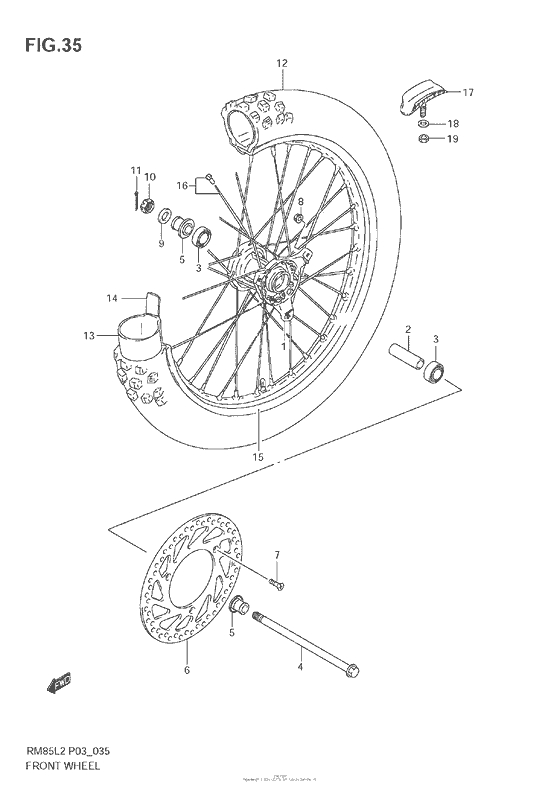

Front Wheel (Rm85L) Diagram Suzuki RM85
- Year
- 2012
- Model code
- RM85LL2
- Sales region
- USA/ Canada
- Engine Capacity
- 85
- Model
- RM85L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54111-02B42-000 HUB,FR WHEEL |
54111-02B42-000 |
from US $153.46 |
||
|
2
|
2
54731-02B40-000 SPACER,FR HUB BEARINGSpacer, bearing |
54731-02B40-000 |
from US $6.66 |
||
|
3
|
3
08133-62017-000 BEARINGBearing (12x32x10) |
08133-62017-000 |
from US $10.72 |
||
|
4
|
4
54711-03B00-000 AXLE,FR |
54711-03B00-000 |
from US $21.53 |
||
|
5
|
5
54740-02B40-000 SPACER,FR AXLESpacer, axle lh |
54740-02B40-000 |
from US $8.98 |
||
|
6
|
6
59221-03B00-000 DISC,FR BRAKE |
59221-03B00-000 |
from US $105.98 |
||
|
7
|
7
09126-06009-000 SCREW(6X22)Screw, disc |
09126-06009-000 |
from US $2.15 |
||
|
8
|
8
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
9
|
9
08211-12204-000 WASHERWasher |
08211-12204-000 |
from US $3.43 |
||
|
10
|
10
08314-4012B-000 NUT |
08314-4012B-000 |
from US $2.94 |
||
|
11
|
11
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
12
|
12
55110-03B50-000 TIRE,FR(70/100 19 42M D737F)Tire, front (70/100-19 42m d737f)(dunlop) |
55110-03B50-000 |
from US $129.90 |
||
|
13
|
13
55200-03B40-000 TUBE ASSY,WHEEL INNER |
55200-03B40-000 |
from US $25.58 |
||
|
14
|
14
55261-03B30-000 PROTECTOR,WHL INR TUBE |
55261-03B30-000 |
from US $3.28 |
||
|
15
|
15
55311-03B60-000 RIM,FR WHEEL(1.40X19) |
55311-03B60-000 |
from US $198.72 |
||
|
16
|
16
55320-03B60-000 SPOKE SET,FR WHEEL |
55320-03B60-000 |
from US $35.14 |
||
|
17
|
17
65270-28600-000 STOPPER,BEADStopper, beed |
65270-28600-000 |
from US $25.94 |
||
|
18
|
18
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
19
|
19
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
