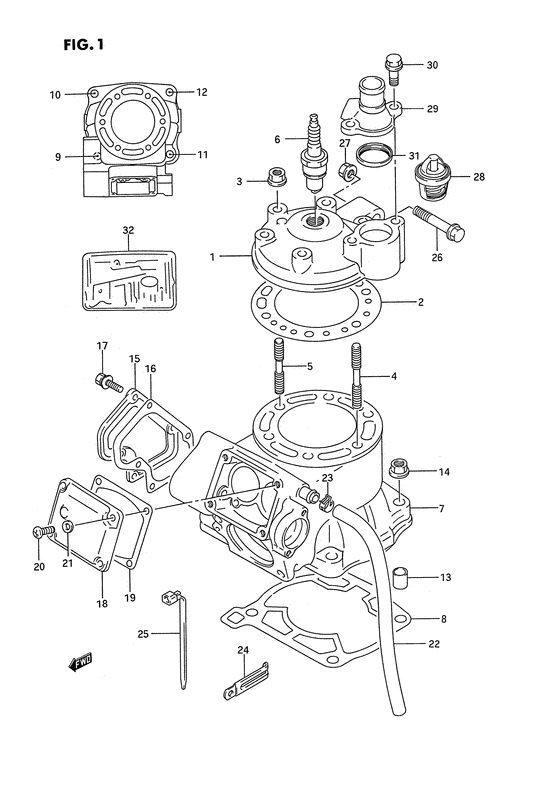

Cylinder Diagram Suzuki RMX250
- Year
- 1994
- Model code
- RMX250RR(E1) R
- Engine Capacity
- 250
- Model
- RMX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11111-29E00-000
Head, cylinder
|
11111-29E00-000 |
— | ||
|
2
|
2
11141-29E00-000
GASKET,CYLINDER HEAD
|
11141-29E00-000 |
— | ||
|
3
|
3
08316-16088-000
Nut
Model p |
08316-16088-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-10087-000 NUTModel p |
08316-10087-000 |
from US $0.80 |
||
|
3
|
3
08316-10083-000
Nut
Model r |
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUTModel r |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
09108-08234-000
Stud bolt (l:76)
Stud bolt (l:76); |
09108-08234-000 |
— | ||
|
5
|
5
09108-08235-000
Stud bolt (l:45)
Stud bolt (l:45); |
09108-08235-000 |
— | ||
| replacement | |||||
|
5
|
5
09108-08259-000 BOLT,STUDStud bolt (l:45); |
09108-08259-000 |
US $13.60 |
||
|
6
|
6
09482-00115-000
Spark plug br9e
Spark plug (ngk,br9ev); |
09482-00115-000 |
— | ||
| replacement | |||||
|
6
|
6
09482-00509-000 PLUG,SPARK(R6918B-8)Spark plug (ngk,r6918b-8) Spark plug (ngk,br9ev); |
09482-00509-000 |
from US $45.19 |
||
|
7
|
7
11200-29821-000
Cylinder set
Cylinder set; |
11200-29821-000 |
— | ||
|
8
|
8
11241-28C11-000 GASKET,CYLINDERGasket, cylinder |
11241-28C11-000 |
from US $19.98 |
||
|
9
|
9
01421-10308-000
10 x 30 stud bo
Stud bolt (l:30); |
01421-10308-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-1030A-000 BOLT,STUDStud bolt (l:30); |
01421-1030A-000 |
from US $1.60 |
||
|
10
|
10
01421-10358-000
10 x 35 stud bo
Stud bolt (l:35); |
01421-10358-000 |
— | ||
| replacement | |||||
|
10
|
10
01421-1035A-000 BOLT,STUDStud bolt (l:35); |
01421-1035A-000 |
from US $4.13 |
||
|
11
|
11
01421-10408-000
10 x 40 stud bo
Stud bolt (l:40); |
01421-10408-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-1040A-000 BOLT,STUDStud bolt (l:40); |
01421-1040A-000 |
from US $1.52 |
||
|
12
|
12
01421-10458-000
Stud bolt
|
01421-10458-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-10457-000 BOLT,STUDStud bolt |
01421-10457-000 |
from US $6.26 |
||
|
13
|
13
09206-13006-000
Pin
|
09206-13006-000 |
— | ||
| replacement | |||||
|
13
|
13
09206-13017-000 PIN(13X10.4X20)Pin |
09206-13017-000 |
from US $2.59 |
||
|
14
|
14
08316-16108-000
Nut
Model p |
08316-16108-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-10107-000 NUTModel p |
08316-10107-000 |
from US $3.77 |
||
|
14
|
14
08316-10103-000
Nut
Model r |
08316-10103-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1010B-000 NUTModel r |
08316-1010B-000 |
from US $0.80 |
||
|
15
|
15
11231-29E00-000
Cover, cylinder no.1
Model p |
11231-29E00-000 |
— | ||
| replacement | |||||
|
15
|
15
11231-29E01-000
COVER,CYLINDER NO.1
Model p |
11231-29E01-000 |
— | ||
|
15
|
15
11231-29E01-000
COVER,CYLINDER NO.1
Model r |
11231-29E01-000 |
— | ||
|
16
|
16
11233-29E00-000
GASKET,CYL COVER NO.1
|
11233-29E00-000 |
— | ||
|
17
|
17
01177-06168-000
Bolt
Model p |
01177-06168-000 |
— | ||
| replacement | |||||
|
17
|
17
01580-06167-000 BOLTModel p |
01580-06167-000 |
from US $4.54 |
||
|
17
|
17
01580-06163-000
Bolt
Model r |
01580-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
01580-0616A-000 BOLTModel r |
01580-0616A-000 |
from US $0.96 |
||
|
18
|
18
11248-05D10-000
Cover, cylinder no.2
|
11248-05D10-000 |
— | ||
| replacement | |||||
|
18
|
18
11248-28C20-000
COVER,CYLINDER NO.2
|
11248-28C20-000 |
— | ||
|
19
|
19
11238-05D00-000
Gasket, cylinder cover no.2
|
11238-05D00-000 |
— | ||
| replacement | |||||
|
19
|
19
11238-05D01-000
GASKET,CYLINDER COVER NO.2
|
11238-05D01-000 |
— | ||
|
20
|
20
02112-05168-000
Screw
Model p |
02112-05168-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-05167-000 SCREWModel p |
02112-05167-000 |
from US $0.76 |
||
|
20
|
20
02112-05163-000
Screw
Screw; Model r |
02112-05163-000 |
— | ||
| replacements | |||||
|
20
|
20
02112-0516B-000 SCREWScrew; Model r |
02112-0516B-000 |
from US $0.80 |
||
|
20
|
20
02112-0516A-000 SCREWScrew; Model r |
02112-0516A-000 |
from US $0.80 |
||
|
21
|
21
09168-05010-000 GASKET(5.3X9.3X1.2)Gasket Gasket (5.3x9.3x1.2); |
09168-05010-000 |
from US $2.72 |
||
|
22
|
22
09343-09501-000 HOSEHose (9x14x220) Hose (9x14x220); |
09343-09501-000 |
from US $2.43 |
||
|
23
|
23
09401-12405-000 CLIPClip; |
09401-12405-000 |
from US $1.60 |
||
|
24
|
24
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
| replacements | |||||
|
24
|
24
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
24
|
24
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
24
|
24
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
24
|
24
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
25
|
25
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
26
|
26
09103-08043-000 BOLT(8X45)Bolt chain roller Bolt (8x45); Model p |
09103-08043-000 |
from US $1.12 |
||
|
26
|
26
09103-08083-000 BOLT(8X41)Bolt (8x41); Model r |
09103-08083-000 |
from US $1.68 |
||
|
27
|
27
09159-08034-000 NUT |
09159-08034-000 |
from US $1.60 |
||
|
28
|
28
17670-29E00-000
THERMOSTAT,WATER 60 DEG
Opt |
17670-29E00-000 |
— | ||
|
29
|
29
17661-29E00-000
COVER,THERMOSTAT
|
17661-29E00-000 |
— | ||
|
30
|
30
01517-08207-000
Bolt
Model p |
01517-08207-000 |
— | ||
| replacement | |||||
|
30
|
30
01550-08207-000 BOLTModel p |
01550-08207-000 |
from US $0.96 |
||
|
30
|
30
01550-08203-000
Bolt
Model r |
01550-08203-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0820B-000 BoltModel r |
01550-0820B-000 |
from US $0.91 |
||
|
30
|
30
01550-0820A-000 BOLTBolt, funnel bracket Model r |
01550-0820A-000 |
from US $0.96 |
||
|
31
|
31
17664-30B00-000 SEAL,THERMOSTAT COVERSeal, thermostat cover |
17664-30B00-000 |
from US $3.34 |
||
|
32
|
32
11401-29810-000
Gasket set
|
11401-29810-000 |
— | ||
| replacement | |||||
|
32
|
32
11401-29812-000
GASKET SET
|
11401-29812-000 |
— | ||
