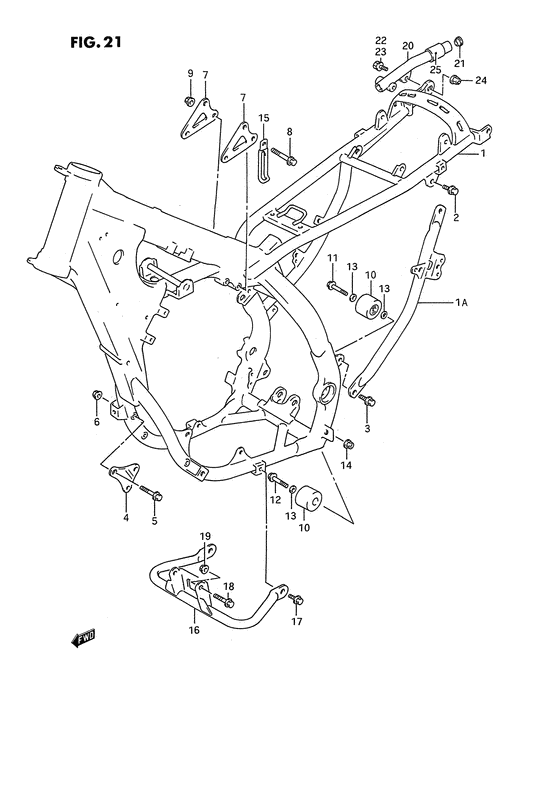

Frame Diagram Suzuki RMX250
- Year
- 1994
- Model code
- RMX250RR(E1) R
- Engine Capacity
- 250
- Model
- RMX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-29E11-24K
Frame set (charcoal)
Frame set (charcoal); |
41100-29E11-24K |
— | ||
|
1A
|
1A
41670-29E10-24K
Tube, frame side (charcoal)
Tube, frame side (charcoal); |
41670-29E10-24K |
— | ||
|
2
|
2
01517-08207-000
Bolt
Model p |
01517-08207-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-08207-000 BOLTModel p |
01550-08207-000 |
from US $0.96 |
||
|
2
|
2
01550-08203-000
Bolt
Model r |
01550-08203-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0820B-000 BoltModel r |
01550-0820B-000 |
from US $0.91 |
||
|
2
|
2
01550-0820A-000 BOLTBolt, funnel bracket Model r |
01550-0820A-000 |
from US $0.96 |
||
|
3
|
3
01517-08128-000
Bolt
Model p |
01517-08128-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-08127-000 BOLTBolt, clamp Model p |
01550-08127-000 |
from US $4.49 |
||
|
3
|
3
01550-08123-000
Bolt
Model r |
01550-08123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0812B-000 BoltPlug, drain Model r |
01550-0812B-000 |
from US $0.96 |
||
|
3
|
3
01550-0812A-000 BOLTModel r |
01550-0812A-000 |
from US $0.91 |
||
|
4
|
4
41991-28C00-000 PLATE,ENG MTG FRPlate, engine mount front |
41991-28C00-000 |
US $32.20 |
||
|
5
|
5
09103-08274-000
Bolt
|
09103-08274-000 |
— | ||
| replacement | |||||
|
5
|
5
09103-08339-000 BOLT(8X55) |
09103-08339-000 |
from US $1.82 |
||
|
5
|
5
09103-08027-000
Bolt, upper
Model r |
09103-08027-000 |
— | ||
| replacement | |||||
|
5
|
5
09103-08339-000 BOLT(8X55)Model r |
09103-08339-000 |
from US $1.82 |
||
|
6
|
6
09159-08034-000 NUT |
09159-08034-000 |
from US $1.60 |
||
|
7
|
7
41993-29E00-000
PLATE,ENG MTG UPR
|
41993-29E00-000 |
— | ||
|
8
|
8
09103-08083-000 BOLT(8X41)Bolt (8x41); |
09103-08083-000 |
from US $1.68 |
||
|
9
|
9
09159-08034-000 NUT |
09159-08034-000 |
from US $1.60 |
||
|
10
|
10
43910-27C11-000 ROLLER,CHAINRoller, chain lower Roller, chain control; |
43910-27C11-000 |
from US $35.20 |
||
|
11
|
11
09103-08083-000 BOLT(8X41)Bolt (8x41); |
09103-08083-000 |
from US $1.68 |
||
|
12
|
12
09103-08043-000 BOLT(8X45)Bolt chain roller Bolt (8x45); |
09103-08043-000 |
from US $1.12 |
||
|
13
|
13
08211-08121-000 WASHERWasher; |
08211-08121-000 |
from US $0.98 |
||
|
14
|
14
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
15
|
15
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
| replacement | |||||
|
15
|
15
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
16
|
16
42510-05D40-24K
Protector,engin
Protector, engine (charcoal); |
42510-05D40-24K |
— | ||
|
17
|
17
09103-08027-000
Bolt, upper
|
09103-08027-000 |
— | ||
| replacement | |||||
|
17
|
17
09103-08339-000 BOLT(8X55) |
09103-08339-000 |
from US $1.82 |
||
|
18
|
18
09103-08253-000 BOLT(8X14)Bolt, kick starter lever |
09103-08253-000 |
from US $1.52 |
||
|
19
|
19
09159-08034-000 NUT |
09159-08034-000 |
from US $1.60 |
||
|
20
|
20
43980-29E10-000
Grip, rear rh
Model p |
43980-29E10-000 |
— | ||
| replacements | |||||
|
20
|
20
08319-31087-000 NUTModel p |
08319-31087-000 |
from US $1.67 |
||
|
20
|
20
01550-0855B-000 BoltModel p |
01550-0855B-000 |
from US $1.44 |
||
|
20
|
20
01550-0855A-000 BOLTBolt, gear holder Model p |
01550-0855A-000 |
from US $1.22 |
||
|
20
|
20
01550-08553-000
Bolt
Model p |
01550-08553-000 |
— | ||
|
20
|
20
43980-29E11-000
Grip, rear rh
Model r |
43980-29E11-000 |
— | ||
|
21
|
21
09250-12005-000 PLUG(OD:17)Plug Plug (d1:12,d2:17); |
09250-12005-000 |
from US $1.67 |
||
|
22
|
22
01550-08553-000
Bolt
Bolt, front; |
01550-08553-000 |
— | ||
|
23
|
23
01517-08167-000
Plug, drain
Model p |
01517-08167-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-08167-000 BoltBolt (8x16) Model p |
01550-08167-000 |
from US $4.49 |
||
|
23
|
23
01550-08163-000
Bolt, holder
Bolt, rear; Model r |
01550-08163-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0816B-000 BOLTBolt, rear; Model r |
01550-0816B-000 |
from US $0.91 |
||
|
23
|
23
01550-0816A-000 BOLTBolt, rear Bolt, rear; Model r |
01550-0816A-000 |
from US $0.91 |
||
|
24
|
24
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
25
|
25
49234-60B10-000
Bushing (d10)
Bushing (d10); |
49234-60B10-000 |
— | ||
