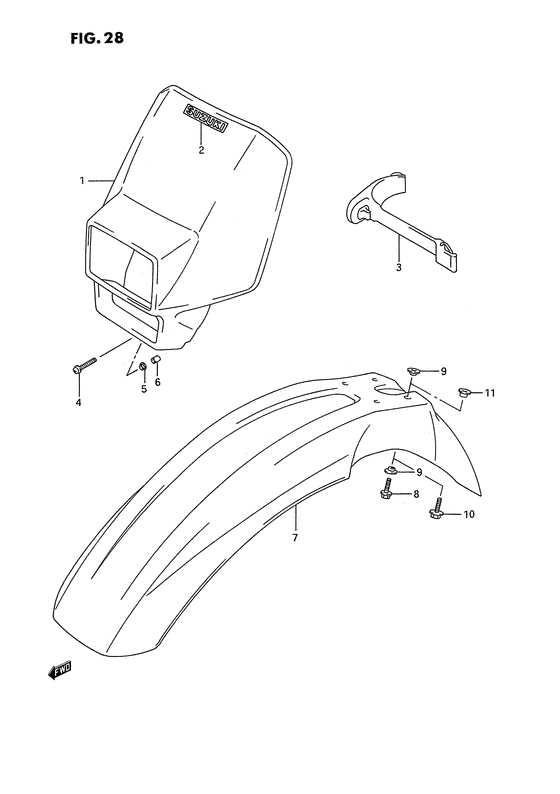

Headlamp cover / front fender Diagram Suzuki RMX250
- Year
- 1994
- Model code
- RMX250RR(E1) R
- Engine Capacity
- 250
- Model
- RMX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51800-29E00-25Y
Cover assy, headlamp (yellow)
Cover assy, headlamp (yellow); Model p for 25y, |
51800-29E00-25Y |
— | ||
| replacements | |||||
|
1
|
1
51810-03D00-25Y
COVER,HEADLAMP(YELLOW)
Cover assy, headlamp (yellow); Model p for 25y, |
51810-03D00-25Y |
— | ||
|
1
|
1
68171-44B00-A56
EMBLEM,SUZUKI(YELLOW/PURPLE)
Cover assy, headlamp (yellow); Model p for 25y, |
68171-44B00-A56 |
— | ||
|
1
|
1
51811-03D00-25Y
Cover, headlamp (yellow)
Cover, head lamp (yellow); |
51811-03D00-25Y |
— | ||
| replacement | |||||
|
1
|
1
51810-03D00-25Y
COVER,HEADLAMP(YELLOW)
Cover, head lamp (yellow); |
51810-03D00-25Y |
— | ||
|
1
|
1
51800-29E00-30H
Cover assy, head lamp (white)
Model r for 3ae, |
51800-29E00-30H |
— | ||
| replacements | |||||
|
1
|
1
51810-03D00-30H
COVER,HEADLAMP(WHITE)
Model r for 3ae, |
51810-03D00-30H |
— | ||
|
1
|
1
68171-44B00-C5Z EMBLEM,HEADLAMP COVEREmblem, suzuki (purple / white) Model r for 3ae, |
68171-44B00-C5Z |
from US $7.18 |
||
|
1
|
1
51811-03D00-30H
Cover,headlamp
Cover, head lamp (white); |
51811-03D00-30H |
— | ||
| replacement | |||||
|
1
|
1
51810-03D00-30H
COVER,HEADLAMP(WHITE)
Cover, head lamp (white); |
51810-03D00-30H |
— | ||
|
2
|
2
68171-44B00-A56
EMBLEM,SUZUKI(YELLOW/PURPLE)
Emblem, suzuki (purple / yellow); Model p for 25y |
68171-44B00-A56 |
— | ||
|
2
|
2
68171-44B00-C5Z EMBLEM,HEADLAMP COVEREmblem, suzuki (purple / white) Emblem, suzuki (purple / white); Model r for 30h |
68171-44B00-C5Z |
from US $7.18 |
||
|
3
|
3
51850-05D10-000
BAND,HEADLAMP COVER
Band, headlamp cover; |
51850-05D10-000 |
— | ||
|
4
|
4
02142-15308-000
Screw, lower
Model p |
02142-15308-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-05307-000 SCREWModel p |
02142-05307-000 |
from US $3.71 |
||
|
4
|
4
02142-05307-000 SCREWModel r |
02142-05307-000 |
from US $3.71 |
||
|
5
|
5
09169-05012-000 WASHER |
09169-05012-000 |
from US $3.25 |
||
|
6
|
6
09180-06198-000 SPACER(6.2X12X16) |
09180-06198-000 |
from US $5.88 |
||
|
7
|
7
53111-27C00-25Y
Fender, front (yellow)
Model p, |
53111-27C00-25Y |
— | ||
| replacement | |||||
|
7
|
7
53111-27C02-25Y
FENDER,FR
Model p, |
53111-27C02-25Y |
— | ||
|
7
|
7
53111-27C01-25Y
Fender, front (yellow)
Fender, front (yellow); Model r |
53111-27C01-25Y |
— | ||
| replacement | |||||
|
7
|
7
53111-27C02-25Y
FENDER,FR
Fender, front (yellow); Model r |
53111-27C02-25Y |
— | ||
|
8
|
8
01517-06167-000
Bolt
Model p |
01517-06167-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-06167-000 BOLTModel p |
01550-06167-000 |
from US $0.68 |
||
|
9
|
9
09169-06053-000 WASHERModel p |
09169-06053-000 |
from US $0.91 |
||
|
10
|
10
09116-06130-000 BOLT(6X16)Bolt, air cleaner front Bolt (6x16); Model r |
09116-06130-000 |
from US $3.32 |
||
|
11
|
11
09169-06073-000 WASHERWasher; Model r |
09169-06073-000 |
from US $1.67 |
||
