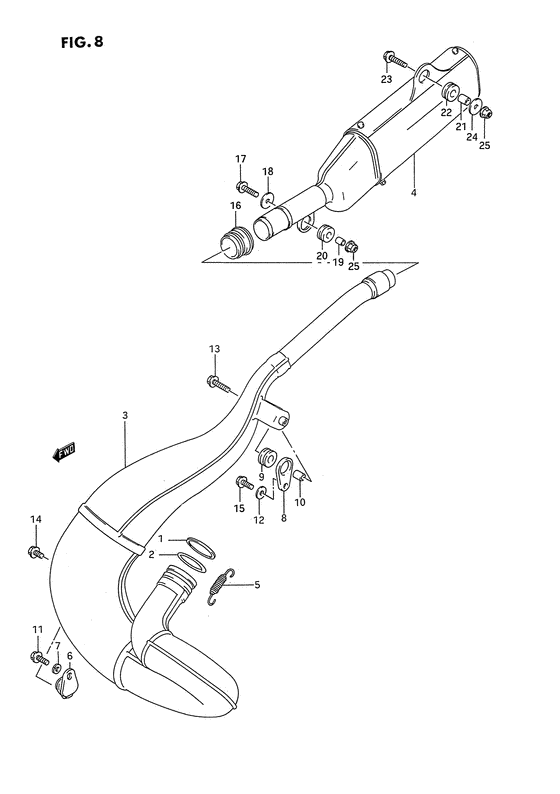

Muffler Diagram Suzuki RMX250
- Year
- 1994
- Model code
- RMX250RR(E1) R
- Engine Capacity
- 250
- Model
- RMX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14172-28C30-000 WASHER,EXHAUST PIPEWasher, exhaust pipe Washer, exhaust pipe; |
14172-28C30-000 |
from US $1.76 |
||
|
2
|
2
14171-28C30-000 O RING,EXHAUST PIPEO ring, exhaust pipe |
14171-28C30-000 |
from US $10.56 |
||
|
3
|
3
14310-29E30-000
Body, muffler 1st
Model p |
14310-29E30-000 |
— | ||
| replacement | |||||
|
3
|
3
14310-28E00-H01
BODY,MUFFLER 1ST
Model p |
14310-28E00-H01 |
— | ||
|
3
|
3
14310-28E00-H01
BODY,MUFFLER 1ST
Model r |
14310-28E00-H01 |
— | ||
|
4
|
4
14330-28E00-H01
Body comp,muf,2
|
14330-28E00-H01 |
— | ||
|
5
|
5
09443-12042-000
Spring
|
09443-12042-000 |
— | ||
| replacement | |||||
|
5
|
5
09443-12042-XC0 SPRING |
09443-12042-XC0 |
from US $11.12 |
||
|
6
|
6
14770-20400-000
Damper muffler
Damper, muffler support; |
14770-20400-000 |
— | ||
| replacements | |||||
|
6
|
6
14770-20401-000
DAMPER,MUFFLER
Damper, muffler support; |
14770-20401-000 |
— | ||
|
6
|
6
14770-20402-000 Damper,mufflerDamper, muffler support; |
14770-20402-000 |
from US $10.38 |
||
|
7
|
7
09164-06003-000 WASHERGasket Washer; |
09164-06003-000 |
from US $2.82 |
||
|
8
|
8
14761-01B00-000 PLATE,MUFFLER MTGPlate, mounting Plate, muffler mounting; |
14761-01B00-000 |
from US $7.40 |
||
|
9
|
9
14762-01B01-000
CUSHION,MUFFLER
Cushion, muffler; |
14762-01B01-000 |
— | ||
| replacement | |||||
|
9
|
9
14762-01B02-000 Cushion,mufflerCushion, muffler; |
14762-01B02-000 |
from US $3.04 |
||
|
10
|
10
09180-06062-000
Spacer (6.4x9x13.5)
|
09180-06062-000 |
— | ||
| replacement | |||||
|
10
|
10
09180-06268-000 SPACER(6.5X9X13.5) |
09180-06268-000 |
from US $1.68 |
||
|
11
|
11
01547-06167-000 BOLTBolt, fastener bracket |
01547-06167-000 |
from US $0.80 |
||
|
12
|
12
09160-06027-000
Washer (6.5x20x1.2)
Model p |
09160-06027-000 |
— | ||
| replacement | |||||
|
12
|
12
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) Model p |
09160-06077-000 |
from US $0.96 |
||
|
12
|
12
09160-06079-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2); Model r |
09160-06079-000 |
from US $0.77 |
||
| replacement | |||||
|
12
|
12
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) Washer (6.5x16x1.2); Model r |
09160-06052-000 |
from US $1.28 |
||
|
13
|
13
01547-06257-000 BOLTModel p |
01547-06257-000 |
from US $0.96 |
||
|
13
|
13
01547-06253-000
Bolt
Model r |
01547-06253-000 |
— | ||
| replacement | |||||
|
13
|
13
01547-0625B-000 BOLTModel r |
01547-0625B-000 |
from US $0.91 |
||
|
14
|
14
01547-06127-000 BOLTBolt, under oil seal plate Model p |
01547-06127-000 |
from US $2.62 |
||
|
14
|
14
01547-06123-000
Bolt
Model r |
01547-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01547-0612B-000 BOLTModel r |
01547-0612B-000 |
from US $0.77 |
||
|
14
|
14
01547-0616B-000 BOLTModel r |
01547-0616B-000 |
from US $0.76 |
||
|
15
|
15
01547-06207-000 BoltBolt, lower Model p |
01547-06207-000 |
from US $0.80 |
||
|
15
|
15
01547-06203-000
Bolt (6x20)
Model r |
01547-06203-000 |
— | ||
| replacement | |||||
|
15
|
15
01547-0620B-000 BOLTModel r |
01547-0620B-000 |
from US $0.76 |
||
|
16
|
16
14771-28C02-000 CONNECTOR,MUFFLERConnector, muffler Connector, muffler; |
14771-28C02-000 |
from US $53.26 |
||
|
17
|
17
01517-08258-000
Bolt
Model p |
01517-08258-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-08257-000 BOLTModel p |
01550-08257-000 |
from US $0.95 |
||
|
17
|
17
01550-08253-000
Bolt, rear
Model r |
01550-08253-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0825B-000 BOLTModel r |
01550-0825B-000 |
from US $0.96 |
||
|
17
|
17
01550-0825A-000 BOLTModel r |
01550-0825A-000 |
from US $1.06 |
||
|
18
|
18
09160-08002-000
Washer
|
09160-08002-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support |
09160-08135-000 |
from US $0.95 |
||
|
19
|
19
09180-08140-000 SPACER(8X10X11)Spacer |
09180-08140-000 |
from US $1.05 |
||
|
20
|
20
09320-10041-000
CUSHION
|
09320-10041-000 |
— | ||
|
21
|
21
09180-08155-000
Spacer (8.1x11.5x13)
Model p |
09180-08155-000 |
— | ||
| replacement | |||||
|
21
|
21
09180-08170-000 SPACER(8.1X11.5X13)Spacer (8.1x11.5x13) Model p |
09180-08170-000 |
from US $1.76 |
||
|
21
|
21
09180-08170-000 SPACER(8.1X11.5X13)Spacer (8.1x11.5x13) Spacer (8.1x11.5x13); Model r |
09180-08170-000 |
from US $1.76 |
||
|
22
|
22
09320-11016-000
CUSHION
|
09320-11016-000 |
— | ||
| replacement | |||||
|
22
|
22
09320-11025-000
Cushion
|
09320-11025-000 |
— | ||
|
23
|
23
01517-08307-000
Bolt
|
01517-08307-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-08307-000 BOLT |
01550-08307-000 |
from US $1.06 |
||
|
24
|
24
09160-08002-000
Washer
|
09160-08002-000 |
— | ||
| replacement | |||||
|
24
|
24
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support |
09160-08135-000 |
from US $0.95 |
||
|
25
|
25
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
