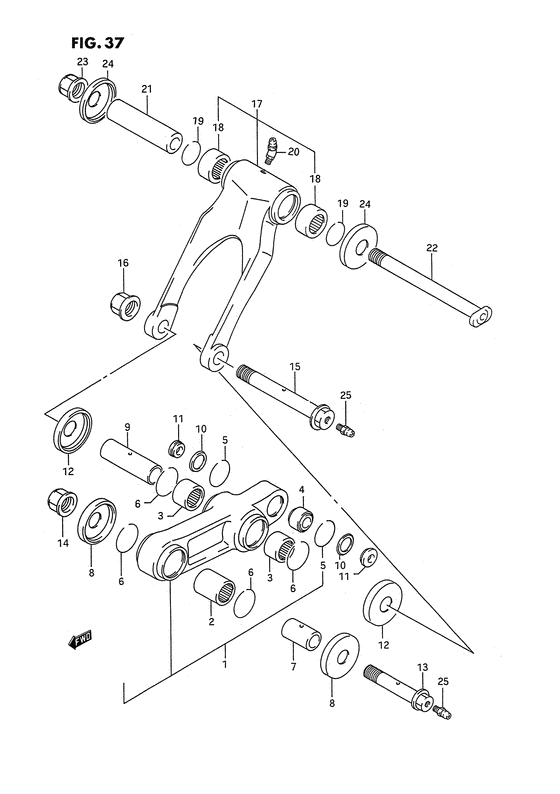

Rear cushion lever Diagram Suzuki RMX250
- Year
- 1994
- Model code
- RMX250RR(E1) R
- Engine Capacity
- 250
- Model
- RMX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62601-27810-000
Lever set, rear cushion
|
62601-27810-000 |
— | ||
| replacement | |||||
|
1
|
1
62601-27811-000
LEVER SET,RR CUSHION
|
62601-27811-000 |
— | ||
|
2
|
2
09263-20053-000 BEARING(20X27X25)Bearing (20x27x25) Bearing (20x27x25); |
09263-20053-000 |
from US $11.63 |
||
|
3
|
3
09263-21012-000 BEARING(21X27X20)Bearing (21x27x20) Bearing (21x27x20); |
09263-21012-000 |
from US $11.55 |
||
|
4
|
4
62175-43D00-000 BEARING,RR CUSHION LEVER RRBearing Bearing, rear; |
62175-43D00-000 |
from US $56.30 |
||
|
5
|
5
62277-27C20-000 RING,BEARING STOPPER |
62277-27C20-000 |
from US $1.91 |
||
|
6
|
6
09381-26002-000 CIRCLIPSnap ring; |
09381-26002-000 |
from US $2.82 |
||
|
7
|
7
62317-05D00-000 SPACER,RR CUSHION LEVER FRSpacer, front; |
62317-05D00-000 |
from US $11.36 |
||
|
8
|
8
62162-28C01-000
Dust seal, front
|
62162-28C01-000 |
— | ||
| replacements | |||||
|
8
|
8
62162-28E00-000
SEAL,RR CUSHION LEVER FR DUST
|
62162-28E00-000 |
— | ||
|
8
|
8
62162-28E01-000 Seal,dust |
62162-28E01-000 |
from US $5.60 |
||
|
9
|
9
62626-05D10-000
SPACER,RR CUSHION LEVER CTR
|
62626-05D10-000 |
— | ||
|
10
|
10
62226-43D00-000
SEAL,RR CUSHION LEVER RR DUST
Seal, rear dust; |
62226-43D00-000 |
— | ||
|
11
|
11
62684-28C10-000 SPACER,RR CUSHION LEVER RRSpacer, rear; |
62684-28C10-000 |
from US $9.64 |
||
|
12
|
12
62682-27C20-000
Seal,rr cushion
|
62682-27C20-000 |
— | ||
| replacement | |||||
|
12
|
12
62682-13E00-000 SEAL,RR CUSHION LEVER CTRSeal, center dust |
62682-13E00-000 |
from US $5.17 |
||
|
13
|
13
62658-05D10-000
Bolt, front
|
62658-05D10-000 |
— | ||
| replacement | |||||
|
13
|
13
62650-05810-000
BOLT SET,RR CUSHION LEVER FR
|
62650-05810-000 |
— | ||
|
14
|
14
08319-31128-000
Nut 12mm
Nut; |
08319-31128-000 |
— | ||
| replacement | |||||
|
14
|
14
08319-3112A-000 NUTNut; |
08319-3112A-000 |
from US $1.98 |
||
|
15
|
15
62621-29E00-000 BOLT,RR CUSHION LEVER CTR |
62621-29E00-000 |
US $21.34 |
||
|
16
|
16
08319-31148-000
Nut
|
08319-31148-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
17
|
17
62600-29810-000
ROD SET,RR CUSHION LEVER
|
62600-29810-000 |
— | ||
|
18
|
18
09263-21012-000 BEARING(21X27X20)Bearing (21x27x20) Bearing (21x27x20); |
09263-21012-000 |
from US $11.55 |
||
|
19
|
19
09381-26002-000 CIRCLIPSnap ring; |
09381-26002-000 |
from US $2.82 |
||
|
20
|
20
08351-31008-000
Grease nipple
Nipple; |
08351-31008-000 |
— | ||
| replacement | |||||
|
20
|
20
08351-3100A-000 NIPPLENipple; |
08351-3100A-000 |
from US $7.11 |
||
|
21
|
21
62645-27C20-000
SPACER,RR CUSHION ROD
Spacer, rod; |
62645-27C20-000 |
— | ||
|
22
|
22
62622-27C20-000
BOLT,RR CUSHION ROD
Bolt, rod; |
62622-27C20-000 |
— | ||
|
23
|
23
08319-31148-000
Nut
|
08319-31148-000 |
— | ||
| replacement | |||||
|
23
|
23
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
24
|
24
62682-27C20-000
Seal,rr cushion
Seal, rod; |
62682-27C20-000 |
— | ||
| replacement | |||||
|
24
|
24
62682-13E00-000 SEAL,RR CUSHION LEVER CTRSeal, center dust Seal, rod; |
62682-13E00-000 |
from US $5.17 |
||
|
25
|
25
08351-21008-000
Grease nipple
Nipple, grease; |
08351-21008-000 |
— | ||
| replacement | |||||
|
25
|
25
08351-2100A-000 NIPPLENipple, grease; |
08351-2100A-000 |
from US $2.40 |
||
