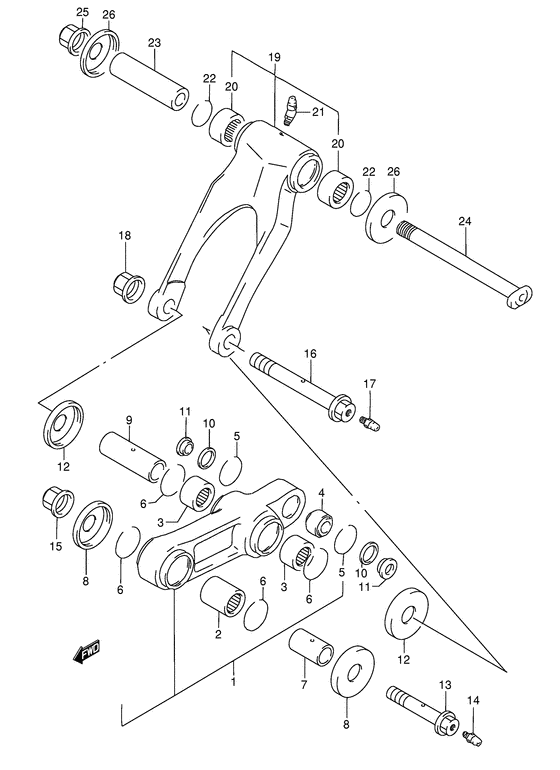

Cushion lever Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62601-27811-000
LEVER SET,RR CUSHION
|
62601-27811-000 |
— | ||
|
2
|
2
09263-20053-000 BEARING(20X27X25)Bearing (20x27x25) Bearing, front (20x27x25); |
09263-20053-000 |
from US $11.63 |
||
|
3
|
3
09263-21012-000 BEARING(21X27X20)Bearing (21x27x20) Bearing, center (21x27x20); |
09263-21012-000 |
from US $11.55 |
||
|
4
|
4
62175-28E00-000
BEARING,RR CUSHION LEVER RR
Bearing, rear (10x26x14.5); |
62175-28E00-000 |
— | ||
|
5
|
5
62277-27C20-000 RING,BEARING STOPPERRing, stopper rear; |
62277-27C20-000 |
from US $1.91 |
||
|
6
|
6
09381-26002-000 CIRCLIPRing, stopper, fr/ctr; |
09381-26002-000 |
from US $2.82 |
||
|
7
|
7
62317-05D00-000 SPACER,RR CUSHION LEVER FRSpacer, front; |
62317-05D00-000 |
from US $11.36 |
||
|
8
|
8
62162-28E00-000
SEAL,RR CUSHION LEVER FR DUST
|
62162-28E00-000 |
— | ||
| replacement | |||||
|
8
|
8
62162-28E01-000 Seal,dust |
62162-28E01-000 |
from US $5.60 |
||
|
9
|
9
62626-05D10-000
SPACER,RR CUSHION LEVER CTR
Spacer, center; |
62626-05D10-000 |
— | ||
|
10
|
10
62226-43D00-000
SEAL,RR CUSHION LEVER RR DUST
|
62226-43D00-000 |
— | ||
|
11
|
11
62684-28C10-000 SPACER,RR CUSHION LEVER RRSpacer, rear; |
62684-28C10-000 |
from US $9.64 |
||
|
12
|
12
62682-27C20-000
Seal,rr cushion
|
62682-27C20-000 |
— | ||
| replacement | |||||
|
12
|
12
62682-13E00-000 SEAL,RR CUSHION LEVER CTRSeal, center dust |
62682-13E00-000 |
from US $5.17 |
||
|
13
|
13
62650-05810-000
BOLT SET,RR CUSHION LEVER FR
Bolt, front; |
62650-05810-000 |
— | ||
|
14
|
14
08351-21008-000
Grease nipple
Nipple, grease; |
08351-21008-000 |
— | ||
| replacement | |||||
|
14
|
14
08351-2100A-000 NIPPLENipple, grease; |
08351-2100A-000 |
from US $2.40 |
||
|
15
|
15
08319-31128-000
Nut 12mm
Nut; |
08319-31128-000 |
— | ||
| replacement | |||||
|
15
|
15
08319-3112A-000 NUTNut; |
08319-3112A-000 |
from US $1.98 |
||
|
16
|
16
62621-05D10-000 BOLT,RR CUSHION LEVER CTRBolt, center |
62621-05D10-000 |
from US $19.14 |
||
|
17
|
17
08351-21008-000
Grease nipple
Nipple, grease; |
08351-21008-000 |
— | ||
| replacement | |||||
|
17
|
17
08351-2100A-000 NIPPLENipple, grease; |
08351-2100A-000 |
from US $2.40 |
||
|
18
|
18
08319-31148-000
Nut
|
08319-31148-000 |
— | ||
| replacement | |||||
|
18
|
18
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
19
|
19
62601-05811-000
ROD SET,RR CUSHION LEVER
|
62601-05811-000 |
— | ||
|
20
|
20
09263-21012-000 BEARING(21X27X20)Bearing (21x27x20) Bearing (21x27x20); |
09263-21012-000 |
from US $11.55 |
||
|
21
|
21
08351-31008-000
Grease nipple
Nipple, grease; |
08351-31008-000 |
— | ||
| replacement | |||||
|
21
|
21
08351-3100A-000 NIPPLENipple, grease; |
08351-3100A-000 |
from US $7.11 |
||
|
22
|
22
09381-26002-000 CIRCLIPRing; |
09381-26002-000 |
from US $2.82 |
||
|
23
|
23
62645-27C20-000
SPACER,RR CUSHION ROD
Spacer, rod; |
62645-27C20-000 |
— | ||
|
24
|
24
62622-27C20-000
BOLT,RR CUSHION ROD
|
62622-27C20-000 |
— | ||
|
25
|
25
08319-31148-000
Nut
|
08319-31148-000 |
— | ||
| replacement | |||||
|
25
|
25
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
26
|
26
62682-27C20-000
Seal,rr cushion
Seal, rod; |
62682-27C20-000 |
— | ||
| replacement | |||||
|
26
|
26
62682-13E00-000 SEAL,RR CUSHION LEVER CTRSeal, center dust Seal, rod; |
62682-13E00-000 |
from US $5.17 |
||
