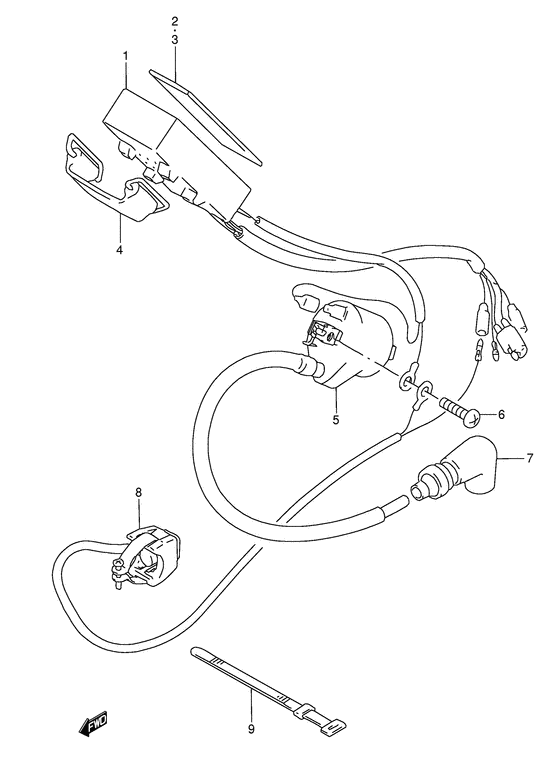

Electrical Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-05D01-000 CDI UNIT |
32900-05D01-000 |
from US $654.40 |
||
|
2
|
2
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) Protector; Cut as required profile |
33651-37000-000 |
from US $4.41 |
||
|
3
|
3
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) Protector; Cut as required profile |
33651-37000-000 |
from US $4.41 |
||
|
4
|
4
32942-14111-000 BAND(L:65)Band, cdi unit; |
32942-14111-000 |
from US $11.63 |
||
|
5
|
5
33410-12C00-000 COIL ASSY,IGNITION NO.1Coil assy, ignition |
33410-12C00-000 |
from US $116 |
||
|
6
|
6
02112-06203-000
Screw
Screw; |
02112-06203-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-0620B-000 SCREWScrew; |
02112-0620B-000 |
US $0.80 |
||
|
6
|
6
02112-0620A-000 SCREWScrew, holder Screw; |
02112-0620A-000 |
from US $0.80 |
||
|
7
|
7
33510-20A01-000
Cap,spark plug
Cap, spark plug; |
33510-20A01-000 |
— | ||
| replacement | |||||
|
7
|
7
33510-20A02-000 Cap,spark plugCap, spark plug; |
33510-20A02-000 |
from US $19.20 |
||
|
8
|
8
37820-14X50-000 SWITCH ASSY,ENGINE STOPSwitch assy, engine stop |
37820-14X50-000 |
from US $20 |
||
|
9
|
9
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp (l:120); |
09407-12402-000 |
from US $1.98 |
||
