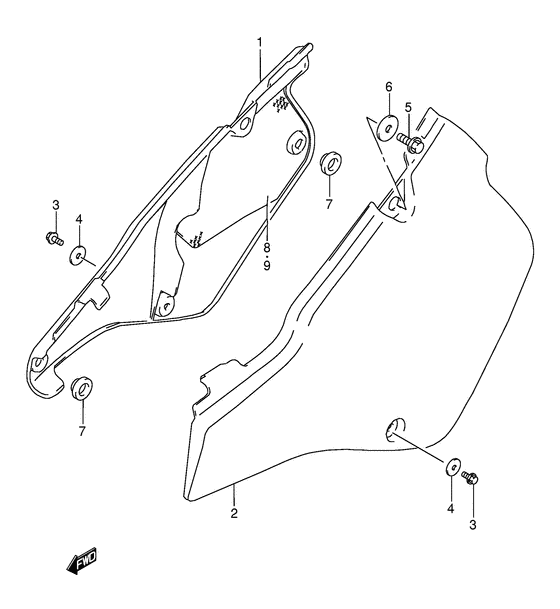

Frame cover Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-05D00-30H
COVER,FRAME,R(WHITE)
Cover, frame rh (white); |
47111-05D00-30H |
— | ||
|
2
|
2
47211-27C00-30H
COVER,FRAME,L(WHITE)
Cover, frame lh (white); |
47211-27C00-30H |
— | ||
|
3
|
3
01547-06167-000 BOLTBolt, fastener bracket Bolt, front; |
01547-06167-000 |
from US $0.80 |
||
|
4
|
4
09168-06027-000 GASKET(6.5X20X1.5)Washer (6.5x20x1.5) |
09168-06027-000 |
from US $1.52 |
||
|
5
|
5
01550-08207-000 BOLTBolt, rear; |
01550-08207-000 |
from US $0.96 |
||
|
6
|
6
09169-08045-000 WASHERWasher, rear Washer, rear; |
09169-08045-000 |
from US $1.68 |
||
|
7
|
7
09321-10018-000 CUSHIONCushion, muffler rear; |
09321-10018-000 |
from US $2.13 |
||
|
8
|
8
47166-05D00-000
HEATSHIELD,FRAME COVER,R
|
47166-05D00-000 |
— | ||
|
9
|
9
47167-05D00-000
Shield,frame co
|
47167-05D00-000 |
— |
