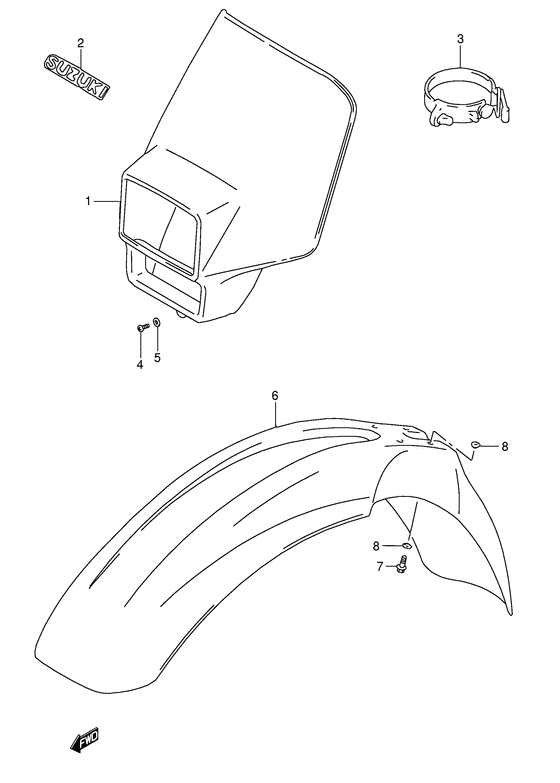

Front fender Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-03D00-30H
Cover,headlamp
Cover, head lamp (white); |
51811-03D00-30H |
— | ||
| replacement | |||||
|
1
|
1
51810-03D00-30H
COVER,HEADLAMP(WHITE)
Cover, head lamp (white); |
51810-03D00-30H |
— | ||
|
2
|
2
68171-44B00-F9J
Emblem,headlamp
|
68171-44B00-F9J |
— | ||
|
3
|
3
51850-14D00-000
BAND,HEADLAMP COVER
|
51850-14D00-000 |
— | ||
|
4
|
4
02142-15127-000 SCREWScrew, lower; |
02142-15127-000 |
from US $0.80 |
||
|
5
|
5
09169-05012-000 WASHER |
09169-05012-000 |
from US $3.25 |
||
|
6
|
6
53111-27C21-25Y
Fender,front(ye
Fender, front (yellow); |
53111-27C21-25Y |
— | ||
| replacement | |||||
|
6
|
6
53111-27C22-25Y
FENDER,FR
Fender, front (yellow); |
53111-27C22-25Y |
— | ||
|
7
|
7
01547-06163-000
Bolt (green)
|
01547-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
8
|
8
09169-06054-000
Washer
Washer; |
09169-06054-000 |
— | ||
| replacement | |||||
|
8
|
8
09169-06053-000 WASHERWasher; |
09169-06053-000 |
from US $0.91 |
||
