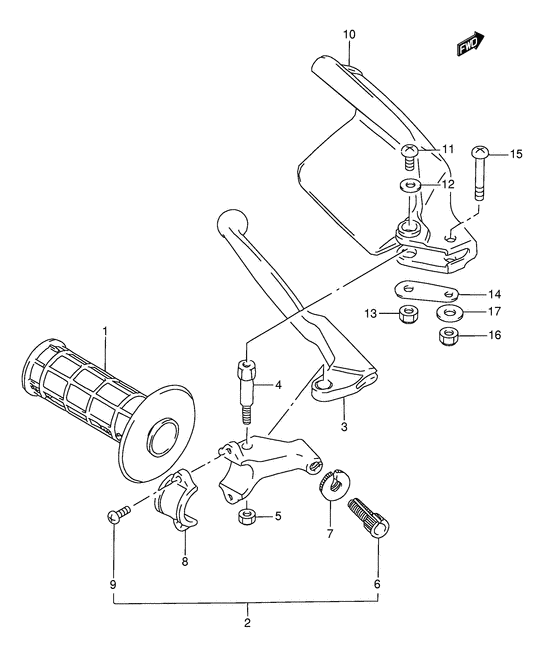

Left handle lever Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-27C00-000 GRIP,LGrip, lh |
57211-27C00-000 |
from US $8.21 |
||
|
2
|
2
57500-05D00-000
Lever assy,clutch
|
57500-05D00-000 |
— | ||
|
3
|
3
57620-14300-000 LEVER,CLUTCHLever, clutch; |
57620-14300-000 |
from US $28.12 |
||
|
4
|
4
57631-05D00-000 BOLT,LEVER SET |
57631-05D00-000 |
from US $9.44 |
||
|
5
|
5
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
6
|
6
57441-26010-000 ADJUSTER,CABLEAdjuster, cable Adjuster, cable; |
57441-26010-000 |
from US $2.46 |
||
|
7
|
7
57442-05D00-000 NUT,LOCK |
57442-05D00-000 |
from US $2.72 |
||
|
8
|
8
57512-14300-000 BRACKET,CLUTCH LEVER HOLDERBracket, holder |
57512-14300-000 |
from US $46.97 |
||
|
9
|
9
09125-05102-000 SCREW(5X14) |
09125-05102-000 |
from US $0.91 |
||
|
10
|
10
57541-05D01-019 COVER,KNUCKLE,LCover, knuckle lh (black) Cover, knuckle, lh (black); |
57541-05D01-019 |
from US $30.18 |
||
|
11
|
11
02142-05107-000 SCREWScrew, shift plate |
02142-05107-000 |
from US $0.80 |
||
|
12
|
12
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 |
09160-05043-000 |
from US $0.91 |
||
|
13
|
13
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
13
|
13
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
14
|
14
57542-05D00-000 PLATE,KNUCKLE COVER,L LWRPlate, knuckle cover lh Plate, cover lower; |
57542-05D00-000 |
from US $5.68 |
||
|
15
|
15
09125-06091-000 SCREW(6X35)Screw (6x35) |
09125-06091-000 |
from US $0.96 |
||
|
16
|
16
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
17
|
17
09160-06130-000 WASHER(6.5X16X1.6) |
09160-06130-000 |
from US $0.80 |
||
