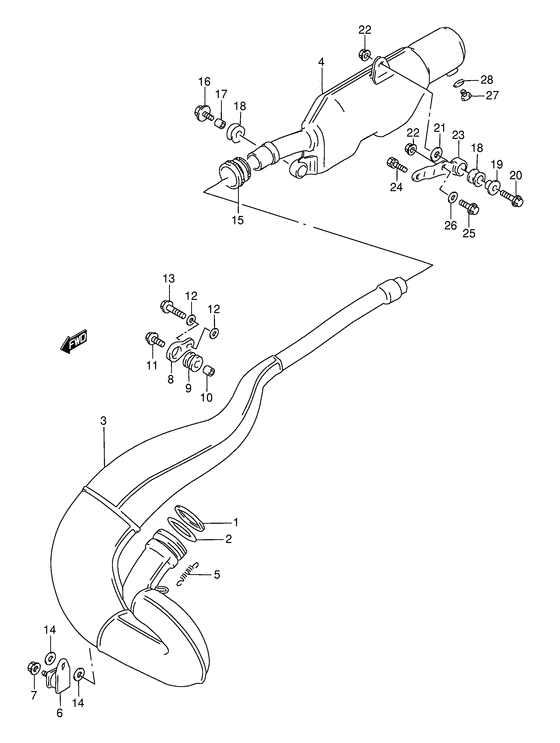

Muffler Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14172-28C30-000 WASHER,EXHAUST PIPEWasher, exhaust pipe Washer, exhaust pipe; |
14172-28C30-000 |
from US $1.76 |
||
|
2
|
2
14171-28C30-000 O RING,EXHAUST PIPEO ring, exhaust pipe |
14171-28C30-000 |
from US $10.56 |
||
|
3
|
3
14310-05D40-H01
BODY,MUFFLER 1ST
|
14310-05D40-H01 |
— | ||
|
4
|
4
14330-05D40-H01
Body comp,muf,2
|
14330-05D40-H01 |
— | ||
|
5
|
5
09443-12042-000
Spring
|
09443-12042-000 |
— | ||
| replacement | |||||
|
5
|
5
09443-12042-XC0 SPRING |
09443-12042-XC0 |
from US $11.12 |
||
|
6
|
6
14770-41101-000 DAMPER,MUFFLER SUPPORTDamper, muffler front Damper, muffler front; |
14770-41101-000 |
from US $23.12 |
||
|
7
|
7
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
8
|
8
14761-27C00-000 PLATE,MUFFLER MTGPlate, mounting |
14761-27C00-000 |
from US $11.82 |
||
|
9
|
9
14762-01B01-000
CUSHION,MUFFLER
Cushion, rear; |
14762-01B01-000 |
— | ||
| replacement | |||||
|
9
|
9
14762-01B02-000 Cushion,mufflerCushion, rear; |
14762-01B02-000 |
from US $3.04 |
||
|
10
|
10
09180-06268-000 SPACER(6.5X9X13.5)Spacer (6.5x9x13.5); |
09180-06268-000 |
from US $1.68 |
||
|
11
|
11
01547-06163-000
Bolt (green)
|
01547-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
12
|
12
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
12
|
12
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
13
|
13
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
13
|
13
01547-0625B-000 BOLT |
01547-0625B-000 |
from US $0.91 |
||
|
14
|
14
09160-08053-000
Washer cylinder (Steel)
Washer (8.5x19x2.3); |
09160-08053-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-08039-000 WASHER(8.5X19X2.3) STEELWasher (8.5x19x2.3); |
09160-08039-000 |
from US $1.12 |
||
|
15
|
15
14771-28C02-000 CONNECTOR,MUFFLERConnector, muffler Connector, muffler; |
14771-28C02-000 |
from US $53.26 |
||
|
16
|
16
09118-08080-000 BOLT(8X35)Bolt (8x35); |
09118-08080-000 |
from US $4.13 |
||
|
17
|
17
09180-08194-000 SPACER(8.5X12X17.5)Spacer, 8.5x12x17.5 Spacer (8.5x12x17.5); |
09180-08194-000 |
from US $2.08 |
||
|
18
|
18
09320-12043-000 CUSHIONCushion, exhaust support |
09320-12043-000 |
from US $7.45 |
||
|
19
|
19
09180-08151-000 SPACER(8.6X12X17.5)Spacer, exhaust support Spacer (8.6x12x17.5); |
09180-08151-000 |
from US $2.89 |
||
|
20
|
20
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
20
|
20
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
21
|
21
09160-08136-000 WASHER(8.5X28X1.6)Washer (8.5x28x1.6); |
09160-08136-000 |
from US $1.07 |
||
|
22
|
22
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
23
|
23
14760-05D00-000
Bracket,muffler
|
14760-05D00-000 |
— | ||
|
24
|
24
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
24
|
24
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
25
|
25
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
25
|
25
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
26
|
26
09160-08124-000 WASHER(8.5X20X1.6)Washer (8.5x20x1.6); |
09160-08124-000 |
from US $1.37 |
||
| replacement | |||||
|
26
|
26
09160-08054-000 WASHER(8.5X20X1.6)Washer (8.5x20x1.6); |
09160-08054-000 |
from US $0.91 |
||
|
27
|
27
09247-12103-000 PLUG(12X9)Plug, drain Plug, drain; |
09247-12103-000 |
from US $1.98 |
||
|
28
|
28
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
