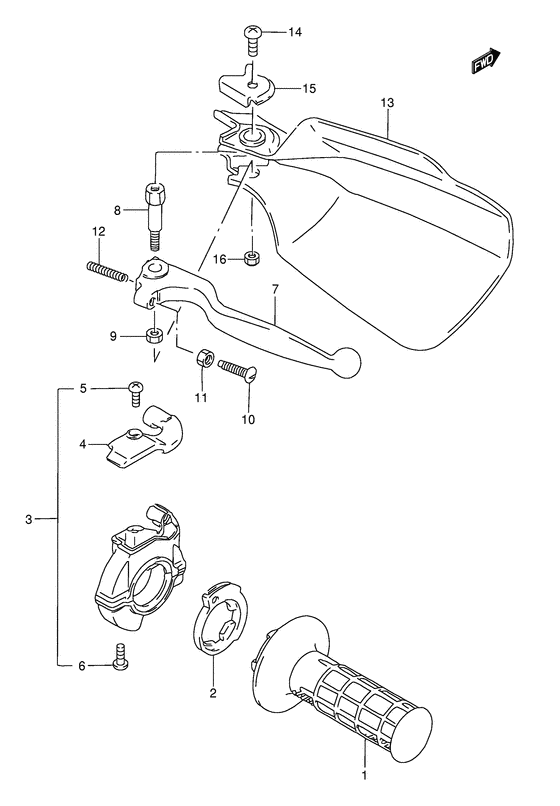

Right handle lever Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-27C00-000 GRIP,THROTTLEGrip, throttle Grip, throttle; |
57110-27C00-000 |
from US $17.48 |
||
|
2
|
2
57114-14301-000
ROTOR,THROTTLE GRIP
Rotor, throttle; |
57114-14301-000 |
— | ||
|
3
|
3
57100-14302-000
CASE ASSY,THROTTLE
Case assy, throttle; |
57100-14302-000 |
— | ||
|
4
|
4
57129-14302-000
COVER,THROTTLE CASE
|
57129-14302-000 |
— | ||
|
5
|
5
02122-04103-000
Screw
|
02122-04103-000 |
— | ||
| replacement | |||||
|
5
|
5
02122-0410A-000 SCREWScrew (4x10) |
02122-0410A-000 |
from US $0.80 |
||
|
6
|
6
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
7
|
7
57421-27C00-000 LEVER,BRAKE |
57421-27C00-000 |
from US $18.24 |
||
|
8
|
8
57431-05D00-000 BOLT,BRAKE LEVER PIVOTBolt, pivot |
57431-05D00-000 |
from US $3.52 |
||
|
9
|
9
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
9
|
9
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
10
|
10
57431-14511-000 BOLT,ADJUSTScrew; |
57431-14511-000 |
from US $2.46 |
||
|
11
|
11
08310-00053-000
Nut
|
08310-00053-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
12
|
12
57318-14502-000 SPRING,RETURN |
57318-14502-000 |
from US $1.76 |
||
|
13
|
13
57341-05D00-019
Cover,knuckle,r
Cover, knuckle, rh (black); |
57341-05D00-019 |
— | ||
| replacement | |||||
|
13
|
13
57341-05D10-019 COVER,KNUCKLE,RCover, knuckle, rh (black); |
57341-05D10-019 |
from US $14.44 |
||
|
14
|
14
02142-05107-000 SCREWScrew, shift plate |
02142-05107-000 |
from US $0.80 |
||
|
15
|
15
57355-14D00-000 PLATE,KNUCKLE COVER,R UPRPlate, upper Plate, upper; |
57355-14D00-000 |
from US $2.99 |
||
|
16
|
16
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
