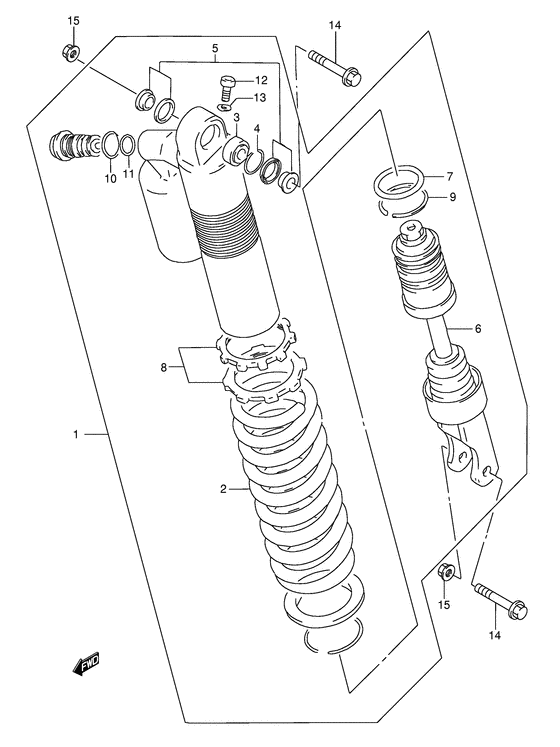

Shock absorber Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-29E60-Y0P
Absorber assy,r
Absorber assy, rear shock (blue); |
62100-29E60-Y0P |
— | ||
|
2
|
2
62211-28C80-Y0P
Spring rear(blu
Spring (k=5.4); |
62211-28C80-Y0P |
— | ||
|
3
|
3
62175-43D00-000 BEARING,RR CUSHION LEVER RRBearing Bearing (10x26x14.5); |
62175-43D00-000 |
from US $56.30 |
||
|
4
|
4
62277-27C40-000 RING,STOPPERStop ring; |
62277-27C40-000 |
from US $1.76 |
||
|
5
|
5
62680-28E00-000 COLLAR SET,RR SHOCK ABSORBERDust seal set |
62680-28E00-000 |
US $33.12 |
||
|
6
|
6
62120-29E50-000
ROD,PISTON
|
62120-29E50-000 |
— | ||
|
7
|
7
62153-43B00-000 O RING |
62153-43B00-000 |
US $8.40 |
||
|
8
|
8
62190-28E00-000
Adjuster set,sh
Adjuster set, absorber; |
62190-28E00-000 |
— | ||
|
9
|
9
62279-27C40-000 RING,STOPPER |
62279-27C40-000 |
from US $1.60 |
||
|
10
|
10
62131-27C40-000 O RING |
62131-27C40-000 |
from US $3.20 |
||
|
11
|
11
51175-28E30-000
O ring, lower
|
51175-28E30-000 |
— | ||
| replacement | |||||
|
11
|
11
51175-03B30-000 O RING |
51175-03B30-000 |
from US $2.83 |
||
|
12
|
12
62281-27C40-000
Bolt
|
62281-27C40-000 |
— | ||
|
13
|
13
51183-31030-000 GASKET,DRAIN,PLUGGasket |
51183-31030-000 |
from US $1.98 |
||
|
14
|
14
62311-28E00-000 BOLT,RR SHOCK ABSORBERBolt, upper (10x54) |
62311-28E00-000 |
from US $6.23 |
||
|
15
|
15
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
