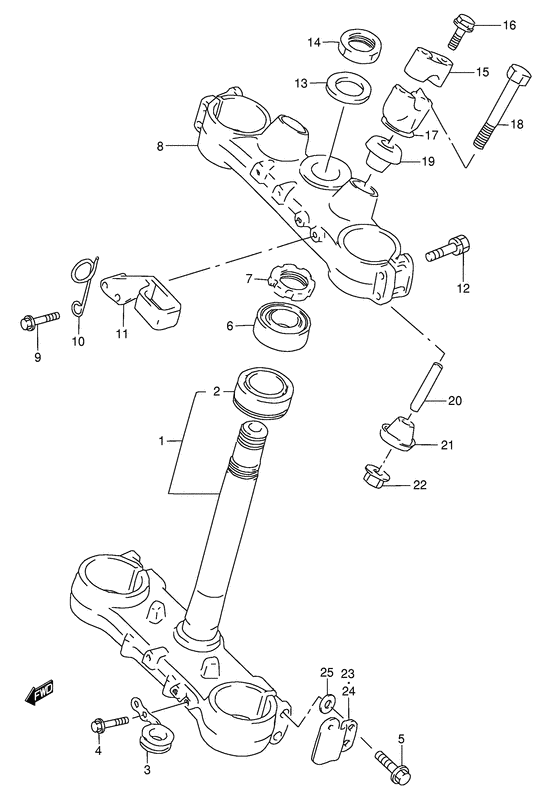

Steering stem Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-29EA0-000
Stem,steering
|
51410-29EA0-000 |
— | ||
| replacement | |||||
|
1
|
1
51410-44E30-000
STEM,STEERING
|
51410-44E30-000 |
— | ||
|
2
|
2
09265-30014-000
BEARING(30X52X16)
Bearing (30x52x16); |
09265-30014-000 |
— | ||
| replacement | |||||
|
2
|
2
09265-30035-000 BearingBearing (30x52x16); |
09265-30035-000 |
from US $31.92 |
||
|
3
|
3
51453-29E00-000
GUIDE,CABLE LWR
|
51453-29E00-000 |
— | ||
|
4
|
4
58627-27C40-000 BOLT,PROTECTOR(6X10)Bolt, guide lower; |
58627-27C40-000 |
from US $1.76 |
||
|
5
|
5
01550-08407-000 BOLTBolt, stem; |
01550-08407-000 |
from US $1.12 |
||
|
6
|
6
09265-30014-000
BEARING(30X52X16)
Bearing (30x52x16); |
09265-30014-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-30035-000 BearingBearing (30x52x16); |
09265-30035-000 |
from US $31.92 |
||
|
7
|
7
51631-28E00-000 NUT,STEERINGNut, stem |
51631-28E00-000 |
from US $14.26 |
||
|
8
|
8
51311-29EA0-000
Head,steering s
|
51311-29EA0-000 |
— | ||
|
9
|
9
58629-27C40-000
Bolt, guide
Bolt, guide upper; |
58629-27C40-000 |
— | ||
| replacement | |||||
|
9
|
9
01547-06257-000 BOLTBolt, guide upper; |
01547-06257-000 |
from US $0.96 |
||
|
10
|
10
58294-27C00-000
GUIDE,CLUTCH CABLE
Guide, clutch cable; |
58294-27C00-000 |
— | ||
| replacement | |||||
|
10
|
10
58294-27C01-000 Guide,clutch CableGuide, clutch cable; |
58294-27C01-000 |
from US $6.55 |
||
|
11
|
11
58621-27C40-000 GUIDE,HOSEGuide, hose upper; |
58621-27C40-000 |
from US $11.06 |
||
|
12
|
12
01550-08407-000 BOLTBolt, stem head; |
01550-08407-000 |
from US $1.12 |
||
|
13
|
13
51356-29E00-000 WASHER,STEM HEADWasher, stem head; |
51356-29E00-000 |
from US $8.06 |
||
|
14
|
14
51353-27C40-000 NUT,STEM HEADNut, stem head; |
51353-27C40-000 |
from US $11.70 |
||
|
15
|
15
56211-27100-000 HOLDER,HANDLEBARHolder, handle; |
56211-27100-000 |
from US $20.54 |
||
|
16
|
16
51321-27C40-000 BOLT,HANDLE HOLDER(8X35)Bolt, handle holder; |
51321-27C40-000 |
from US $1.76 |
||
|
17
|
17
56221-28C60-000 HOLDER,HANDLE UNDERHolder, handle, under |
56221-28C60-000 |
from US $37.90 |
||
|
18
|
18
56321-27E00-000 BOLT,HANDLE HOLDER(10X70)Bolt, lower holder Bolt, lower handle; |
56321-27E00-000 |
from US $6.59 |
||
|
19
|
19
56241-28C60-000
CUSHION,RUBBER UPR
|
56241-28C60-000 |
— | ||
| replacement | |||||
|
19
|
19
56241-28C61-000 Cushion,rubber Upr |
56241-28C61-000 |
from US $22.26 |
||
|
20
|
20
56243-42A00-000 SPACER |
56243-42A00-000 |
from US $2.72 |
||
|
21
|
21
56242-28C60-000
CUSHION,RUBBER UNDER
Cushion, lower; |
56242-28C60-000 |
— | ||
| replacement | |||||
|
21
|
21
56242-28C61-000 Cushion,rubber UnderCushion, lower; |
56242-28C61-000 |
from US $22.26 |
||
|
22
|
22
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
23
|
23
35956-05D11-000
Bracket, reflector rh
Bracket, reflector rh; |
35956-05D11-000 |
— | ||
|
24
|
24
35957-05D11-000
Bracket, reflector lh
Bracket, reflector lh; |
35957-05D11-000 |
— | ||
|
25
|
25
08322-01087-000 WASHERLock washer Washer; |
08322-01087-000 |
from US $0.76 |
||
