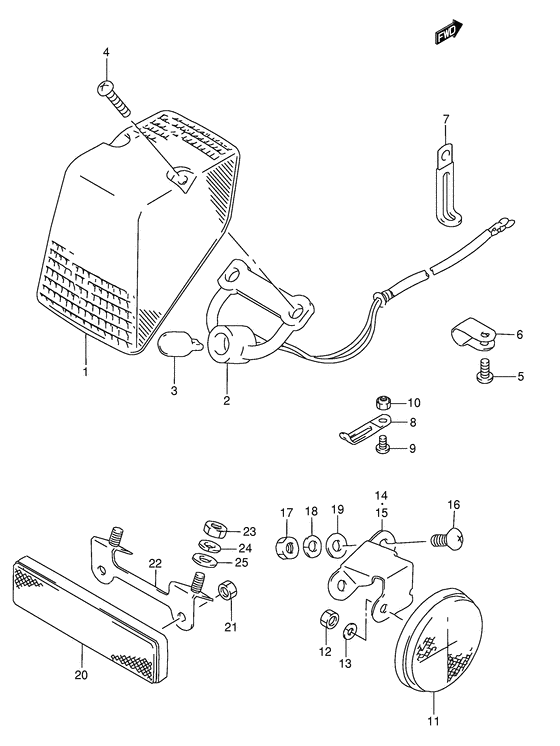

Tail lamp Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35712-03D00-000 LENSLens, tail lamp; |
35712-03D00-000 |
from US $23.20 |
||
|
2
|
2
35718-05D00-000
SOCKET & CORD,RR COMBINATION
|
35718-05D00-000 |
— | ||
|
3
|
3
09471-12081-000
Bulb (12v,5w)
Bulb (12v,5w); |
09471-12081-000 |
— | ||
| replacement | |||||
|
3
|
3
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v,5w); |
09471-12216-000 |
from US $2.77 |
||
|
4
|
4
03511-04203-000
Screw, headlamp & plate
Tapping screw; |
03511-04203-000 |
— | ||
| replacement | |||||
|
4
|
4
03511-0420B-000 SCREWTapping screw; |
03511-0420B-000 |
from US $3.47 |
||
|
5
|
5
03511-04123-000
Screw 4x12
|
03511-04123-000 |
— | ||
| replacement | |||||
|
5
|
5
03511-0412A-000 SCREW |
03511-0412A-000 |
from US $0.76 |
||
|
6
|
6
09403-06408-000 CLAMP |
09403-06408-000 |
from US $4.22 |
||
|
7
|
7
09404-08205-000 CLAMP(L:45 T:0.6)Clamp (l:62) Clamp (l:62); |
09404-08205-000 |
from US $1.98 |
||
|
8
|
8
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
9
|
9
02142-06103-000
Screw
Screw; |
02142-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0610B-000 SCREWStopper, cl rlse cam shaft Screw; |
02142-0610B-000 |
from US $0.76 |
||
|
9
|
9
02142-0610A-000 SCREWScrew; |
02142-0610A-000 |
from US $0.80 |
||
|
10
|
10
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
11
|
11
35970-14A10-000 REFLEX REFLECTOR,RRReflector assy, rear side |
35970-14A10-000 |
from US $21.57 |
||
|
12
|
12
08310-00053-000
Nut
|
08310-00053-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
13
|
13
08321-01053-000
Lock washer
Washer; |
08321-01053-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0105B-000 WASHER,LOCKWasher; |
08321-0105B-000 |
from US $0.77 |
||
|
13
|
13
08321-0105A-000 WASHER,LOCKWasher; |
08321-0105A-000 |
from US $0.76 |
||
|
14
|
14
35975-05D00-000
Bracket,rear si
|
35975-05D00-000 |
— | ||
|
15
|
15
35976-05D01-000
Bracket,rear si
|
35976-05D01-000 |
— | ||
|
16
|
16
02142-06163-000
Screw
Screw; |
02142-06163-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0616A-000 SCREWScrew; |
02142-0616A-000 |
from US $0.76 |
||
|
17
|
17
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
17
|
17
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
18
|
18
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
19
|
19
08322-01063-000
Washer
Washer; |
08322-01063-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-0106B-000 WASHERWasher; |
08322-0106B-000 |
from US $0.76 |
||
|
20
|
20
35970-44A00-000 REFLEX REFLECTOR,RR |
35970-44A00-000 |
from US $15.97 |
||
|
21
|
21
08310-00053-000
Nut
|
08310-00053-000 |
— | ||
| replacement | |||||
|
21
|
21
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
22
|
22
35974-05D01-000
Bracket,rr refl
|
35974-05D01-000 |
— | ||
|
23
|
23
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
23
|
23
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
24
|
24
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
25
|
25
08322-01063-000
Washer
Washer; |
08322-01063-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-0106B-000 WASHERWasher; |
08322-0106B-000 |
from US $0.76 |
||
