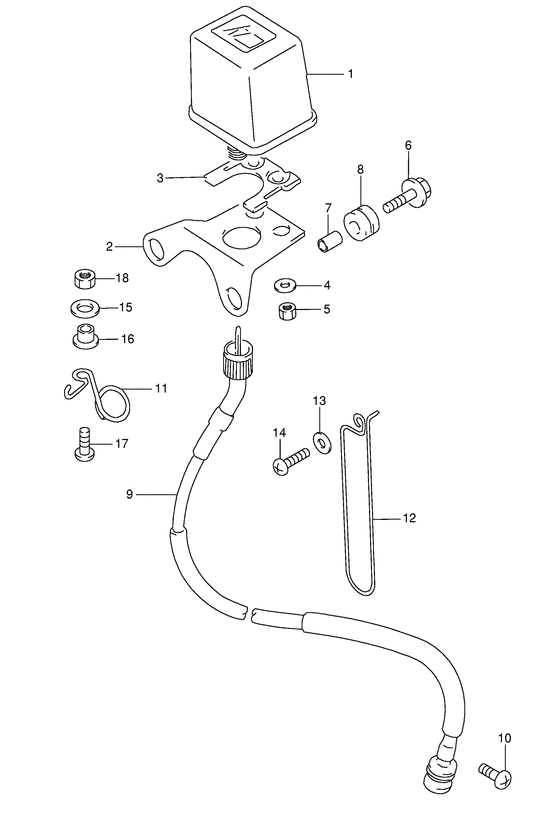

Trip meter Diagram Suzuki RMX250
- Year
- 1998
- Model code
- RMX250W(E28) W
- Engine Capacity
- 250
- Model
- RMX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34721-05D30-000 TRIP METERTrip meter assy (kilo) Trim meter (kilo); |
34721-05D30-000 |
from US $108.56 |
||
|
2
|
2
34725-14D00-000 BRACKET |
34725-14D00-000 |
from US $30.36 |
||
|
3
|
3
34726-05D20-000 CUSHION |
34726-05D20-000 |
from US $4.49 |
||
|
4
|
4
09160-04022-000 WASHER(4.3X14X0.8)Washer (4.3x14x0.8); |
09160-04022-000 |
from US $2.94 |
||
|
5
|
5
08310-00047-000 NUT |
08310-00047-000 |
from US $0.76 |
||
|
6
|
6
09118-06086-000 BOLT(6X25)Bolt (6x25); |
09118-06086-000 |
from US $4.28 |
||
|
7
|
7
09180-06248-000 SPACER(6.1X8X9.5)Spacer (6.1x8x9.5); |
09180-06248-000 |
from US $1.68 |
||
|
8
|
8
09320-08501-000 CUSHION |
09320-08501-000 |
from US $5.17 |
||
|
9
|
9
34910-12E00-000
CABLE ASSY,SPEEDOMETER
Cable, trip meter; |
34910-12E00-000 |
— | ||
| replacement | |||||
|
9
|
9
34910-12E01-000 Cable Assy,speedometerCable, trip meter; |
34910-12E01-000 |
from US $35.20 |
||
|
10
|
10
02112-05163-000
Screw
Screw; |
02112-05163-000 |
— | ||
| replacements | |||||
|
10
|
10
02112-0516B-000 SCREWScrew; |
02112-0516B-000 |
from US $0.80 |
||
|
10
|
10
02112-0516A-000 SCREWScrew; |
02112-0516A-000 |
from US $0.80 |
||
|
11
|
11
34938-14D21-000 GUIDE,SPEEDOMETER CABLE |
34938-14D21-000 |
from US $5.44 |
||
|
12
|
12
34938-14D30-000 GUIDE,METER CABLE NO.2Guide, meter cable no.2 Guide, meter cable no.2; |
34938-14D30-000 |
from US $6.51 |
||
|
13
|
13
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) Washer (6.5x20x1.6); |
09160-06066-000 |
from US $0.96 |
||
|
14
|
14
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
15
|
15
09160-06109-000 WASHER(6.5X18X1.6)Washer, meter no.1 (6.5x16x1.2; |
09160-06109-000 |
from US $0.80 |
||
|
16
|
16
09169-06054-000
Washer
Washer, meter no.1; |
09169-06054-000 |
— | ||
| replacement | |||||
|
16
|
16
09169-06053-000 WASHERWasher, meter no.1; |
09169-06053-000 |
from US $0.91 |
||
|
17
|
17
02142-06163-000
Screw
Screw, meter no.1; |
02142-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-0616A-000 SCREWScrew, meter no.1; |
02142-0616A-000 |
from US $0.76 |
||
|
18
|
18
08310-00063-000
Nut
Nut, meter no.1; |
08310-00063-000 |
— | ||
| replacements | |||||
|
18
|
18
08310-0006B-000 NUTNut gear shift link rod Nut, meter no.1; |
08310-0006B-000 |
from US $0.76 |
||
|
18
|
18
08310-0006A-000 NUTNut, meter no.1; |
08310-0006A-000 |
from US $0.76 |
||
