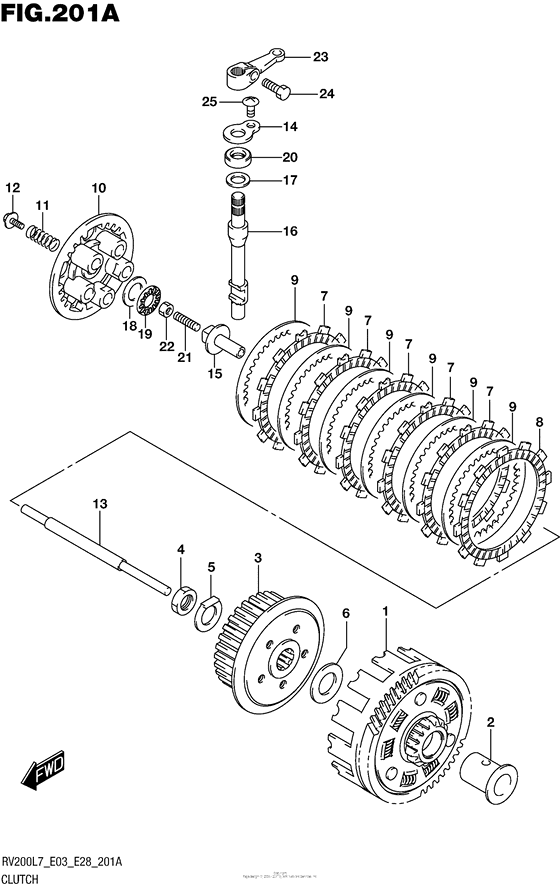

Clutch Diagram Suzuki RV200 VanVan
- Year
- 2017
- Model code
- RV200L7
- Sales region
- USA/ Canada
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-13G00-000 GEAR ASSY,PRI DRIVEN |
21200-13G00-000 |
from US $179.95 |
||
|
2
|
2
21251-13E00-000 SPACER,PRIMARY DRIVEN GEAR |
21251-13E00-000 |
from US $14.40 |
||
|
3
|
3
21411-42A04-000 HUB,CLUTCH SLEEVE |
21411-42A04-000 |
from US $53.01 |
||
|
4
|
4
09140-16005-000 NUTNut |
09140-16005-000 |
from US $2.59 |
||
|
5
|
5
09169-16003-000 WASHER |
09169-16003-000 |
from US $1.28 |
||
|
6
|
6
08211-20355-000 WASHER |
08211-20355-000 |
from US $3.57 |
||
|
7
|
7
21441-25C01-000 PLATE,CLUTCH DRIVE |
21441-25C01-000 |
from US $21.28 |
||
|
8
|
8
21441-13A01-000 PLATE,CLUTCH DRIVE(T:3.0) |
21441-13A01-000 |
from US $11.70 |
||
|
9
|
9
21451-01B40-000 PLATE,DRIVEN(T:1.4)Plate, driven |
21451-01B40-000 |
from US $8.10 |
||
|
10
|
10
21462-14130-000 DISC,CL PRESSURE |
21462-14130-000 |
from US $14.90 |
||
|
11
|
11
09440-15021-000 SPRING |
09440-15021-000 |
from US $1.98 |
||
|
12
|
12
09116-05020-000 BOLT(5X16)Bolt, clutch reaction (5x16) |
09116-05020-000 |
from US $2.85 |
||
|
13
|
13
23110-05203-000 ROD,CLUTCH PUSH |
23110-05203-000 |
from US $8.46 |
||
|
14
|
14
23117-05200-000 RETAINER,CL RLSE OIL SEALRetainer, cl rlse oil seal |
23117-05200-000 |
from US $2.08 |
||
|
15
|
15
23121-38201-000 PIECE,CLUTCH PUSHPiece, clutch push |
23121-38201-000 |
from US $12.59 |
||
|
16
|
16
23122-05200-000 CAMSHAFT,CLUTCH RELEASECam shaft, clutch release |
23122-05200-000 |
from US $23.74 |
||
|
17
|
17
09181-10195-000 SHIM(10X20X1)Washer (10x20x1.0) |
09181-10195-000 |
from US $1.87 |
||
|
18
|
18
09160-15045-000 WASHER(15.5X28X1)Washer (15.5x28x1.0) |
09160-15045-000 |
from US $1.98 |
||
|
19
|
19
09263-15003-000 BEARING(15X28X2)Bearing |
09263-15003-000 |
from US $5 |
||
|
20
|
20
09282-10012-000 SEAL,OIL(10X20X6)Seal, cl rlse arm |
09282-10012-000 |
from US $4.32 |
||
|
21
|
21
09134-06010-000 SCREW(6X25)Screw (6x25) |
09134-06010-000 |
from US $4.45 |
||
|
22
|
22
09140-06023-000 NUTNut, adjuster |
09140-06023-000 |
from US $2.89 |
||
|
23
|
23
23271-46010-000 ARM,CLUTCH RELEASEArm, clutch release |
23271-46010-000 |
from US $14.17 |
||
|
24
|
24
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
25
|
25
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
