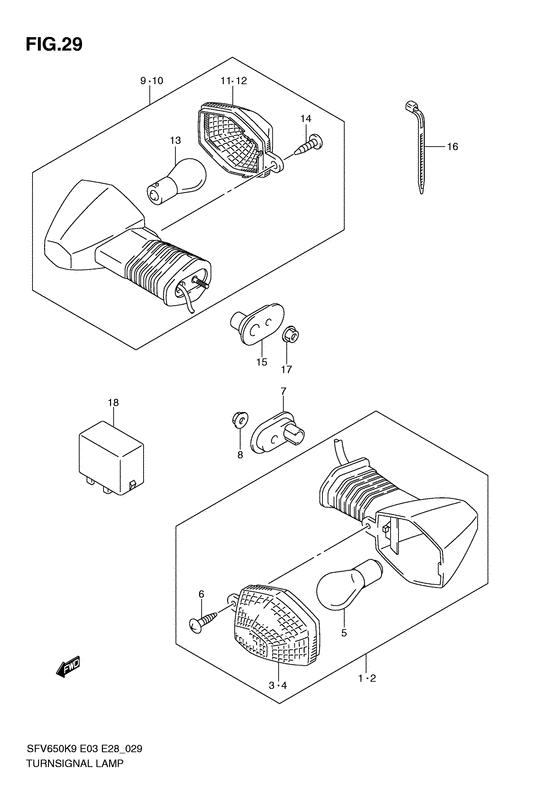

Turnsignal lamp Diagram Suzuki SFV650 Gladius
- Year
- 2010
- Model code
- SFV650AL0(E3/E28) L0
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- SFV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
35601-29FB0-000 LAMP ASSY,FR TURN SIGNAL,R |
35601-29FB0-000 |
from US $54.10 |
||
2
|
2
35602-29FB0-000 LAMP ASSY,FR TURN SIGNAL,L |
35602-29FB0-000 |
US $82.13 |
||
3
|
3
35612-29FA0-000 LENSLens, rh Lens, r; |
35612-29FA0-000 |
from US $7.75 |
||
4
|
4
35632-29FA0-000 LENSLens, lh Lens, l; |
35632-29FA0-000 |
from US $9.12 |
||
5
|
5
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v10w); |
09471-12186-000 |
from US $5.38 |
||
6
|
6
03241-0416B-000 SCREW |
03241-0416B-000 |
from US $1.65 |
||
7
|
7
35629-31F60-000 PLATE,FR TURNSIGNALPlate, front turnsignal; |
35629-31F60-000 |
from US $2.91 |
||
8
|
8
08316-1005A-000 NUTNut, front turnsignal; |
08316-1005A-000 |
from US $0.80 |
||
9
|
9
35603-29FA0-000 LAMP ASSY,RR TURNSIGNAL,RLamp assy, rear turnsignal; |
35603-29FA0-000 |
from US $48.94 |
||
10
|
10
35604-29FA0-000 LAMP ASSY,RR TURNSIGNAL,LLamp assy, rear turnsignal; |
35604-29FA0-000 |
US $96.81 |
||
11
|
11
35612-29FA0-000 LENSLens, rh Lens, r; |
35612-29FA0-000 |
from US $7.75 |
||
12
|
12
35632-29FA0-000 LENSLens, lh Lens, l; |
35632-29FA0-000 |
from US $9.12 |
||
13
|
13
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v10w); |
09471-12186-000 |
from US $5.38 |
||
14
|
14
03242-0416B-000 SCREW |
03242-0416B-000 |
from US $2.28 |
||
15
|
15
35629-31F60-000 PLATE,FR TURNSIGNALPlate, rear turnsignal; |
35629-31F60-000 |
from US $2.91 |
||
16
|
16
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
17
|
17
08316-1005A-000 NUTNut, rear turnsignal; |
08316-1005A-000 |
from US $0.80 |
||
18
|
18
38610-03F00-000
RELAY ASSY,TURNSIGNAL LAMP
Relay assy, turnsignal; |
38610-03F00-000 |
— | ||
replacement | |||||
18
|
18
38610-03F01-000 Relay Assy,turnsignal LampRelay assy, turnsignal; |
38610-03F01-000 |
from US $57.60 |
