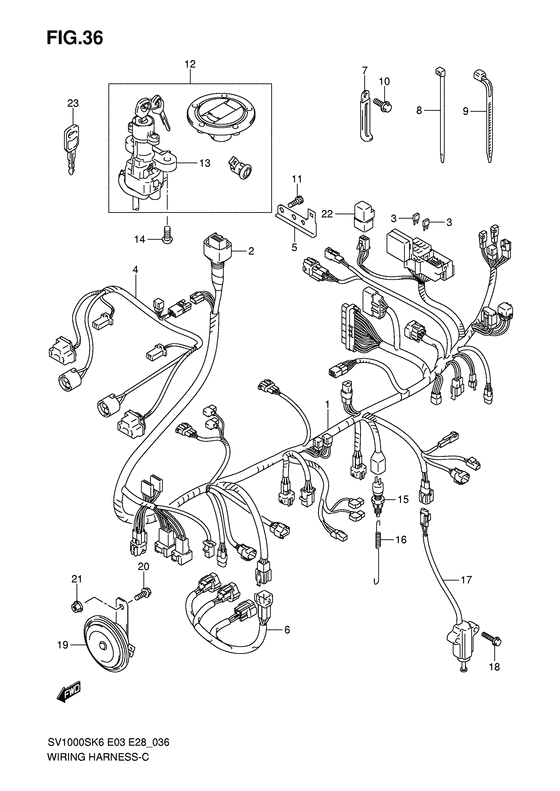

Wiring harness (Sv1000s) Diagram Suzuki SV1000
- Year
- 2006
- Model code
- SV1000K6(E3/E28) K6
- Engine Capacity
- 1000
- Model
- SV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-16GM0-000
HARNESS,WIRING NO.1
|
36610-16GM0-000 |
— | ||
|
2
|
2
36618-33E00-000 COVER,SPEEDOMETER COUPLERCap; |
36618-33E00-000 |
from US $4.12 |
||
|
3
|
3
09481-10501-000 FUSE(10A)Fuse (10a); |
09481-10501-000 |
from US $1.06 |
||
|
3
|
3
09481-15501-000 FUSE(15A)Fuse (15a); |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
36620-16G10-000 HARNESS,WIRING NO.2 |
36620-16G10-000 |
from US $89.60 |
||
| replacement | |||||
|
4
|
4
36620-16G11-000 Harness,wiring No.2 |
36620-16G11-000 |
from US $89.60 |
||
|
5
|
5
36687-16G00-000 HOLDER,COUPLER |
36687-16G00-000 |
from US $2.61 |
||
|
6
|
6
36859-16G00-000 WIRE,INJECTOR LEAD |
36859-16G00-000 |
from US $108.19 |
||
|
7
|
7
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
8
|
8
09407-14407-000 CLAMP(L:145)Band Clamp (l:145); |
09407-14407-000 |
from US $2.08 |
||
|
9
|
9
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
9
|
9
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
07130-0610B-000 Bolt |
07130-0610B-000 |
from US $0.96 |
||
|
12
|
12
37000-16840-000
Lock set
|
37000-16840-000 |
— | ||
| replacements | |||||
|
12
|
12
37000-16841-000
LOCK SET
|
37000-16841-000 |
— | ||
|
12
|
12
37000-16842-000 Lock Set |
37000-16842-000 |
US $397.44 |
||
|
12
|
12
37000-16850-000
Lock set
E33 |
37000-16850-000 |
— | ||
| replacements | |||||
|
12
|
12
37000-16851-000
LOCK SET
E33 |
37000-16851-000 |
— | ||
|
12
|
12
37000-16852-000 Lock SetE33 |
37000-16852-000 |
from US $408.32 |
||
|
13
|
13
37100-16G00-000
Lock assy, steering
|
37100-16G00-000 |
— | ||
| replacement | |||||
|
13
|
13
37100-16G01-000 LOCK ASSY,STEERING |
37100-16G01-000 |
from US $138.74 |
||
|
14
|
14
09139-08016-000 BOLT(8X20)Screw (8x20) Screw (8x20); |
09139-08016-000 |
from US $1.60 |
||
|
15
|
15
37740-45D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp; |
37740-45D00-000 |
from US $16.10 |
||
| replacement | |||||
|
15
|
15
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp Switch assy, stop lamp; |
37740-31D00-000 |
from US $20.80 |
||
|
16
|
16
09443-06016-000 SPRINGSpring, stop lamp Spring, stop lamp; |
09443-06016-000 |
from US $4.49 |
||
|
17
|
17
37840-16G00-000
Switch Assy,Side Stand
|
37840-16G00-000 |
— | ||
| replacement | |||||
|
17
|
17
37840-16G01-000 Switch Assy,Side Stand |
37840-16G01-000 |
from US $80.22 |
||
|
18
|
18
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.96 |
||
|
19
|
19
38500-16G00-000
Horn assy
|
38500-16G00-000 |
— | ||
| replacement | |||||
|
19
|
19
38500-16G01-000 HORN ASSY |
38500-16G01-000 |
US $100.64 |
||
|
20
|
20
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
21
|
21
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
22
|
22
38740-24X50-000 RELAY ASSYRelay, neutral start Relay assy, fuel pump; |
38740-24X50-000 |
from US $25.08 |
||
|
23
|
23
37146-33E00-000 KEY,BLANKOpt |
37146-33E00-000 |
from US $27.28 |
||
