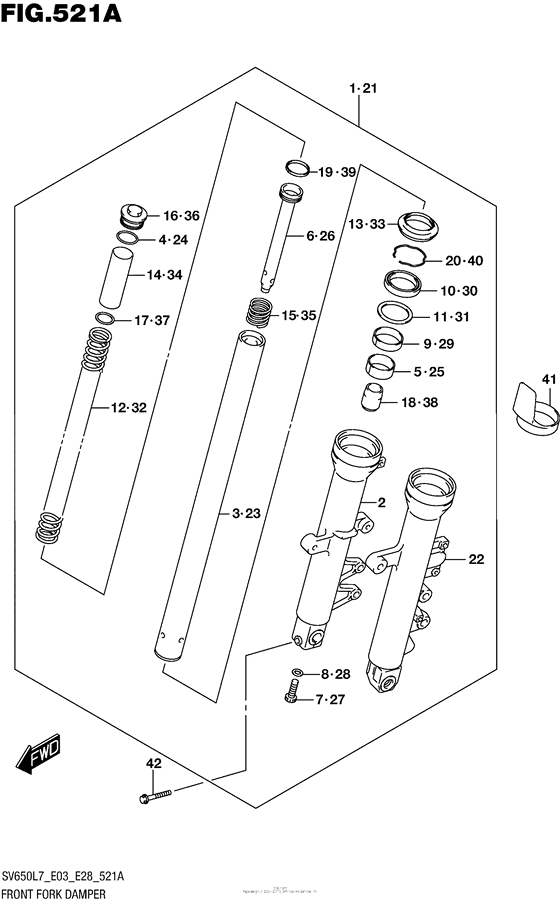

Front Fork Damper Diagram Suzuki SV650
- Year
- 2017
- Model code
- SV650L7 (2017)
- Sales region
- USA/ Canada
- Model
- SV650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51103-44HA0-291 DAMPER ASSY,FR,R |
51103-44HA0-291 |
from US $658.24 |
||
|
2
|
2
51130-44HA0-291 TUBE, OUTER RH |
51130-44HA0-291 |
from US $347.76 |
||
|
3
|
3
51110-44H00-000 TUBE,INNER |
51110-44H00-000 |
from US $303.60 |
||
|
4
|
4
51117-12C00-000 O RINGO ring |
51117-12C00-000 |
from US $1.82 |
||
|
5
|
5
51121-44H00-000 Bush,slider |
51121-44H00-000 |
from US $10.64 |
||
|
6
|
6
51146-17G20-000 CYLINDER |
51146-17G20-000 |
US $26.40 |
||
|
7
|
7
51147-48130-000 BOLT(8X27)Bolt, center |
51147-48130-000 |
from US $2.29 |
||
|
8
|
8
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
9
|
9
51152-01H10-000 Bush,guide |
51152-01H10-000 |
from US $6.84 |
||
|
10
|
10
51153-01H10-000 SEAL,OIL |
51153-01H10-000 |
from US $14.14 |
||
|
11
|
11
51168-17G80-000 SPACER,SEAL |
51168-17G80-000 |
from US $4.12 |
||
|
12
|
12
51171-44HA0-000 SPRING, FRONT |
51171-44HA0-000 |
from US $22.80 |
||
|
13
|
13
51173-01H00-000 SEAL,DUST |
51173-01H00-000 |
from US $6.23 |
||
|
14
|
14
51176-19C10-000 COLLAR, SPRING |
51176-19C10-000 |
from US $7.21 |
||
|
15
|
15
51177-17G50-000 SPRING,REBOUND |
51177-17G50-000 |
US $4.75 |
||
|
16
|
16
51189-47D50-000 BOLT,FORK |
51189-47D50-000 |
from US $24.66 |
||
|
17
|
17
51192-19C00-000 JOINT,SPRING |
51192-19C00-000 |
from US $1.82 |
||
|
18
|
18
51195-48B31-000 PIECE,OIL LOCK |
51195-48B31-000 |
from US $11.04 |
||
|
19
|
19
51196-12C00-000 RING,PISTONRing, piston |
51196-12C00-000 |
from US $4.40 |
||
|
20
|
20
51556-38B00-000 CIRCLIP,FORK OIL SEALRing, oil seal stopper |
51556-38B00-000 |
from US $1.98 |
||
|
21
|
21
51104-44HA0-291 DAMPER ASSY,FR,L |
51104-44HA0-291 |
from US $658.24 |
||
|
22
|
22
51140-44HA0-291 TUBE,OUTER LH |
51140-44HA0-291 |
from US $347.76 |
||
|
23
|
23
51110-44H00-000 TUBE,INNER |
51110-44H00-000 |
from US $303.60 |
||
|
24
|
24
51117-12C00-000 O RINGO ring |
51117-12C00-000 |
from US $1.82 |
||
|
25
|
25
51121-44H00-000 Bush,slider |
51121-44H00-000 |
from US $10.64 |
||
|
26
|
26
51146-17G20-000 CYLINDER |
51146-17G20-000 |
US $26.40 |
||
|
27
|
27
51147-48130-000 BOLT(8X27)Bolt, center |
51147-48130-000 |
from US $2.29 |
||
|
28
|
28
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
29
|
29
51152-01H10-000 Bush,guide |
51152-01H10-000 |
from US $6.84 |
||
|
30
|
30
51153-01H10-000 SEAL,OIL |
51153-01H10-000 |
from US $14.14 |
||
|
31
|
31
51168-17G80-000 SPACER,SEAL |
51168-17G80-000 |
from US $4.12 |
||
|
32
|
32
51171-44HA0-000 SPRING, FRONT |
51171-44HA0-000 |
from US $22.80 |
||
|
33
|
33
51173-01H00-000 SEAL,DUST |
51173-01H00-000 |
from US $6.23 |
||
|
34
|
34
51176-19C10-000 COLLAR, SPRING |
51176-19C10-000 |
from US $7.21 |
||
|
35
|
35
51177-17G50-000 SPRING,REBOUND |
51177-17G50-000 |
US $4.75 |
||
|
36
|
36
51189-47D50-000 BOLT,FORK |
51189-47D50-000 |
from US $24.66 |
||
|
37
|
37
51192-19C00-000 JOINT,SPRING |
51192-19C00-000 |
from US $1.82 |
||
|
38
|
38
51195-48B31-000 PIECE,OIL LOCK |
51195-48B31-000 |
from US $11.04 |
||
|
39
|
39
51196-12C00-000 RING,PISTONRing, piston |
51196-12C00-000 |
from US $4.40 |
||
|
40
|
40
51556-38B00-000 CIRCLIP,FORK OIL SEALRing, oil seal stopper |
51556-38B00-000 |
from US $1.98 |
||
|
41
|
41
51201-32F00-000 PROTECTOR |
51201-32F00-000 |
from US $8.21 |
||
|
42
|
42
51166-01H10-000 Bolt |
51166-01H10-000 |
from US $2.88 |
