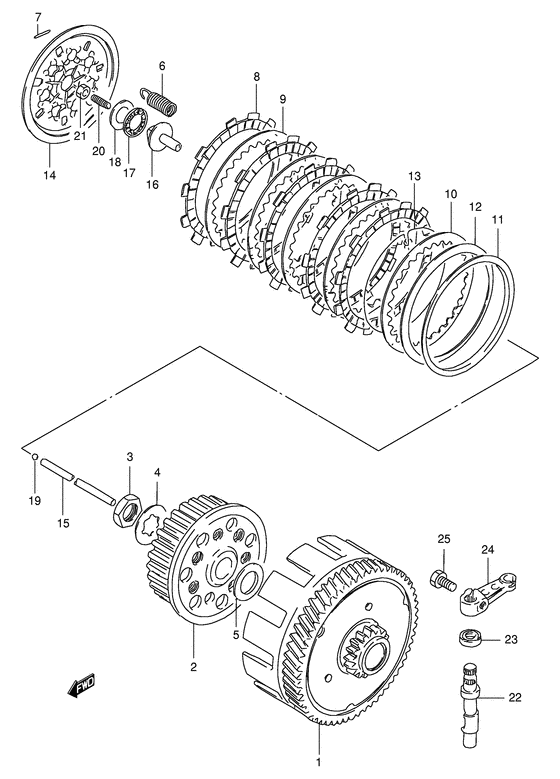

Clutch Diagram Suzuki TS125
- Year
- 1998
- Model code
- TS125ERCW(E1) W
- Engine Capacity
- 125
- Model
- TS125ER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-48700-000
Gear, primary driven
Gear, primary driven (nt:57/17; |
21200-48700-000 |
— | ||
| replacements | |||||
|
1
|
1
21200-48720-000
GEAR ASSY,PRI DRIVEN
Gear, primary driven (nt:57/17; |
21200-48720-000 |
— | ||
|
1
|
1
21200-48721-000
Gear Assy,pri Driven
Gear, primary driven (nt:57/17; |
21200-48721-000 |
— | ||
|
2
|
2
21411-48700-000
HUB,CLUTCH SLEEVE
|
21411-48700-000 |
— | ||
|
3
|
3
09140-16005-000 NUTNut |
09140-16005-000 |
from US $2.72 |
||
|
4
|
4
09167-17002-000 WASHER,LOCKWasher Washer; |
09167-17002-000 |
from US $1.12 |
||
|
5
|
5
08211-17283-000 WASHERWasher (t:2.0) Washer; |
08211-17283-000 |
US $1.68 |
||
|
6
|
6
09443-12020-000 SPRING |
09443-12020-000 |
from US $2.24 |
||
|
7
|
7
09261-02001-000 PIN(2.5X19.8)Pin; |
09261-02001-000 |
from US $0.77 |
||
|
8
|
8
21441-13A01-000 PLATE,CLUTCH DRIVE(T:3.0)Plate, drive no.1; |
21441-13A01-000 |
from US $11.70 |
||
|
9
|
9
21451-19A00-000 Plate,clutch drivenPlate, driven (t:1.6) Plate, driven no.1; |
21451-19A00-000 |
from US $8.06 |
||
|
10
|
10
21451-36200-000 PLATE,CLUTCH DRIVEN(T:2.0)Plate, driven no.2; |
21451-36200-000 |
from US $6.56 |
||
|
11
|
11
21471-36200-000 SEAT,WAVE WASHER |
21471-36200-000 |
from US $16.68 |
||
|
12
|
12
09164-98001-000 WASHERWave washer |
09164-98001-000 |
from US $14.05 |
||
|
13
|
13
21481-39301-000 RING,STOPPERStopper ring Stopper ring; |
21481-39301-000 |
from US $2.24 |
||
|
14
|
14
21461-48700-000 PLATE,CLUTCH PRESSURE |
21461-48700-000 |
US $19.87 |
||
|
15
|
15
23111-14101-000 ROD,CLUTCH PUSHRod, clutch push Rod, push; |
23111-14101-000 |
from US $11.36 |
||
|
16
|
16
23121-14101-000 PIECE,CLUTCH PUSHPiece, push |
23121-14101-000 |
from US $15.52 |
||
|
17
|
17
09263-15003-000 BEARING(15X28X2)Bearing Thrust bearing (15x28x2); |
09263-15003-000 |
from US $5.62 |
||
|
18
|
18
09160-15045-000 WASHER(15.5X28X1)Washer (15.5x28x1.0) Thrust washer (15.5x28x1); |
09160-15045-000 |
from US $1.98 |
||
|
19
|
19
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
20
|
20
09134-06010-000 SCREW(6X25)Screw (6x25) |
09134-06010-000 |
from US $5 |
||
|
21
|
21
09140-06023-000 NUTNut, adjuster |
09140-06023-000 |
from US $3.25 |
||
|
22
|
22
23261-14104-000 CAMSHAFT,CLUTCH RELEASECamshaft, release |
23261-14104-000 |
from US $39.92 |
||
|
23
|
23
09285-10004-000 SEAL,OIL(10X17X5)Oil seal (10x17x5); |
09285-10004-000 |
from US $1.98 |
||
|
24
|
24
23271-14102-000
Arm,clutch rele
|
23271-14102-000 |
— | ||
| replacement | |||||
|
24
|
24
23271-14103-000 ARM,CLUTCH RELEASE |
23271-14103-000 |
from US $23.55 |
||
|
25
|
25
01500-06163-000
Bolt
|
01500-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
