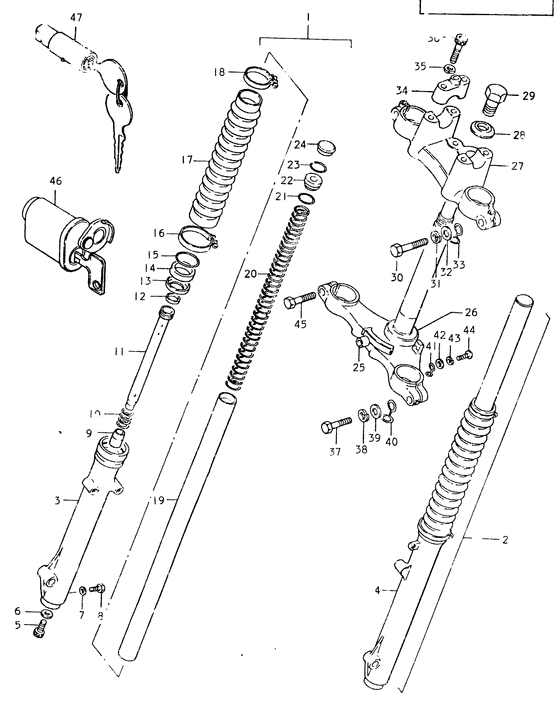

Front fork Diagram Suzuki TS125
- Year
- 1999
- Model code
- TS125ERX(T/X) X
- Engine Capacity
- 125
- Model
- TS125ER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51103-48540-000
Damper assy, rh
|
51103-48540-000 |
— | ||
| replacement | |||||
|
1
|
1
51103-48541-000
DAMPER ASSY,FR FORK,R
|
51103-48541-000 |
— | ||
|
2
|
2
51104-48540-000
Damper assy, lh
|
51104-48540-000 |
— | ||
| replacement | |||||
|
2
|
2
51104-48541-000
DAMPER ASSY,FR FORK,L
|
51104-48541-000 |
— | ||
|
3
|
3
51130-48500-000
Outer tube rh
|
51130-48500-000 |
— | ||
| replacement | |||||
|
3
|
3
51130-24E10-000
TUBE,OUTER,R
|
51130-24E10-000 |
— | ||
|
4
|
4
51140-48500-000
Outer tube lh
|
51140-48500-000 |
— | ||
|
5
|
5
51147-48130-000 BOLT(8X27)Bolt, center |
51147-48130-000 |
from US $2.29 |
||
|
6
|
6
51148-31030-000 GASKET |
51148-31030-000 |
from US $2.17 |
||
| replacement | |||||
|
6
|
6
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
7
|
7
51183-31030-000 GASKET,DRAIN,PLUGGasket |
51183-31030-000 |
from US $1.98 |
||
|
8
|
8
09100-06011-000 BOLT(6X8)Bolt (6x8) |
09100-06011-000 |
from US $1.60 |
||
|
9
|
9
51195-48000-000 PIECE,OIL LOCKPiece, oil lock Piece, oil lock; |
51195-48000-000 |
US $14.88 |
||
|
10
|
10
51177-36030-000 SPRING,REBOUNDRebund spring; |
51177-36030-000 |
US $3.24 |
||
|
11
|
11
51146-48540-000
Cylinder
|
51146-48540-000 |
— | ||
|
12
|
12
51196-33130-000 RING,PISTONRing, piston; |
51196-33130-000 |
from US $5.26 |
||
|
13
|
13
51168-48500-000
Spacer
|
51168-48500-000 |
— | ||
|
14
|
14
51153-48500-000
Oil seal
|
51153-48500-000 |
— | ||
| replacement | |||||
|
14
|
14
51153-05210-000 SEAL,OILSeal, oil |
51153-05210-000 |
from US $10.52 |
||
|
15
|
15
51156-48500-000 Snap ring |
51156-48500-000 |
US $4.36 |
||
| replacement | |||||
|
15
|
15
51156-48730-000 SEAL,OIL STOPPER RINGRing, stopper |
51156-48730-000 |
from US $2.24 |
||
|
16
|
16
09402-58306-000 CLAMPBand |
09402-58306-000 |
from US $1.98 |
||
|
17
|
17
51571-48500-000
Boot
|
51571-48500-000 |
— | ||
| replacement | |||||
|
17
|
17
51571-05210-000 BOOTBout |
51571-05210-000 |
US $34.96 |
||
|
18
|
18
51575-48500-000
BAND
|
51575-48500-000 |
— | ||
|
19
|
19
51110-48500-000
Inner tube
|
51110-48500-000 |
— | ||
| replacement | |||||
|
19
|
19
51110-05200-000
TUBE,FORK INNER
|
51110-05200-000 |
— | ||
|
20
|
20
51171-48540-000
SPRING
|
51171-48540-000 |
— | ||
|
21
|
21
51181-33131-000 O RINGO ring |
51181-33131-000 |
from US $3.42 |
||
|
22
|
22
51175-48500-000 SEAT,SPRINGSeat spring; |
51175-48500-000 |
US $5.96 |
||
|
23
|
23
51169-48500-000 RING,STOPPERStopper ring Stopper ring; |
51169-48500-000 |
from US $1.62 |
||
|
24
|
24
51189-48500-000
Cap
|
51189-48500-000 |
— | ||
| replacement | |||||
|
24
|
24
51189-13620-000 CAP,FR FORK |
51189-13620-000 |
US $2.88 |
||
|
25
|
25
51410-48500-291
Stem, steering (black)
Model t |
51410-48500-291 |
— | ||
| replacement | |||||
|
25
|
25
51410-48510-291
STEM,STEERING(BLACK)
Model t |
51410-48510-291 |
— | ||
|
25
|
25
51410-48500-08C
Stem, steering (champagne gold
Stem, steering (champagne gold); Model x |
51410-48500-08C |
— | ||
|
25
|
25
51410-48510-291
STEM,STEERING(BLACK)
Stem, steering (black); Model t:e15,e17 |
51410-48510-291 |
— | ||
|
25
|
25
51410-48510-08C
Stem, steering (champagne gold
Stem, steering (champagne gold); Model x:e15,e17 |
51410-48510-08C |
— | ||
|
25
|
25
51410-48520-291
Stem, steering (black)
Stem, steering (black); Model t:e22,e26 |
51410-48520-291 |
— | ||
|
25
|
25
51410-48520-08C
Stem, steering (champagne gold
Stem, steering (champagne gold); Model x:e22,e26 |
51410-48520-08C |
— | ||
|
26
|
26
51621-33001-000 RACE,STEERING OUTER LWROuter race Outer race; |
51621-33001-000 |
from US $8.98 |
||
|
27
|
27
51311-48500-291
Head, steering stem (black)
Model t |
51311-48500-291 |
— | ||
| replacement | |||||
|
27
|
27
51311-48500-08C
HEAD,STEERING STEM(GOLD)
Model t |
51311-48500-08C |
— | ||
|
27
|
27
51311-48500-08C
HEAD,STEERING STEM(GOLD)
Head, steering stem (champagne gold); Model x |
51311-48500-08C |
— | ||
|
28
|
28
51356-46030-000 WASHER(10.5X30X2.3)Washer |
51356-46030-000 |
US $1.96 |
||
|
29
|
29
51352-46030-000 Bolt |
51352-46030-000 |
from US $9.66 |
||
|
30
|
30
51451-27431-000 BoltBolt |
51451-27431-000 |
from US $2.83 |
||
|
31
|
31
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
31
|
31
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
32
|
32
08322-21108-000
Washer, wheel set
|
08322-21108-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
33
|
33
51455-48500-000
CLIP
|
51455-48500-000 |
— | ||
|
34
|
34
56211-48500-291
Holder, handle (black)
Model t |
56211-48500-291 |
— | ||
| replacement | |||||
|
34
|
34
56211-26505-291
HOLDER,HANDLE
Model t |
56211-26505-291 |
— | ||
|
34
|
34
56211-48500-08C
Holder, handle (champagne gold
Holder, handle (champagne gold); Model x |
56211-48500-08C |
— | ||
|
35
|
35
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
35
|
35
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
36
|
36
09106-08004-000
Bolt
|
09106-08004-000 |
— | ||
| replacement | |||||
|
36
|
36
07130-0835B-000 Bolt |
07130-0835B-000 |
from US $1.44 |
||
|
37
|
37
01107-12458-000
Bolt
|
01107-12458-000 |
— | ||
| replacement | |||||
|
37
|
37
01500-12457-000 Bolt |
01500-12457-000 |
from US $8.33 |
||
|
38
|
38
08321-21128-000 12mm lock washeLock washer |
08321-21128-000 |
US $1.87 |
||
| replacement | |||||
|
38
|
38
08321-01127-000 WASHER,LOCK |
08321-01127-000 |
from US $0.80 |
||
|
39
|
39
08322-11128-000
Washer
|
08322-11128-000 |
— | ||
| replacement | |||||
|
39
|
39
08322-01127-000 WASHERWasher, neutral sw |
08322-01127-000 |
from US $0.96 |
||
|
40
|
40
51455-48510-000
CLIP
|
51455-48510-000 |
— | ||
|
41
|
41
51452-48500-000
CLIP
|
51452-48500-000 |
— | ||
|
42
|
42
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
42
|
42
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
43
|
43
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
43
|
43
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
44
|
44
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
44
|
44
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
45
|
45
01104-12408-000
Bolt locally)
|
01104-12408-000 |
— | ||
| replacement | |||||
|
45
|
45
01500-1240B-000 Bolt |
01500-1240B-000 |
US $21.70 |
||
