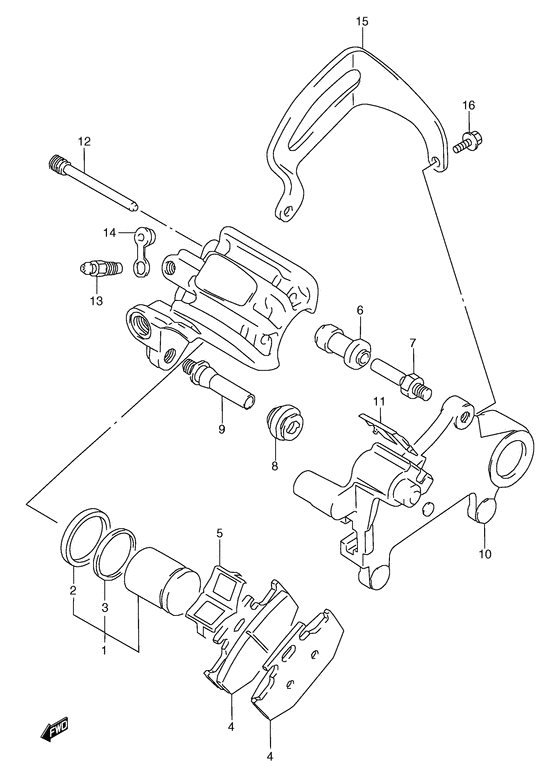

Rear calipers (Model k) Diagram Suzuki TS125
- Year
- 1991
- Model code
- TS125RM(E2) M
- Engine Capacity
- 125
- Model
- TS125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
69100-03D00-000
CALIPER ASSY,RR
|
69100-03D00-000 |
— | ||
|
1
|
1
69100-03810-000 PISTON SET |
69100-03810-000 |
from US $40.30 |
||
|
2
|
2
59107-17C00-000
Seal
|
59107-17C00-000 |
— | ||
| replacement | |||||
|
2
|
2
69100-13810-000 SEAL SET,PISTON |
69100-13810-000 |
from US $7.68 |
||
|
3
|
3
59108-17C00-000
Seal, dust
|
59108-17C00-000 |
— | ||
|
4
|
4
69140-03D00-000
Pad
|
69140-03D00-000 |
— | ||
| replacement | |||||
|
4
|
4
69100-03820-000
PAD SET
|
69100-03820-000 |
— | ||
|
5
|
5
59315-27C00-000 SPRINGSpring, pad |
59315-27C00-000 |
from US $6.59 |
||
|
6
|
6
59386-13A00-000 BOOT |
59386-13A00-000 |
from US $3.65 |
||
|
7
|
7
59382-14500-000 PIN,BOLT |
59382-14500-000 |
from US $3.34 |
||
|
8
|
8
59303-14500-000 BOOTBoot; |
59303-14500-000 |
from US $2.89 |
||
|
9
|
9
59305-27C00-000 PINPin; |
59305-27C00-000 |
from US $8.21 |
||
|
10
|
10
69351-03D00-000
Bracket
|
69351-03D00-000 |
— | ||
|
11
|
11
69113-27C00-000 RETAINER |
69113-27C00-000 |
from US $4.86 |
||
|
12
|
12
59345-14600-000 PIN,HANGER |
59345-14600-000 |
from US $7.52 |
||
|
13
|
13
59121-01A00-000 BLEEDER |
59121-01A00-000 |
US $10.66 |
||
|
14
|
14
59122-01A00-000 CAP,BLEEDER |
59122-01A00-000 |
from US $1.76 |
||
|
15
|
15
69725-27C10-000
Guard, caliper
|
69725-27C10-000 |
— | ||
| replacement | |||||
|
15
|
15
69725-27C20-000
GUARD,RR CALIPER
|
69725-27C20-000 |
— | ||
|
16
|
16
01547-06107-000 BOLT |
01547-06107-000 |
from US $2.33 |
||
