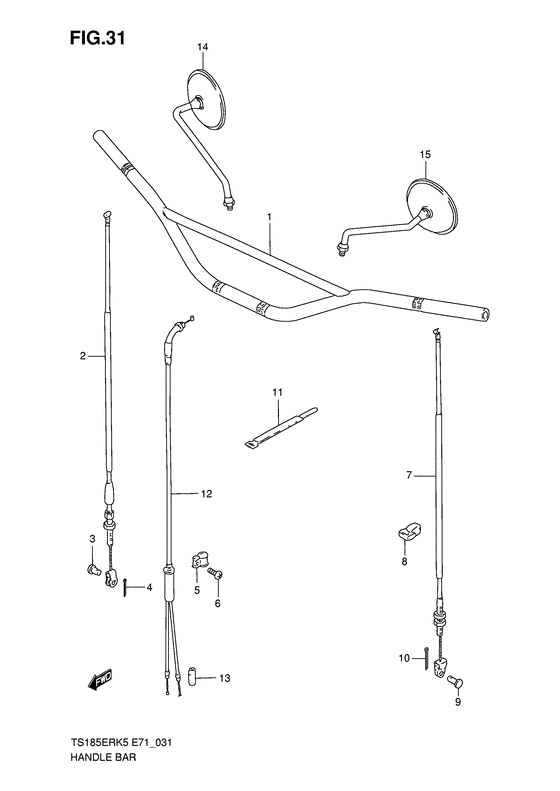

Handlebar Diagram Suzuki TS185
- Year
- 2005
- Model code
- TS185ERK5(E71) K5
- Engine Capacity
- 185
- Model
- TS185
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-29405-13L HANDLEBARHandlebar (silver) Handlebar (silver); |
56110-29405-13L |
US $337.04 |
||
|
2
|
2
58110-29303-000 CABLE,FR BRAKECable, front brake |
58110-29303-000 |
US $46.55 |
||
|
3
|
3
09200-06013-000 PIN(L:13.5)Pin, rear cable pedal side Pin; |
09200-06013-000 |
from US $1.82 |
||
|
4
|
4
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
4
|
4
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
5
|
5
58621-14201-000 CLAMP,FR BRAKE CABLEClamp, front brake cable Guide; |
58621-14201-000 |
from US $2.88 |
||
|
6
|
6
02112-36103-000
Screw
|
02112-36103-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-3610A-000 SCREW |
02112-3610A-000 |
US $0.76 |
||
|
7
|
7
58200-46090-000 CABLE ASSY,CLUTCH |
58200-46090-000 |
from US $19.91 |
||
|
8
|
8
58621-29301-000
GUIDE,CLUTCH CABLE
Guide, clutch cable; |
58621-29301-000 |
— | ||
| replacement | |||||
|
8
|
8
58621-29302-000 Guide,clutch CableGuide, clutch cable; |
58621-29302-000 |
US $4.83 |
||
|
9
|
9
09200-06004-000 PIN(L:13)Pin Pin; |
09200-06004-000 |
from US $1.06 |
||
|
10
|
10
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
10
|
10
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
11
|
11
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:180); |
09407-18402-000 |
from US $1.98 |
||
|
12
|
12
58300-29502-000
Cable assy,throttle
|
58300-29502-000 |
— | ||
| replacement | |||||
|
12
|
12
58300-29503-000 Cable assy, throttle no.1 |
58300-29503-000 |
US $21.17 |
||
|
13
|
13
09287-07002-000
SEAL,DUST(7X18X30)
Dust seal; |
09287-07002-000 |
— | ||
| replacement | |||||
|
13
|
13
09287-07006-000 Seal,dustDust seal; |
09287-07006-000 |
from US $3.15 |
||
|
14
|
14
56500-45012-000
Mirror assy,rh
Mirror assy, rear view rh; |
56500-45012-000 |
— | ||
| replacements | |||||
|
14
|
14
56500-45013-000
MIRROR ASSY,RR VIEW,R
Mirror assy, rear view rh; |
56500-45013-000 |
— | ||
|
14
|
14
56500-45014-000 Mirror Assy,rr View,rMirror assy, rear view rh; |
56500-45014-000 |
from US $61.60 |
||
|
15
|
15
56600-45012-000
Mirror assy,lh
Mirror assy, rear view lh; |
56600-45012-000 |
— | ||
| replacements | |||||
|
15
|
15
56600-45013-000
MIRROR ASSY,RR VIEW,L
Mirror assy, rear view lh; |
56600-45013-000 |
— | ||
|
15
|
15
56600-45014-000 Mirror Assy,rr View,lMirror assy, rear view lh; |
56600-45014-000 |
from US $61.60 |
||
