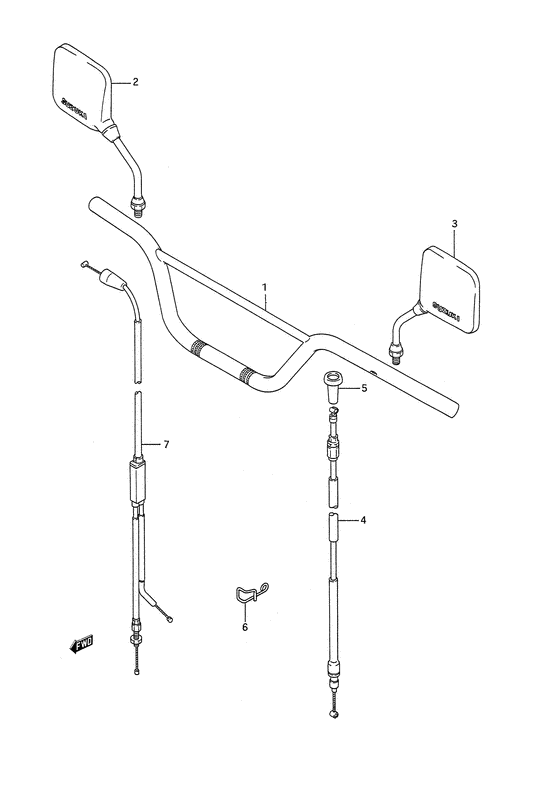

Handlebar Diagram Suzuki TS200
- Year
- 1991
- Model code
- TS200RM(E28) M
- Engine Capacity
- 200
- Model
- TS200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-03D00-291
Handlebar (black)
Handlebar (black); |
56110-03D00-291 |
— | ||
| replacement | |||||
|
1
|
1
56110-03D01-291
HANDLEBAR
Handlebar (black); |
56110-03D01-291 |
— | ||
|
2
|
2
56500-01A50-000
Mirror assy,rear view,rh
|
56500-01A50-000 |
— | ||
| replacement | |||||
|
2
|
2
56500-13A11-000 MIRROR ASSY,RR VIEW,R |
56500-13A11-000 |
from US $206.08 |
||
|
3
|
3
56600-01A50-000
Mirror assy,rear view,lh
|
56600-01A50-000 |
— | ||
| replacement | |||||
|
3
|
3
56600-13A11-000 MIRROR ASSY,RR VIEW,L |
56600-13A11-000 |
from US $206.08 |
||
|
4
|
4
58210-03D01-000 Cable,clutch |
58210-03D01-000 |
US $101.50 |
||
|
5
|
5
58273-31000-000
BOOT,CLUTCH CABLE
Boot, clutch cable; |
58273-31000-000 |
— | ||
| replacement | |||||
|
5
|
5
58273-31001-000 Boot,clutch CableBoot, clutch cable; |
58273-31001-000 |
from US $1.98 |
||
|
6
|
6
58294-03D00-000
GUIDE,CLUTCH CABLE
|
58294-03D00-000 |
— | ||
|
7
|
7
58300-03D10-000
Cable assy, throttle
|
58300-03D10-000 |
— | ||
| replacement | |||||
|
7
|
7
58300-03D11-000
Cable assy,throttle
|
58300-03D11-000 |
— | ||
