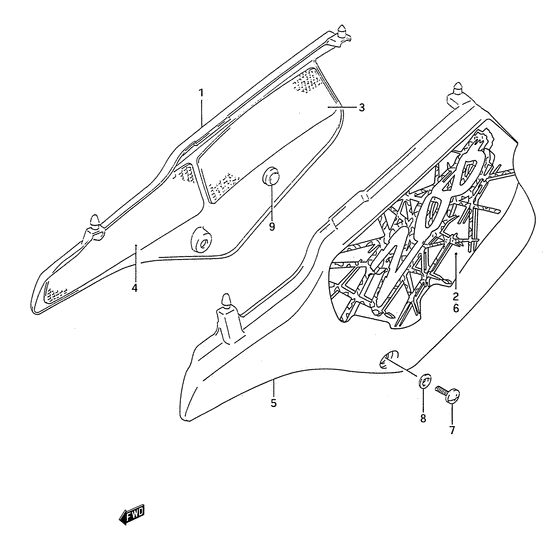

Frame cover (Model p) Diagram Suzuki TS200
- Year
- 1992
- Model code
- TS200RN(E28) N
- Engine Capacity
- 200
- Model
- TS200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47110-08D30-28X
Cover, frame rh (white)
Cover, frame rh (white); For 0nf |
47110-08D30-28X |
— | ||
| replacement | |||||
|
1
|
1
47111-03D01-30H
COVER,FRAME,R(WHITE)
Cover, frame rh (white); For 0nf |
47111-03D01-30H |
— | ||
|
1
|
1
47110-08D30-30H
Cover, frame rh (white)
Cover, frame rh (white); For 25y |
47110-08D30-30H |
— | ||
| replacement | |||||
|
1
|
1
47111-03D01-30H
COVER,FRAME,R(WHITE)
Cover, frame rh (white); For 25y |
47111-03D01-30H |
— | ||
|
2
|
2
68135-03D60-A6M
Tape, rh
For 28x |
68135-03D60-A6M |
— | ||
|
2
|
2
68135-03D60-A4J
Tape, rh
For 30h |
68135-03D60-A4J |
— | ||
|
3
|
3
47166-03D10-000
Shield, frame cover, r
|
47166-03D10-000 |
— | ||
| replacement | |||||
|
3
|
3
47166-03D00-000
HEATSHIELD,FRAME COVER,R
|
47166-03D00-000 |
— | ||
|
4
|
4
47167-08D10-000
Heat shield, frame cover rh
|
47167-08D10-000 |
— | ||
| replacement | |||||
|
4
|
4
47167-08D00-000
Shield, frame cover rh no.2
|
47167-08D00-000 |
— | ||
|
5
|
5
47210-08D30-28X
Cover, frame lh (white)
Cover, frame lh (blue); For 0nf |
47210-08D30-28X |
— | ||
| replacement | |||||
|
5
|
5
47211-03D01-30H
COVER,FRAME,L(WHITE)
Cover, frame lh (blue); For 0nf |
47211-03D01-30H |
— | ||
|
5
|
5
47210-08D30-30H
Cover, frame lh (whige)
Cover, frame lh (yellow); For 25y |
47210-08D30-30H |
— | ||
| replacement | |||||
|
5
|
5
47211-03D01-30H
COVER,FRAME,L(WHITE)
Cover, frame lh (yellow); For 25y |
47211-03D01-30H |
— | ||
|
6
|
6
68145-03D60-A6M
Tape, lh
For 28x |
68145-03D60-A6M |
— | ||
|
6
|
6
68145-03D60-A4J
Tape, lh
For 30h |
68145-03D60-A4J |
— | ||
|
7
|
7
02142-06167-000 SCREWScrew Screw; |
02142-06167-000 |
from US $0.32 |
||
|
8
|
8
09169-06028-000 Washer front feWasher; |
09169-06028-000 |
from US $0.96 |
||
| replacement | |||||
|
8
|
8
09169-06041-000 WASHERWasher; |
09169-06041-000 |
from US $0.76 |
||
|
9
|
9
09321-10018-000 CUSHION |
09321-10018-000 |
from US $2.13 |
||
