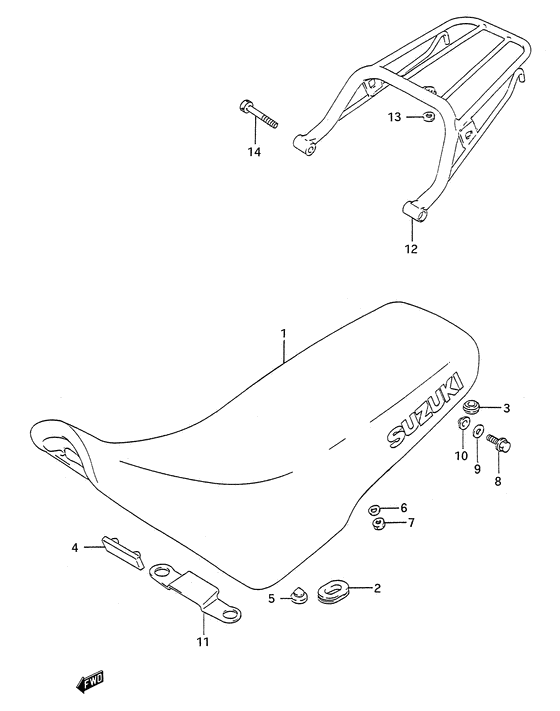

Seat Diagram Suzuki TS200
- Year
- 1992
- Model code
- TS200RN(E28) N
- Engine Capacity
- 200
- Model
- TS200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-03D12-A92
Seat set
Model m |
45100-03D12-A92 |
— | ||
| replacement | |||||
|
1
|
1
45100-03D13-9DD SEAT SETModel m |
45100-03D13-9DD |
US $714.56 |
||
|
1
|
1
45100-03D50-H39
Seat set
Model n for 25y |
45100-03D50-H39 |
— | ||
|
1
|
1
45100-03D50-H41
Seat set
Model n for 0nf |
45100-03D50-H41 |
— | ||
|
1
|
1
45100-03D13-A5K
Seat set
Model p for 25y |
45100-03D13-A5K |
— | ||
|
1
|
1
45100-03D13-9DD SEAT SETModel p for 0nf |
45100-03D13-9DD |
US $714.56 |
||
|
2
|
2
09320-08029-000 CUSHION |
09320-08029-000 |
from US $1.60 |
||
|
3
|
3
09320-09026-000
Cushion box front
|
09320-09026-000 |
— | ||
| replacements | |||||
|
3
|
3
09320-09045-000
CUSHION
|
09320-09045-000 |
— | ||
|
3
|
3
09320-09062-000
New Genuine Part
|
09320-09062-000 |
— | ||
|
4
|
4
09321-08019-000
Cushion
|
09321-08019-000 |
— | ||
| replacement | |||||
|
4
|
4
09321-08009-000 CUSHIONCushion |
09321-08009-000 |
from US $4.88 |
||
|
5
|
5
09329-10001-000 CUSHIONCushion; |
09329-10001-000 |
from US $1.82 |
||
|
6
|
6
08212-06181-000 WASHER |
08212-06181-000 |
US $11.80 |
||
|
7
|
7
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
7
|
7
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
01807-08188-000
Bolt
|
01807-08188-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
9
|
9
09160-08007-000 Seat washerSpacer, swivel bracket Washer (8.7x22x2); |
09160-08007-000 |
US $1.93 |
||
| replacement | |||||
|
9
|
9
09160-08127-000 WASHER(8.5X22X2)Washer, fender front Washer (8.7x22x2); |
09160-08127-000 |
from US $1.12 |
||
|
10
|
10
09169-08034-000 WASHERWasher, rear Model m/n |
09169-08034-000 |
from US $3.25 |
||
|
10
|
10
09169-08036-000 WASHERModel p |
09169-08036-000 |
from US $3.15 |
||
|
11
|
11
45121-03D00-000 PLATE,SEAT FR HOOK |
45121-03D00-000 |
US $5.12 |
||
|
12
|
12
46300-03810-13L
CARRIER SET,SPORT
Carrier set, sports (silver); |
46300-03810-13L |
— | ||
|
13
|
13
09160-08078-000
Washer,8.5x18x3
Washer (8.5x18x3.2); |
09160-08078-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-08122-000 WASHER(8.5X18X3.20)Washer, idle gear shaft no.2 (8.5x18x3.2) Washer (8.5x18x3.2); |
09160-08122-000 |
from US $3.77 |
||
|
14
|
14
07110-08458-000
Bolt
|
07110-08458-000 |
— | ||
| replacement | |||||
|
14
|
14
07130-08457-000 Bolt |
07130-08457-000 |
from US $1.38 |
||
