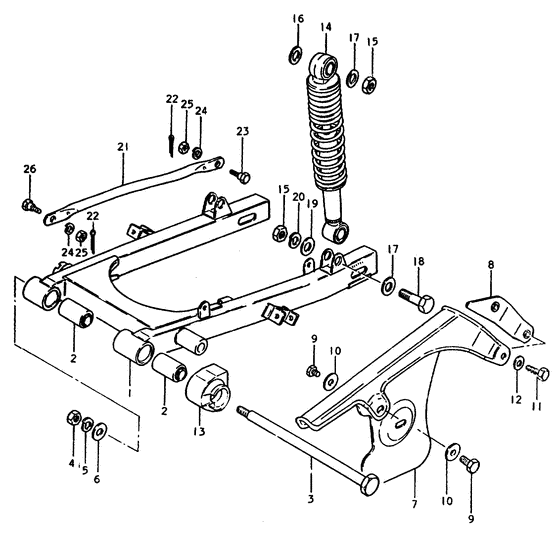

Rear swinging arm Diagram Suzuki TS50
- Year
- 1996
- Model code
- TS50ERPT(T) T
- Engine Capacity
- 50
- Model
- TS50ER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61101-46851-08C
Swinging arm, rear (gold)
Swinging arm, rear (gold); |
61101-46851-08C |
— | ||
|
2
|
2
09319-10024-000 BUSHBushing Bushing; |
09319-10024-000 |
from US $7.15 |
||
|
3
|
3
61211-46000-000 Shaft, pivot |
61211-46000-000 |
US $13.30 |
||
| replacement | |||||
|
3
|
3
61211-4600V-000 SHAFT,RR SWINGINGARM PIVOT |
61211-4600V-000 |
from US $13.54 |
||
|
4
|
4
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
4
|
4
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
5
|
5
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
6
|
6
08322-21108-000
Washer, wheel set
|
08322-21108-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
7
|
7
61311-26501-019
CASE,CHAIN
Case, chain (black); |
61311-26501-019 |
— | ||
|
8
|
8
61380-26500-000
Reinforcement c
|
61380-26500-000 |
— | ||
|
9
|
9
09100-06011-000 BOLT(6X8)Bolt (6x8) |
09100-06011-000 |
from US $1.60 |
||
|
10
|
10
09169-06010-000 WASHERWasher, inner Washer; |
09169-06010-000 |
from US $1.98 |
||
|
11
|
11
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
12
|
12
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
13
|
13
61273-26500-000
Buffer
|
61273-26500-000 |
— | ||
| replacement | |||||
|
13
|
13
61273-26501-000 BUFFER,CHAIN TOUCH DEFENSE |
61273-26501-000 |
US $70.40 |
||
|
14
|
14
62100-26500-000
Shock absorber, rear
Shock absorber, rear; |
62100-26500-000 |
— | ||
|
14
|
14
62100-26511-000
Shock absorber, rear
Te50erpdtts50erpt e25 |
62100-26511-000 |
— | ||
|
15
|
15
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
15
|
15
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
16
|
16
08322-11128-000
Washer
|
08322-11128-000 |
— | ||
| replacement | |||||
|
16
|
16
08322-01127-000 WASHERWasher, neutral sw |
08322-01127-000 |
from US $0.80 |
||
|
17
|
17
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
18
|
18
09104-10002-000 BOLT(10X36)Bolt |
09104-10002-000 |
from US $5.68 |
||
|
19
|
19
08322-11108-000
Washer
|
08322-11108-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
20
|
20
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
21
|
21
64311-26500-08C
Torque link, rear (gold)
Torque link, rear (gold); |
64311-26500-08C |
— | ||
|
22
|
22
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
22
|
22
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
23
|
23
09111-08013-000 BOLT(8X26.5)Bolt, rear (8x26.5) Bolt, torque link rear; |
09111-08013-000 |
from US $1.67 |
||
|
24
|
24
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
25
|
25
09140-08008-000 NUTNut |
09140-08008-000 |
from US $0.91 |
||
|
26
|
26
09111-08015-000 BOLT(8X22)Bolt, front (8x22) Bolt, torque link front; |
09111-08015-000 |
from US $1.61 |
||
