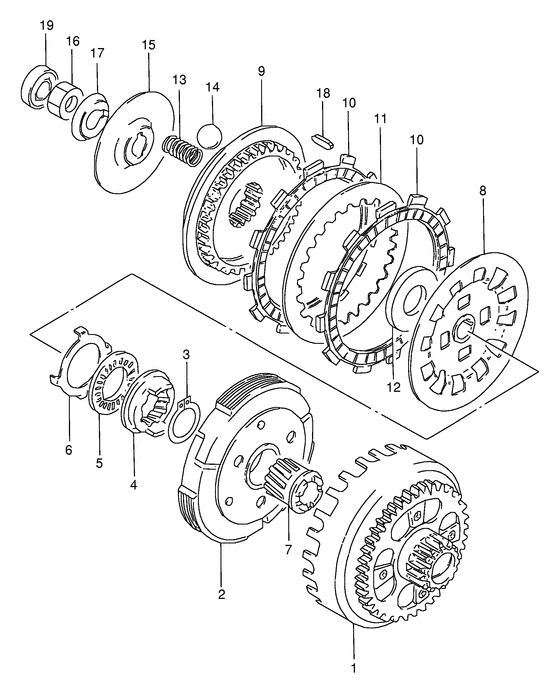

Clutch Diagram Suzuki TS50
- Year
- 1994
- Model code
- TS50XAR(E4) R
- Engine Capacity
- 50
- Model
- TS50X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-46502-000
Gear assy, primary driven
Nt:56/17 |
21200-46502-000 |
— | ||
|
2
|
2
21502-46503-000
Clutch assy, 2nd
|
21502-46503-000 |
— | ||
|
3
|
3
09380-24003-000
Circlip
|
09380-24003-000 |
— | ||
|
4
|
4
22521-46501-000
Guide
|
22521-46501-000 |
— | ||
| replacement | |||||
|
4
|
4
22521-46502-000
GUIDE,2ND CLUTCH ASSY
|
22521-46502-000 |
— | ||
|
5
|
5
09263-30014-000
BEARING(30X47X2)
Thrust bearing; |
09263-30014-000 |
— | ||
|
6
|
6
22531-46501-000
RETAINER,2ND CLUTCH BEARING
|
22531-46501-000 |
— | ||
|
7
|
7
22511-46500-000
Spacer
|
22511-46500-000 |
— | ||
|
8
|
8
22540-46501-000
PLATE,CLUTCH SLEEVE HUB
|
22540-46501-000 |
— | ||
|
9
|
9
21411-46501-000
Hub, 3rd clutch
Nt:30 |
21411-46501-000 |
— | ||
|
10
|
10
21441-13A01-000 PLATE,CLUTCH DRIVE(T:3.0)Plate, drive; |
21441-13A01-000 |
from US $11.70 |
||
|
11
|
11
21451-01400-000
PLATE,CLUTCH DRIVEN NO.2
Plate, driven; |
21451-01400-000 |
— | ||
|
12
|
12
09160-30029-000
WASHER(30X55X1.2)
|
09160-30029-000 |
— | ||
|
13
|
13
21481-46500-000
Spring, return
Spring, return; |
21481-46500-000 |
— | ||
|
14
|
14
06111-15004-000 BALL |
06111-15004-000 |
from US $2.01 |
||
|
15
|
15
21465-46500-000
Plate, ball
|
21465-46500-000 |
— | ||
|
16
|
16
09140-14002-000 NUTNut |
09140-14002-000 |
from US $4.64 |
||
|
17
|
17
09169-14004-000
Lock washer
|
09169-14004-000 |
— | ||
|
18
|
18
09421-03004-000
KEY
|
09421-03004-000 |
— | ||
|
19
|
19
09319-12013-000 BUSHBushing Bush, rh; |
09319-12013-000 |
US $74.30 |
||
