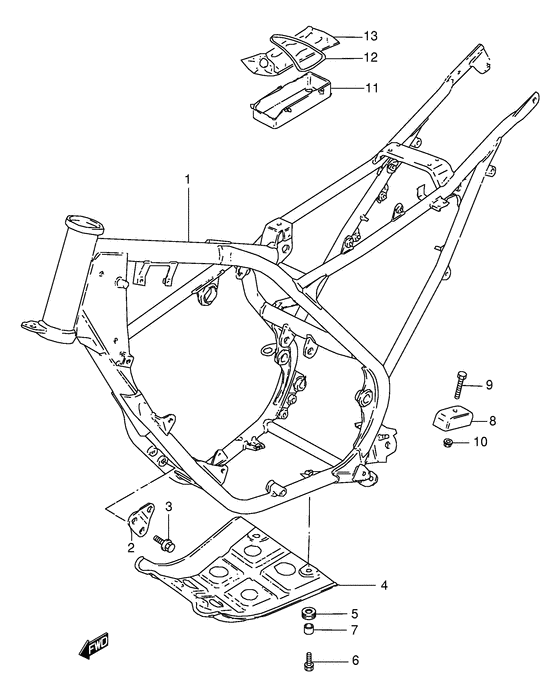

Frame Diagram Suzuki TS50
- Year
- 1994
- Model code
- TS50XAR(E4) R
- Engine Capacity
- 50
- Model
- TS50X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-13750-19F
Frame (blue)
Frame (blue); Model m |
41100-13750-19F |
— | ||
|
1
|
1
41100-13750-24K
Frame (charcoal)
Frame (charcoal); Model r |
41100-13750-24K |
— | ||
|
2
|
2
41911-13750-126
Plate, engine mounting
Plate, engine mounting (silver); |
41911-13750-126 |
— | ||
|
3
|
3
01517-08165-000
Bolt, side
Model m |
01517-08165-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0816B-000 BOLTModel m |
01550-0816B-000 |
from US $0.91 |
||
|
3
|
3
01550-0816A-000 BOLTBolt, rear Model m |
01550-0816A-000 |
from US $0.91 |
||
|
3
|
3
01550-08163-000
Bolt, holder
Model r |
01550-08163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0816B-000 BOLTModel r |
01550-0816B-000 |
from US $0.91 |
||
|
3
|
3
01550-0816A-000 BOLTBolt, rear Model r |
01550-0816A-000 |
from US $0.91 |
||
|
4
|
4
42511-13750-000
Protector, engine
|
42511-13750-000 |
— | ||
|
5
|
5
09320-08030-000 CUSHION |
09320-08030-000 |
from US $4.18 |
||
|
6
|
6
09116-06130-000 BOLT(6X16)Bolt, air cleaner front |
09116-06130-000 |
from US $3.32 |
||
|
7
|
7
09180-06109-000
Spacer (6x9x5.1)
|
09180-06109-000 |
— | ||
| replacement | |||||
|
7
|
7
09180-06306-000 SPACER(6.5X9X5) |
09180-06306-000 |
from US $3.21 |
||
|
8
|
8
43912-13700-000
Guide, chain control
|
43912-13700-000 |
— | ||
|
9
|
9
01500-06207-000 BOLTModel m |
01500-06207-000 |
from US $0.76 |
||
|
9
|
9
01550-06203-000
Bolt
Model r |
01550-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0620B-000 BOLTBolt, inspection cap Model r |
01550-0620B-000 |
from US $0.76 |
||
|
10
|
10
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
11
|
11
41551-13601-000
Holder, tool
|
41551-13601-000 |
— | ||
|
12
|
12
09280-70004-000 O RING(D:3.53,ID:69.44)O ring; |
09280-70004-000 |
from US $2.08 |
||
|
13
|
13
09800-00283-000
Tool assy
|
09800-00283-000 |
— | ||
| replacements | |||||
|
13
|
13
09800-21026-000
TOOL ASSY
|
09800-21026-000 |
— | ||
|
13
|
13
09800-21080-000 Tool Assy |
09800-21080-000 |
from US $41.79 |
||
