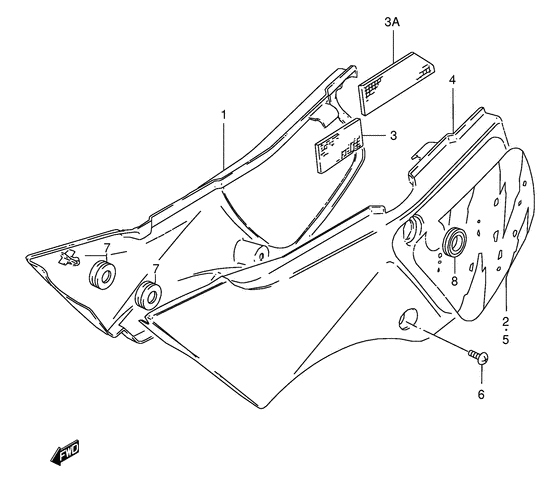

Frame cover Diagram Suzuki TS50
- Year
- 1994
- Model code
- TS50XAR(E4) R
- Engine Capacity
- 50
- Model
- TS50X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-13700-14L
Cover, frame rh (white)
Cover, frame rh (white); Model m |
47111-13700-14L |
— | ||
|
1
|
1
47111-13700-21C
Cover, frame rh (black)
Cover, frame rh (black); Model m |
47111-13700-21C |
— | ||
|
1
|
1
47111-13700-25Y
COVER,FRAME,R(YELLOW)
Cover, frame rh (yellow); Model m |
47111-13700-25Y |
— | ||
|
1
|
1
47111-13700-0NF
COVER,FRAME,R(BLUE)
Cover, frame rh (blue); Model r |
47111-13700-0NF |
— | ||
|
2
|
2
68135-13600-1DY
Tape, frame cover rh
Model m for 14l |
68135-13600-1DY |
— | ||
|
2
|
2
68135-13600-1GJ
TAPE,FRAME COVER,R
Model m for 21c |
68135-13600-1GJ |
— | ||
|
2
|
2
68135-13600-1DV
Tape, frame cover rh
Model m for 25y |
68135-13600-1DV |
— | ||
|
2
|
2
68135-13710-B7L
Tape, frame cover rh
Model r for 21c |
68135-13710-B7L |
— | ||
|
2
|
2
68135-13710-B7M
Tape, frame cover rh
Model r for 0nf |
68135-13710-B7M |
— | ||
|
3
|
3
47122-20410-000
Shield, heat rh
Model m |
47122-20410-000 |
— | ||
| replacement | |||||
|
3
|
3
47167-28C10-000
SHIELD,FRAME COVER,R HEAT NO.2
Model m |
47167-28C10-000 |
— | ||
|
3A
|
3A
47122-13700-000
Shield, heat rh
Model r |
47122-13700-000 |
— | ||
| replacement | |||||
|
3A
|
3A
47166-12D00-000
HEATSHIELD,LWR,R
Model r |
47166-12D00-000 |
— | ||
|
4
|
4
47211-13700-14L
Cover, frame lh (white)
Cover, frame lh (white); Model m |
47211-13700-14L |
— | ||
|
4
|
4
47211-13700-21C
Cover, frame lh (black)
Cover, frame lh (black); Model m |
47211-13700-21C |
— | ||
|
4
|
4
47211-13700-25Y
Cover, frame lh (yellow)
Cover, frame lh (yellow); Model m |
47211-13700-25Y |
— | ||
|
4
|
4
47211-13700-0NF
COVER,FRAME,L(BLUE)
Cover, frame lh (blue); Model r |
47211-13700-0NF |
— | ||
|
5
|
5
68145-13600-1DY
Tape, frame cover lh
Model m for 14l |
68145-13600-1DY |
— | ||
|
5
|
5
68145-13600-1GJ
Tape, frame cover lh
Model m for 21c |
68145-13600-1GJ |
— | ||
|
5
|
5
68145-13600-1DV
Tape, frame cover lh
Model m for 25y |
68145-13600-1DV |
— | ||
|
5
|
5
68145-13710-B7L
Tape, frame cover lh
Model r for 21c |
68145-13710-B7L |
— | ||
|
5
|
5
68145-13710-B7M
Tape, frame cover lh
Model r for 0nf |
68145-13710-B7M |
— | ||
|
6
|
6
09136-06002-000 SCREW(6X12) |
09136-06002-000 |
from US $0.70 |
||
|
7
|
7
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $1.49 |
||
|
8
|
8
45522-04700-000
GROMMET,SEAT LOCK HOLE
|
45522-04700-000 |
— | ||
