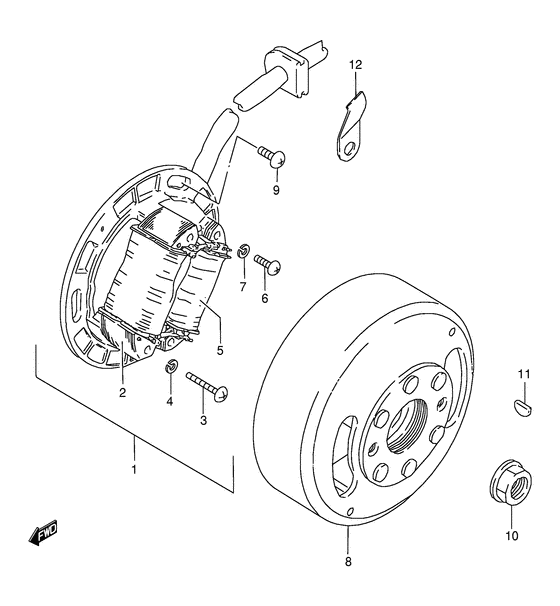

Magneto Diagram Suzuki TS50
- Year
- 1994
- Model code
- TS50XAR(E4) R
- Engine Capacity
- 50
- Model
- TS50X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-34B00-000
Stator assy
|
32101-34B00-000 |
— | ||
|
2
|
2
32120-34B00-000
COIL,LIGHTING
|
32120-34B00-000 |
— | ||
|
3
|
3
09125-04019-000
Screw
|
09125-04019-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-04023-000 SCREW(4X30)Screw (4x30) |
09125-04023-000 |
from US $3.15 |
||
|
4
|
4
08321-21047-000
Lock washer
Model m |
08321-21047-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0104A-000 WASHER,LOCKModel m |
08321-0104A-000 |
from US $0.80 |
||
|
4
|
4
08321-01043-000
Lock washer
Model r |
08321-01043-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0104A-000 WASHER,LOCKModel r |
08321-0104A-000 |
from US $0.80 |
||
|
5
|
5
32140-35410-000 COIL,PRIMARYCoil, primary Coil, primary; |
32140-35410-000 |
from US $25.60 |
||
|
6
|
6
02112-04167-000
Screw 4x16
Model m |
02112-04167-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0416A-000 SCREWModel m |
02112-0416A-000 |
from US $0.68 |
||
|
6
|
6
02112-04163-000
Screw
Model r |
02112-04163-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0416A-000 SCREWModel r |
02112-0416A-000 |
from US $0.68 |
||
|
7
|
7
08321-21047-000
Lock washer
Model m |
08321-21047-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0104A-000 WASHER,LOCKModel m |
08321-0104A-000 |
from US $0.80 |
||
|
7
|
7
08321-01043-000
Lock washer
Model r |
08321-01043-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0104A-000 WASHER,LOCKModel r |
08321-0104A-000 |
from US $0.80 |
||
|
8
|
8
32102-34B00-000
Rotor, flywheel
|
32102-34B00-000 |
— | ||
|
9
|
9
02142-05128-000
Screw
Model m |
02142-05128-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-05127-000 SCREWModel m |
02142-05127-000 |
from US $0.80 |
||
|
9
|
9
02142-05123-000
Screw 5x12
Screw; Model r |
02142-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0512A-000 SCREWScrew, lower Screw; Model r |
02142-0512A-000 |
from US $0.80 |
||
|
10
|
10
08316-10107-000 NUTModel m |
08316-10107-000 |
from US $3.77 |
||
|
10
|
10
08316-10103-000
Nut
Model r |
08316-10103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUTModel r |
08316-1010B-000 |
from US $0.80 |
||
|
11
|
11
08341-31039-000 KEYKey; |
08341-31039-000 |
from US $1.60 |
||
|
12
|
12
32371-26400-000
Clamp, lead wire
|
32371-26400-000 |
— | ||
