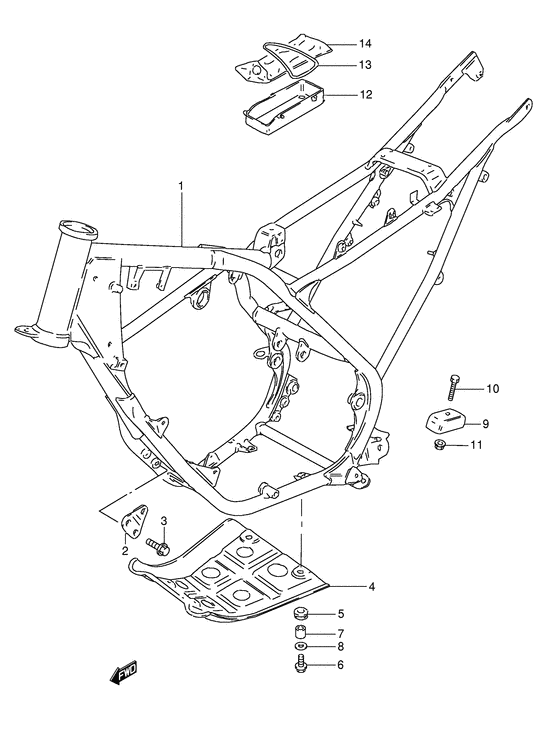

Frame (Model e/g) Diagram Suzuki TS50
- Year
- 1984
- Model code
- TS50XKE(E1) E
- Engine Capacity
- 50
- Model
- TS50X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-13614-019
Frame (black)
Frame (black); E21,model e e2, for 14c,08y |
41100-13614-019 |
— | ||
|
1
|
1
41100-13614-19F
Frame (blue)
Frame (blue); E21,model e e2, for 21c,163 |
41100-13614-19F |
— | ||
|
1
|
1
41100-13624-019
Frame (black)
Frame (black); E16,e18,model g e2, for 14c,08y |
41100-13624-019 |
— | ||
|
1
|
1
41100-13624-19F
Frame (blue)
Frame (blue); E16,e18,model g e2, for 21c,163 |
41100-13624-19F |
— | ||
|
1
|
1
41100-34B00-19F
Frame (blue)
Frame (blue); Model g e25 |
41100-34B00-19F |
— | ||
|
2
|
2
41991-13600-019
Plate, engine mount (black)
Plate, engine mount (black); |
41991-13600-019 |
— | ||
|
2
|
2
41991-13600-126
Plate, engine mount (pearl)
Plate, engine mount (pearl); |
41991-13600-126 |
— | ||
| replacement | |||||
|
2
|
2
41991-13600-019
Plate, engine mount (black)
Plate, engine mount (pearl); |
41991-13600-019 |
— | ||
|
3
|
3
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
3
|
3
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.81 |
||
|
4
|
4
42511-13750-000
Protector, engine
|
42511-13750-000 |
— | ||
|
5
|
5
09320-08030-000 CUSHION |
09320-08030-000 |
from US $2.38 |
||
|
6
|
6
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
6
|
6
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.80 |
||
|
7
|
7
09180-06306-000 SPACER(6.5X9X5) |
09180-06306-000 |
from US $2.85 |
||
|
8
|
8
09160-06056-000 WASHER(6.5X18X1)Washer; |
09160-06056-000 |
from US $0.77 |
||
|
9
|
9
43912-13700-000
Guide, chain control
|
43912-13700-000 |
— | ||
|
10
|
10
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
11
|
11
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
12
|
12
41551-13601-000
Holder, tool
|
41551-13601-000 |
— | ||
|
13
|
13
09280-70004-000 O RING(D:3.53,ID:69.44)O ring; |
09280-70004-000 |
from US $1.98 |
||
|
14
|
14
09800-21026-000
TOOL ASSY
|
09800-21026-000 |
— | ||
| replacement | |||||
|
14
|
14
09800-21080-000 Tool Assy |
09800-21080-000 |
from US $36.40 |
||
