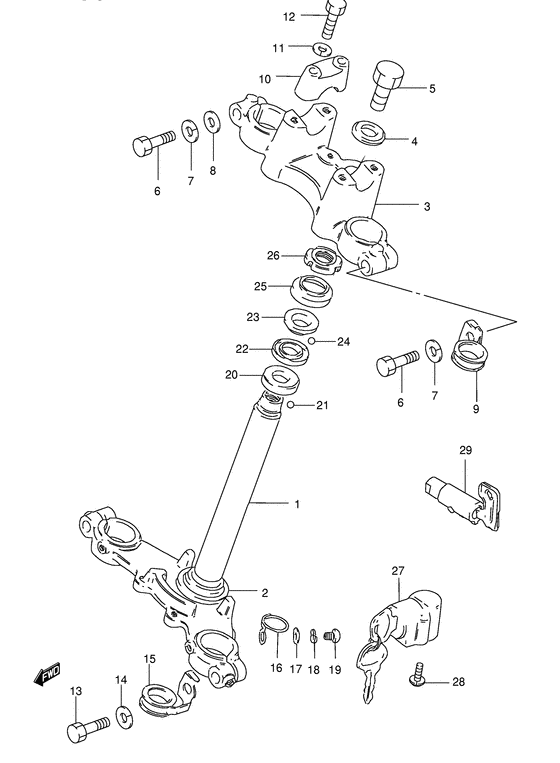

Steering stem Diagram Suzuki TS50
- Year
- 1984
- Model code
- TS50XKE(E1) E
- Engine Capacity
- 50
- Model
- TS50X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-13631-126
STEM,STEERING
Stem, steering (pearl); |
51410-13631-126 |
— | ||
|
1
|
1
51410-13650-126
Stem, steering (pearl)
Stem, steering (pearl); Model r e4,e15,e22 |
51410-13650-126 |
— | ||
|
2
|
2
51621-33001-000 RACE,STEERING OUTER LWROuter race Race, steering, outer lower; |
51621-33001-000 |
from US $8.16 |
||
|
3
|
3
51311-13620-126
HEAD,STEERING STEM
Stem head, steering (pearl); |
51311-13620-126 |
— | ||
|
4
|
4
51356-22012-000 WASHER,STEM HEAD(10.5X30X3.2)Washer Washer, stem head,upper; Model e/g/h/j/m |
51356-22012-000 |
from US $3.57 |
||
|
4
|
4
09160-10501-000 WASHER(10.5X30X2.3)Washer, upper, outer Washer, stem head,upper; Model r |
09160-10501-000 |
from US $1.08 |
||
|
5
|
5
51352-13600-000 BOLT,SHAFT |
51352-13600-000 |
US $9.83 |
||
|
6
|
6
51451-27431-000 BOLTBolt Model e/g/h/j/m |
51451-27431-000 |
from US $2.83 |
||
|
6
|
6
01550-10357-000 BoltModel r |
01550-10357-000 |
from US $3.62 |
||
|
7
|
7
08321-01107-000 WASHER,LOCKLock washer Model e/g/h/j/m |
08321-01107-000 |
from US $0.80 |
||
|
8
|
8
08322-01107-000 WASHERWasher, throttle drum Model e/g/h/j/m |
08322-01107-000 |
from US $0.80 |
||
|
9
|
9
51455-13600-000
CLIP
|
51455-13600-000 |
— | ||
|
10
|
10
56211-13620-126
HOLDER,HANDLEBAR
Holder, handle (pearl); |
56211-13620-126 |
— | ||
|
11
|
11
08321-01087-000 WASHER,LOCKWasher, lock Model e/g/h/j/m |
08321-01087-000 |
from US $0.76 |
||
|
12
|
12
01500-08353-000
Bolt
Model e/g/h/j/m |
01500-08353-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0835B-000 BOLTBolt, muffler support Model e/g/h/j/m |
01500-0835B-000 |
from US $0.96 |
||
|
12
|
12
01550-08357-000 BOLTModel r |
01550-08357-000 |
from US $1.12 |
||
|
13
|
13
01107-10358-000
Bolt hexagon 10
Model e/g/h/j/m |
01107-10358-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-1035B-000 BOLTModel e/g/h/j/m |
01500-1035B-000 |
from US $2.94 |
||
|
13
|
13
01550-10357-000 BoltModel r |
01550-10357-000 |
from US $3.62 |
||
|
14
|
14
08321-01107-000 WASHER,LOCKLock washer Model e/g/h/j/m |
08321-01107-000 |
from US $0.80 |
||
|
15
|
15
51452-13600-000
Clip
|
51452-13600-000 |
— | ||
|
16
|
16
51452-48500-000
CLIP
|
51452-48500-000 |
— | ||
|
17
|
17
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
18
|
18
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
19
|
19
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
20
|
20
51611-33002-000 RACE,STEERING INNER LWRRace, inner lower Race, steering inner lower; |
51611-33002-000 |
from US $8.16 |
||
|
21
|
21
06111-08003-000 BALLSteel ball lower Ball, lower; |
06111-08003-000 |
from US $0.77 |
||
|
22
|
22
51611-20002-000 RACE,STEERING INNER UPRRace, inner Race, steering inner upper; |
51611-20002-000 |
from US $6.40 |
||
|
23
|
23
51621-28000-000 RACE,STEERING OUTER UPRRace, outer upper Race, steering outer upper; |
51621-28000-000 |
from US $6.40 |
||
|
24
|
24
06111-06003-000 BALLBall, upper; |
06111-06003-000 |
from US $0.80 |
||
|
25
|
25
51643-25001-000 DUST SEAL,STEERING UPRSeal, dust |
51643-25001-000 |
from US $2.24 |
||
|
26
|
26
51631-28000-000 NUT,STEERING STEM(25X44X10)Nut, stem Nut, steering stem; |
51631-28000-000 |
from US $8.80 |
||
|
27
|
27
51910-25311-000 LOCK ASSY,STEERINGLock assy, steering |
51910-25311-000 |
from US $24.32 |
||
|
28
|
28
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.70 |
||
|
29
|
29
51900-30901-000
LOCK ASSY,STEERING(NEIMAN)
Model m e17,e22, model r e4,e15,e22 |
51900-30901-000 |
— | ||
| replacement | |||||
|
29
|
29
51900-309V0-000 LOCK SET,STEERINGModel m e17,e22, model r e4,e15,e22 |
51900-309V0-000 |
from US $108.62 |
||
